Page 43
EN
43

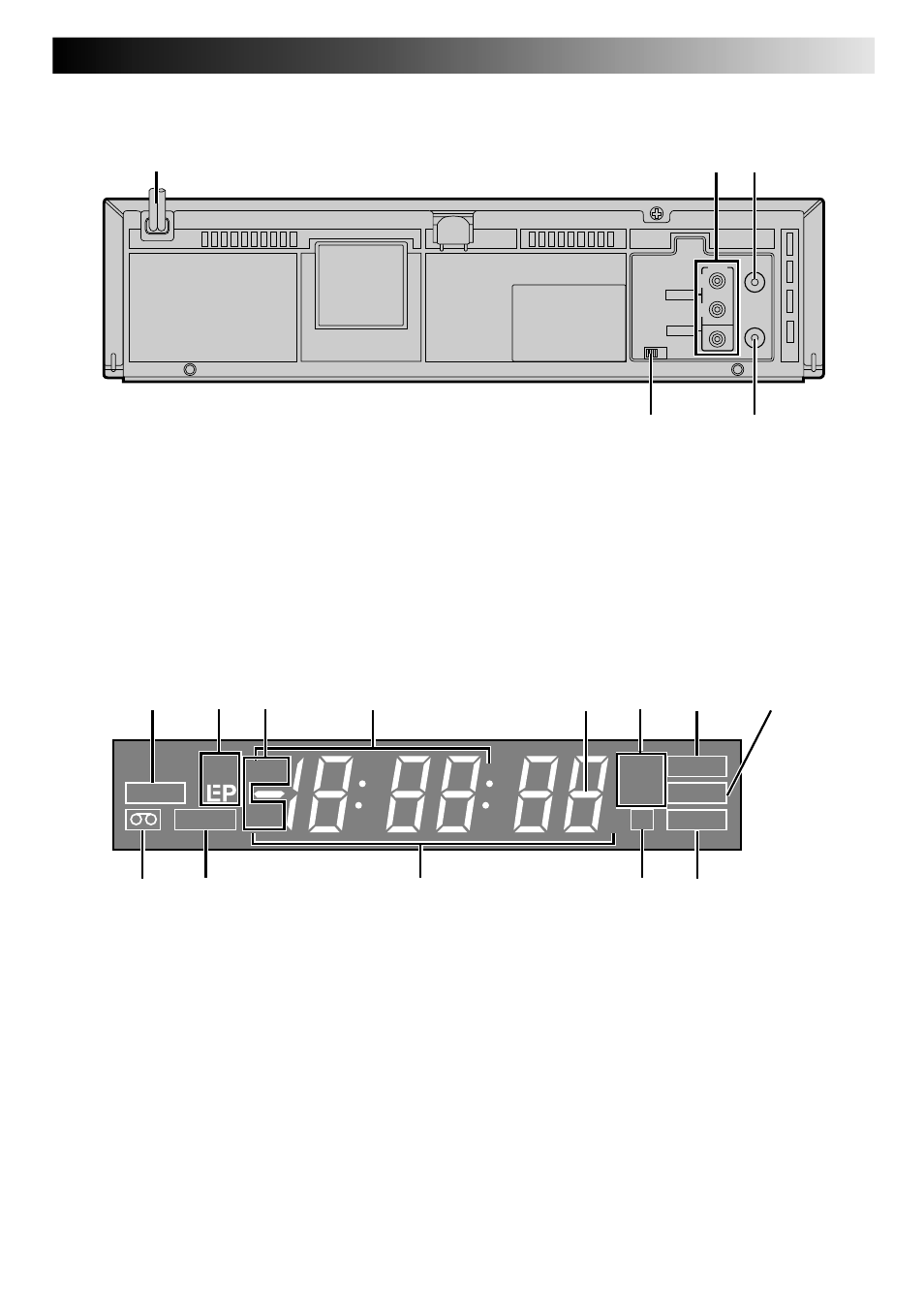

REAR VIEW
FRONT DISPLAY PANEL
ANT. IN
RF OUT
CH3 CH4
OUT
R
L
AUDIO
VIDEO
1
2
4
5
3
1 VCR Mode Indicator (
੬
pg. 26)
2 Tape Speed Indicators (
੬
pg. 16)
3 AM/PM Indicators (
੬
pg. 7)
4 Clock Display (
੬
pg. 7)
5 Child Lock Indicator (
੬
pg. 37)
6 Multi-Channel TV Sound Indicators (
੬
pg. 27)
[HR-J643U Only]
7 Recording Mode Indicator (
੬
pg. 16)
Instant Timer Recording Indicator (
੬
pg. 32)
H
M
S
AM
PM
V C R
TIMER
SP
ST
SAP
R E C
PLAY
PAUSE
M
0
@
#
9
!
2
4
6
7
5
8
1
3
1 Power Cord (
੬
pg. 6)
2 VIDEO/AUDIO Output Connectors (
੬
pg. 33)
* The HR-J443U has only one AUDIO output connector.
3 ANT. IN Connector (
੬
pg. 6)
4 Channel 3/4 Switch (
੬
pg. 6)
5 RF OUT Connector (
੬
pg. 6)
8 Play Mode Indicator
9 “Cassette Loaded” Mark
0 Timer Mode Indicator
! Channel Display [“AU” for AUX mode]
Counter Display (
੬
pg. 15)
@ Counter Memory Mark (
੬
pg. 23)
# Pause Mode Indicator
