Capella® 60” Corner Pure Air II™ Bath
Model: BE60
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
BE60 Capella® 60” Corner Pure Air II™
Bath Right Hand
• Center Drain Location
• Accessories / Hardware:
Trim Kit Rotary: #BN21
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 60” W x 20-1/2” H
(1524 mm) L x (1524 mm) W x (521 mm) H
Drain/Overflow
A: 18” (457 mm) B: 12-1/8” (308 mm)
Cutout
See Illustration Below
Total Weight
1197 lb (543 kg) / 55.8 lb/sq. ft. (272 kg/m 2 )
Operating Gallonage
73 U.S. Gal. (276 Liters),
Min. 55 U.S. Gal. (208 Liters)
Max. 90 U.S. Gal. (341 Liters)
Product Weight
150 lb (80 kg)
Skirt Mounting
Optional
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
Heater
No water heater is available on this unit. Blower has integral air heater.
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"*
33-1/2"
Blower
Service
Access
Opt.
Service
Access
90˚
90˚
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
2"
(50,8 mm)
20-3/4"
FRONT VIEW SIDE VIEW
(Blower)
#FQ86 12/06
DRAIN/OVERFLOW
A
B

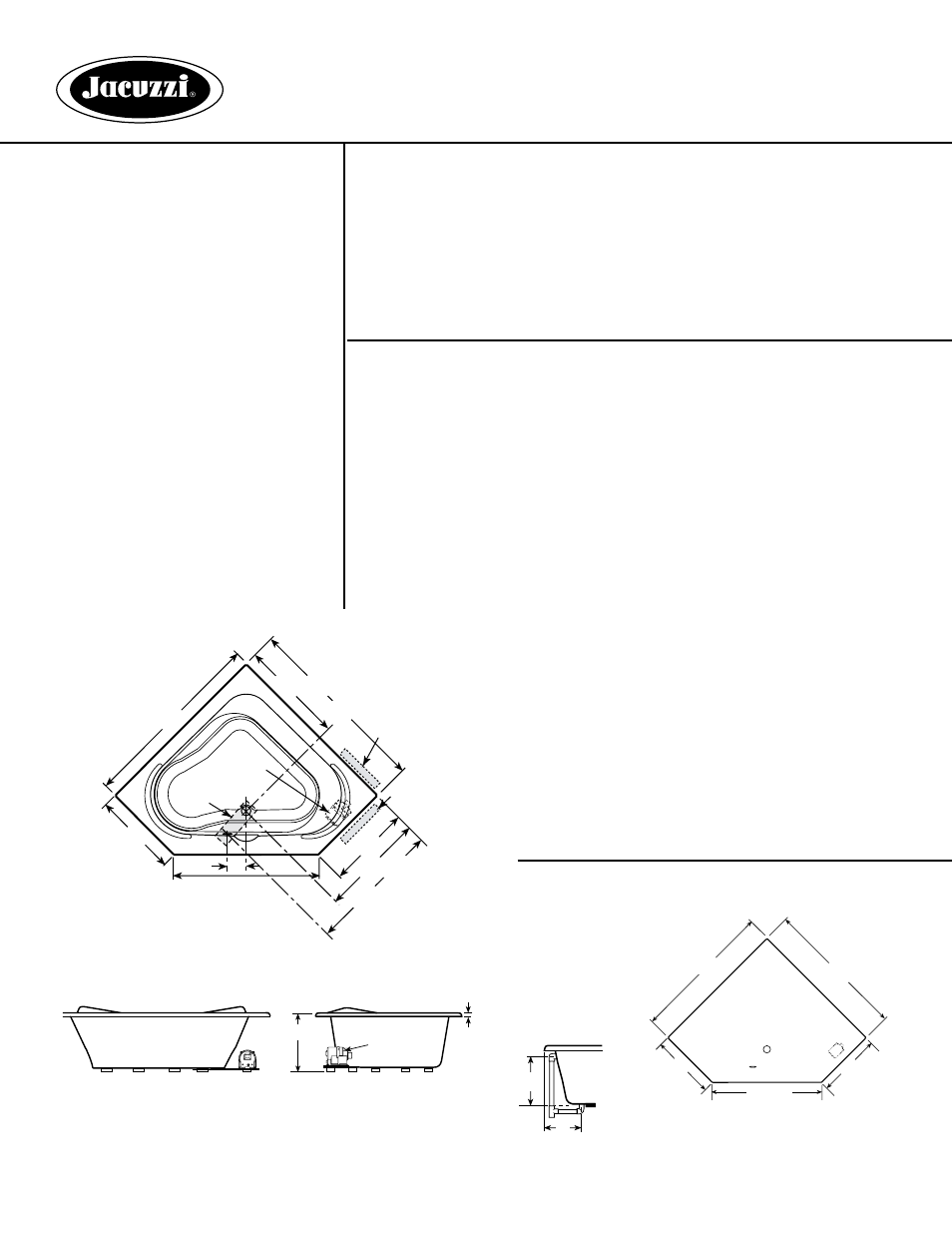

Product Shown: Capella® 60” Pure Air II™ Bath Right Hand Shown Model: BE60
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
25-1/2"
58"
58"
25-1/2"
45-9/16"
Drain
Overflow
Blower
CUTOUT
