Real® Whirlpool Bath
Model: EH85
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
EH85 Real™ Whirlpool Bath
Right Hand
• Center Drain Location
• Accessories / Hardware:
Rotary Drain Kit, 30” Cable #K606
Trim Kit: 2 BMH Jet Rings #J869
2 X Trim Kit: 2 Neck Jet Rings #P556
Trim Kit: 4 HTA Jet Rings, 3 Control Panel
overlays #P205
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifications
Dimensions
72” L x 42” W x 23” H
(1829 mm) L x (1067 mm) W x (584 mm) H
Drain/Overflow
A: 20 “ (508 mm) B: 14” (356 mm)
Cutout
70” x 40”
Total Weight
1130 lb (513 kg) / 54 lb/sq. ft. (264 kg/m 2 )
Operating Gallonage
90 U.S. Gal. (341 Liters)
Product Weight
130 lb (59 kg)
Skirt Mounting
Not Available
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 20 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
† Add 1/4” to this dimension when roughing-in for 3-wall niche.
10-1/2"
36"
14"
5-1/4"
42"
72"
3"
18" x 4"*
Motor
Opt. Service
Access
12" H x 18"
L
Service Access
Heater
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
END VIEW
H
W
SIDE VIEW
L
2"
(Motor)
(Heater)
REÁL™, Right Hand
(51 mm)
MAX. 1/2"
#FS09 12/06
DRAIN/OVERFLOW
A
B

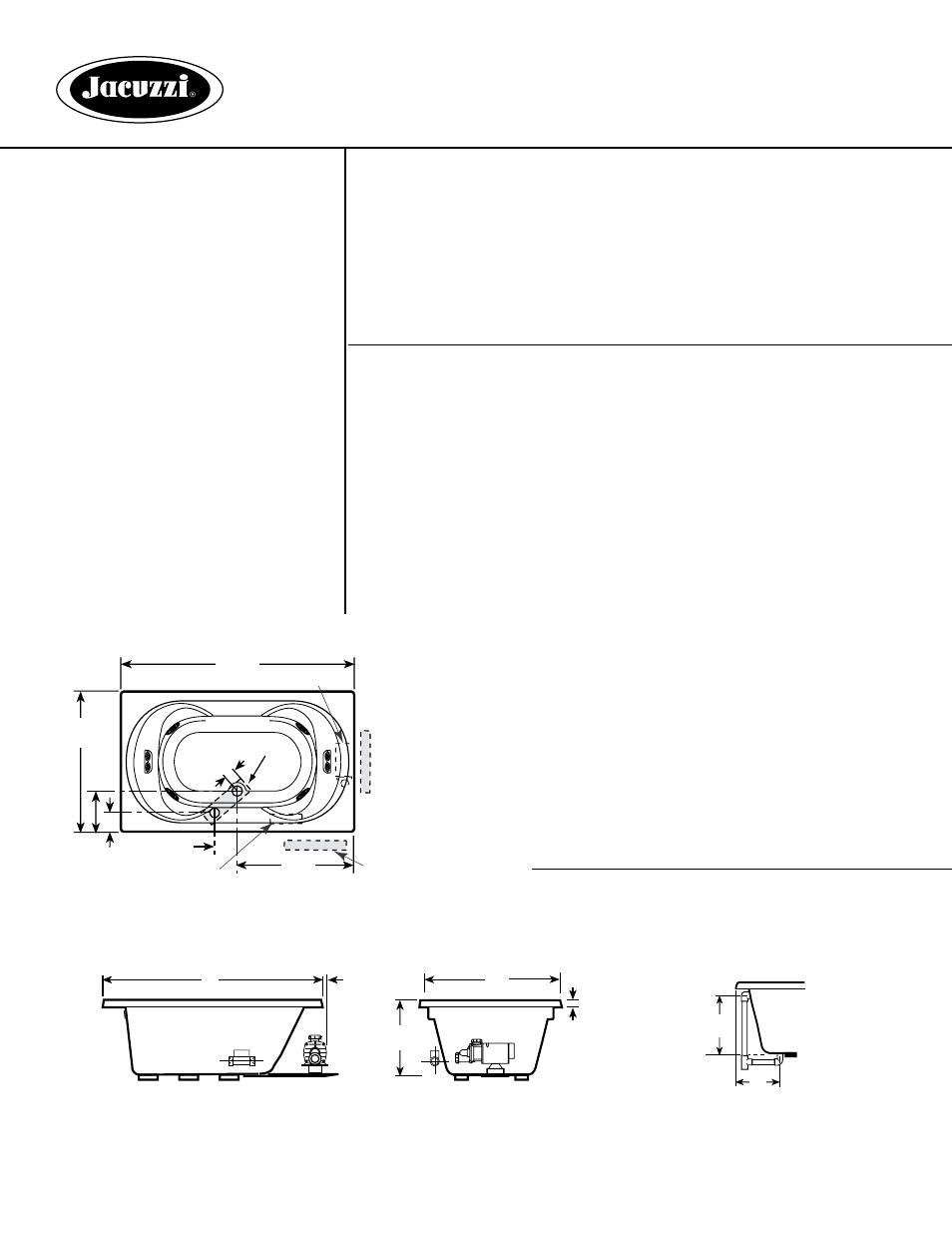

Product Shown: Real™Whirlpool Bath Right Hand Shown Model: EH85
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
