Riva
®
5
WhiRlpool plus Bath
technical specifications
Dimensions
62” L x 43” W x 19” H
(1575 mm) L x (1092 mm) W x (483 mm) H
DRain/oveRfloW
A: 14-3/4” (375 mm) B: 9-1/2” (241 mm)
Cutout
Template Provided Part Number: P186000
total Weight
779 lb (354 kg) / 44.2 lb/sq. ft. (215 kg/m
2 )
opeRating gallonage
49 U.S. Gal. (185 Liters)
Min. 40 U.S. Gal. (151 Liters)
Max. 58 U.S. Gal. (220 Liters)
pRoDuCt Weight
96 lb (44 kg)
skiRt mounting
Not Available
eleCtRiCal speCifiCations
Requires a dedicated gfCi protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
heateR (optional)
Requires a dedicated gfCi protected separate circuit.
RapidHeat™: P/N S750000
© 2007 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
installation notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FS39000 11/07
es30 Riva 5 Whirlpool Bath, Left Hand
es40 Riva 5 Whirlpool Bath, Right Hand
• Left and Right Hand Drain Location
• Accessories / Hardware:
Trim Kit: 4 HTC Jet Rings #D095
Rotary Drain Kit, 26” Cable #8730
Trim Kit: 2 BMH Jet Rings #J869
Trip-Lever Drain Kit: #X559
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
RIVA™ 6, Right Hand
72"
21"
42"
2"
14" x 4"
11-1/2"
6-7/8"
Motor
12" H x 18" L
Service Access
END VIEW SIDE VIEW
2"
(51 mm)
(Heater)
(Motor)

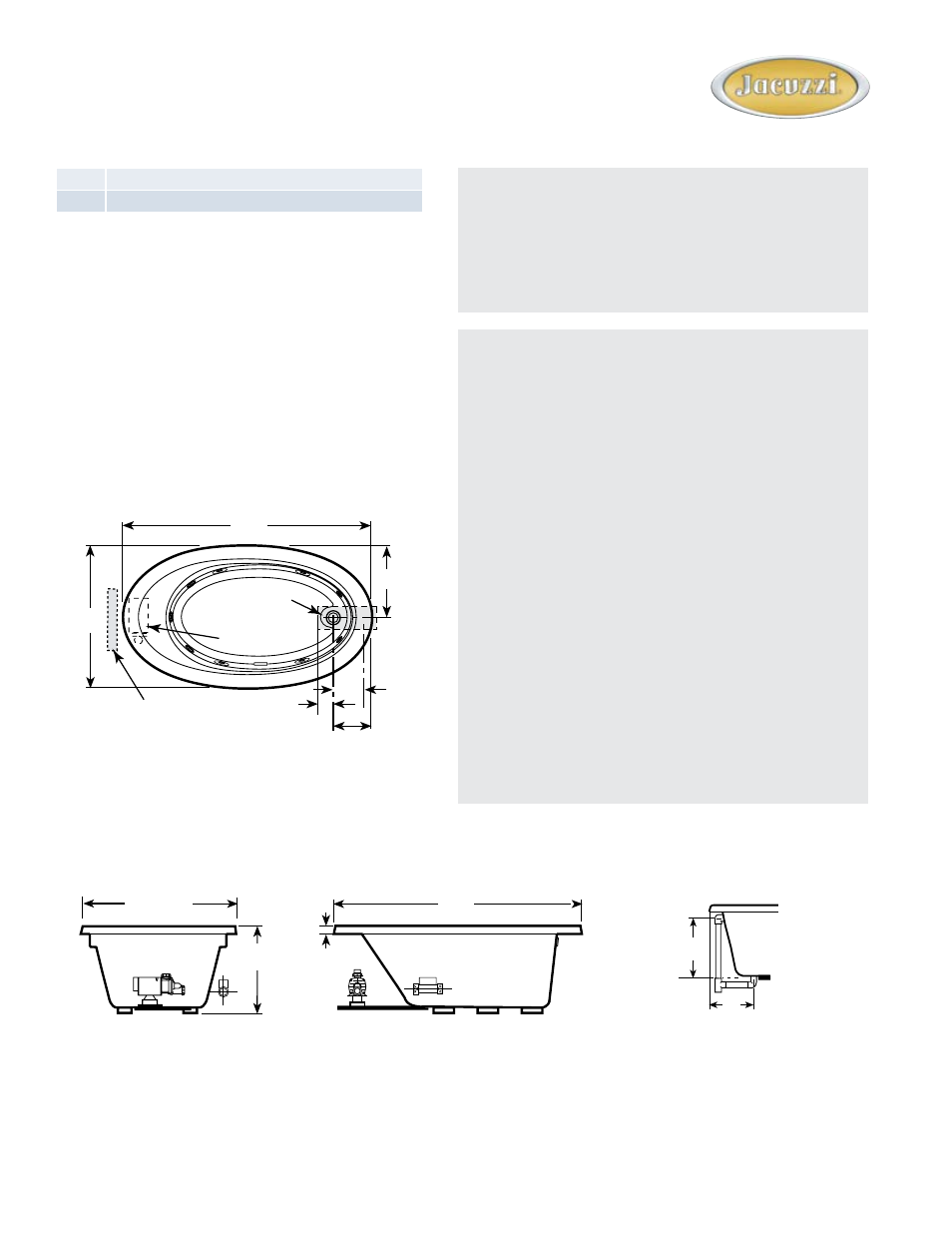

RIVA® 5 PLUS, Right Hand
19"
43" 62"
DRAIN/OVERFLOW
A
B
product shown: Riva® 5 plus Whirlpool Bath
Right hand shown model: es40
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Minimum Service Access dimensions given.
