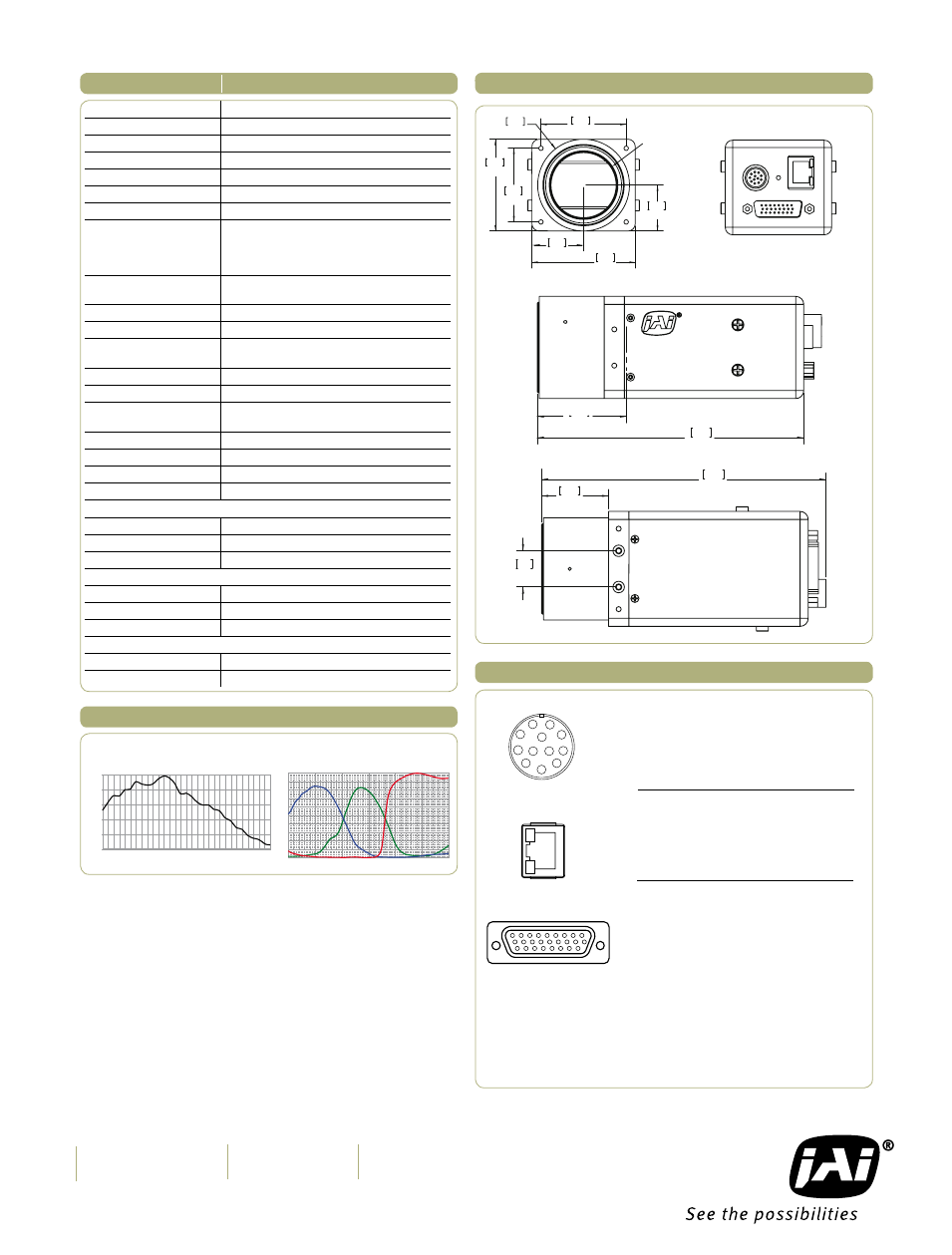

TS-4032 EN
System Specifications
Dimensions
Spectral Response
JAI is the world leader in high-performance vehicle imaging technologies
that target the specific needs and concerns of roadway operators and transit
authority executives. JAI delivers advanced real-world proven lane hardware
and software that delivers superior performance. We also offer products and
services to reduce back-office enterprise processing costs. No other industry
provider can compete with our breadth of uniquely tailored products such as
high speed vehicle capture (0-200 MPH), license plate reading (LPR) combined
with vehicle fingerprinting, delivering patented video billing products, and
specific homeland security services.
Working together with our valued system integrator partners around the
world, JAI has delivered more that 20,000 vehicle imaging cameras and
systems devoted to the electronic tolling collection, speed enforcement,
parking lot systems, and Homeland Security markets. JAI manufactures core
imaging cameras and vehicle imaging products and services for worldwide
traffic industry partners.
Sensor
43.3 mm progressive scan CMOS
Active area
24.6mm x 19.56mm
Active pixels
2048 (H) x 1628 (V) @ 19 fps
Cell size
12 μm x 12 μm
Pixel clock
66 MHz
Resolution
Digital: 2048 (H) x 1628 (V)
S/N ratio
56 dB min.
Dynamic range
139 dB total
66 dB imager (linear)
12 dB dual-slope algorithm
61 dB light sensor
Color (TSC-4032 EN only)
Color interpolation SW required
(
provided by JAI upon request
)
AGC
OFF, light-sensor controlled
Gamma Mono/Color 0.45
Electronic shutter
“No-delay” async global shutter
1/2,000 – 1/42,000 (5 msec max)
Spectral response
400-1000 nm
Lens mount
M-42 mount (F-mount optional)
Power
12V DC ± 10%, 400 mA (typical at 25° C)
(1.2A powerup surge current)
Operating temperature
-10° C to 55° C
Vibration
7 Grms (10 Hz to 320 Hz) Random
Shock
70G, 11 ms, half-sine
Weight
417 grams
Processor Module
CPU
Power PC
SDRAM
128 MB
O/S
Real-time Linux
External I/O Interfaces
Trigger interface
TTL, serial or Ethernet input
Ethernet interface
10/100 BaseT Ethernet, TCP/IP, FTP, UDP
Serial interfaces
2 serial TTL I/F and one RS-232 debug port
Options
OP-IR No IR cut filter
OP-RED Red filter
47.15
1.856
57.15
2.250
25.40
1.000
40.80
1.606
50.80
2.000
28.58
1.125
Ø 50.80
2.000
M42x1.0
EFFECTIVE
IMAGE AREA
44.38
1.747
132.52
5.217
POWER
ETHERNET
DIGITAL
141.32
5.564
18.00
.709
33.32
1.312
47.15
1.856
57.15
2.250
25.40
1.000
40.80
1.606
50.80
2.000
28.58
1.125
Ø 50.80
2.000
M42x1.0
EFFECTIVE
IMAGE AREA
44.38
1.747
132.52
5.217
POWER
ETHERNET
DIGITAL
141.32
5.564
18.00
.709
33.32
1.312
47.15
1.856
57.15
2.250
25.40
1.000
40.80
1.606
50.80
2.000
28.58
1.125
Ø 50.80
2.000
M42x1.0
EFFECTIVE
IMAGE AREA
44.38
1.747
132.52
5.217
POWER
ETHERNET
DIGITAL
141.32
5.564
18.00
.709
33.32
1.312
47.15
1.856
57.15
2.250
25.40
1.000
40.80
1.606
50.80
2.000
28.58
1.125
Ø 50.80
2.000
M42x1.0
EFFECTIVE
IMAGE AREA
44.38
1.747
132.52
5.217
POWER
ETHERNET
DIGITAL
141.32
5.564
18.00
.709
33.32
1.312
12-Pin Connector
1
GND (Power)
7
Reserved
2
+12V Input
8
Strobe out
3
GND (Analog)
9
Reserved
4
Test Point
10
RS232 RxD
5
GND (Digital)
11
Reserved
6
Trigger Input
12
RS232 TxD
Connector Pin-outs
10/100 BaseT Ethernet
1
Ethernet TxD A+
5
NC
2
Ethernet TxD A-
6
Ethernet RxD B-
3
Ethernet RxD B+
7
NC
4
NC
8
NC
High-Density 26-Pin D-Sub Connector (
female
)
1
GND (power)
14
Tamper Input
2
+12V Input
15
Reserved
3
RxD LVD (TTL))
16
LVD/IO Selector
4
TxD LVD (TTL)
17
Ethernet D+
5
LVD DIR Control (TTL)
18
Ethernet TxD A-
6
Ethernet C+
19
GND (Analog)
7
Ethernet C-
20
Test point
8
Ethernet B-
21
Trigger Input
9
Ethernet B+
22
LC TxD (TTL)
10 GND (Digital)
23
LC RxD (TTL)
11 Flash Strobe Output
24
LC DIR Control (TTL)
12 Flash Status Input
25
Ethernet D-
12 Status Input
26
Ethernet A+
1
2
3
4
5
6
9
8
7
11
12
10
100.00
80.00
60.00
40.00
20.00
0.00
400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 740 760 780 800 820 840 860 880 900 920 940 960 980 1000
Wavelength [nm]
Re
la
tiv
e Response [%]
100%
90%
80%
70%
60%
50%
50%
30%
20%
10%
0%
400 450 500 550 600 650 700
Wavelength [nm]
Re
la
tiv
e
Re
sp
on
se
[
%
]
TS-4032 EN (monochrome)
TSC-4032 EN (color)
