Tara™ Pure Air® II Bath
Model: EB00
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
EB00 Tara™ Pure Air® II Bath
Right Hand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Trip Kit, 26” Cable: #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 60” L x 20-3/4” H
(1524 mm) L x (1524 mm) L x (527 mm) H
Drain/Overflow
A: 16” (406 mm) B: 12-3/8” (314 mm)
Cutout
See Illustration Below
Total Weight
1152 lb (523 kg)/ 46.1 lb/ft 2 (225 kg/m 2 )
Operating Gallonage
71 U.S. Gal. (208 Liters)
Min. 55 U.S. Gal. (208 Liters)
Max. 87 U.S. Gal. (329 Liters)
Product Weight
130 lb (59 kg)
Skirt Mounting
Optional
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
Heater
No water heater is available on this unit. Blower has integral air heater.
27-1/4"
35"
44"
60"
60"
46"
35"
14" x 4"
Blower
Service
Access
Opt.
Service
Access
- 2" x 4" Stud
27-1/4"
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
20-3/4"
2"
(51 mm)

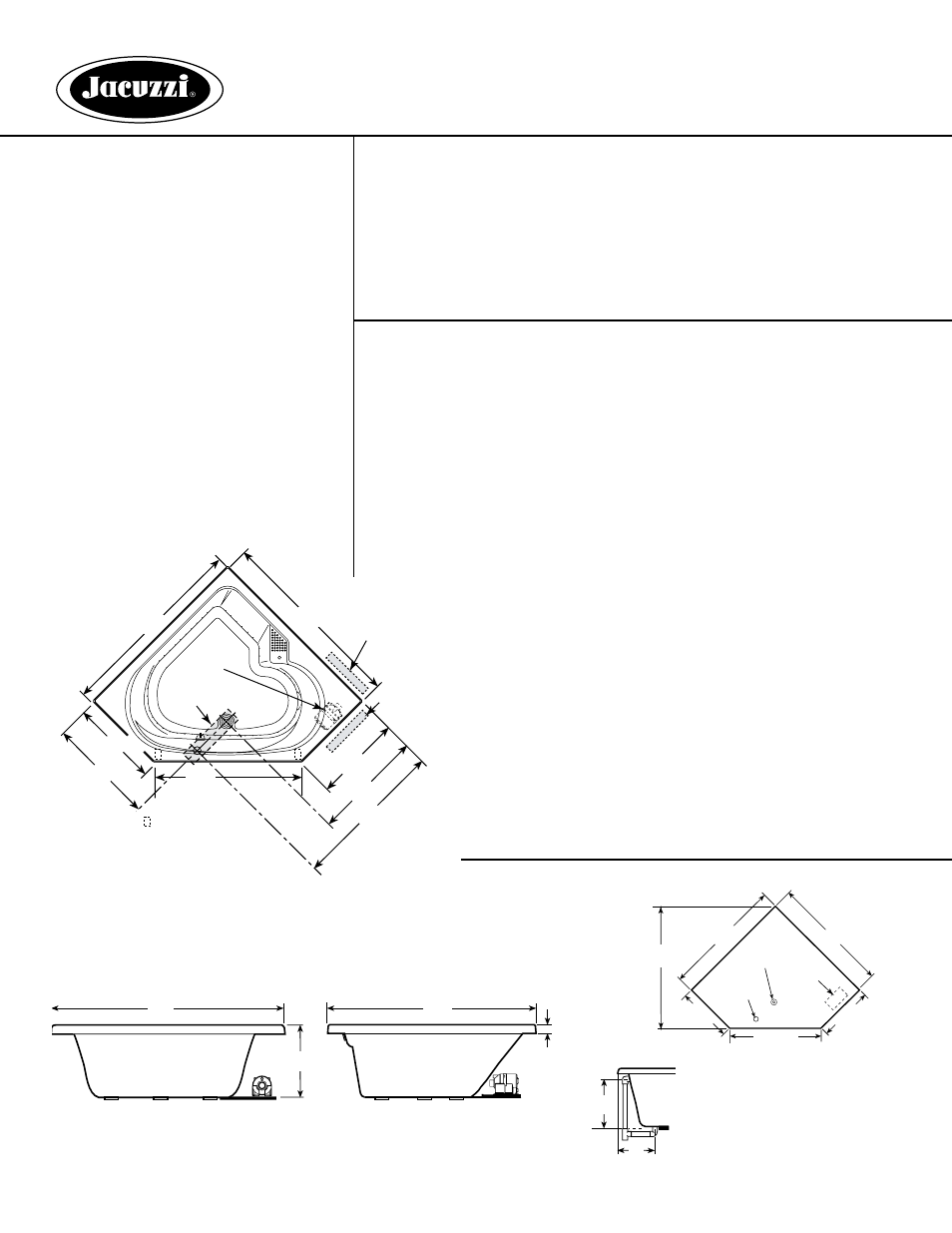

SIDE VIEW END VIEW
60"
TARA™, RIGHT HAND PURE AIR BATH
60"
(Blower)
#FQ95 12/06
DRAIN/OVERFLOW
A
B
25-1/2"
(648 mm)
58"
(1473 mm)
45-9/16"
(1157 mm)
TARA™ CUTOUT
58"
(1473 mm)
25-1/2"
(648 mm)
Ref.
59"
Drain
Overflow
Blower
Product Shown: Tara™ Corner Pure Air® II Bath Model: EB00
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
