CV-M30

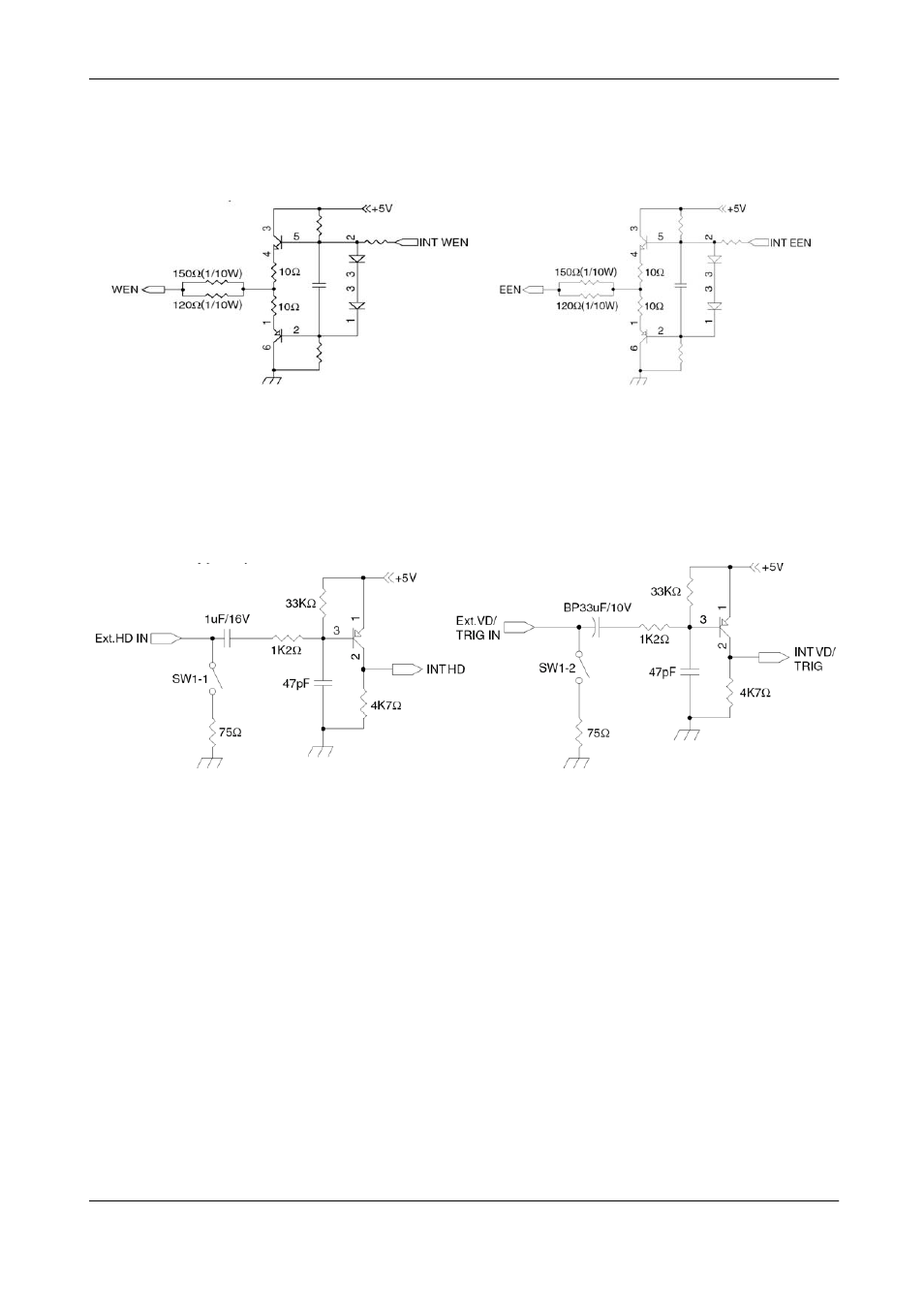

5.3. Input and Output Diagram



Fig. 4. WEN and EEN output






Fig. 5. HD and VD/Trigger input

- 5 -
