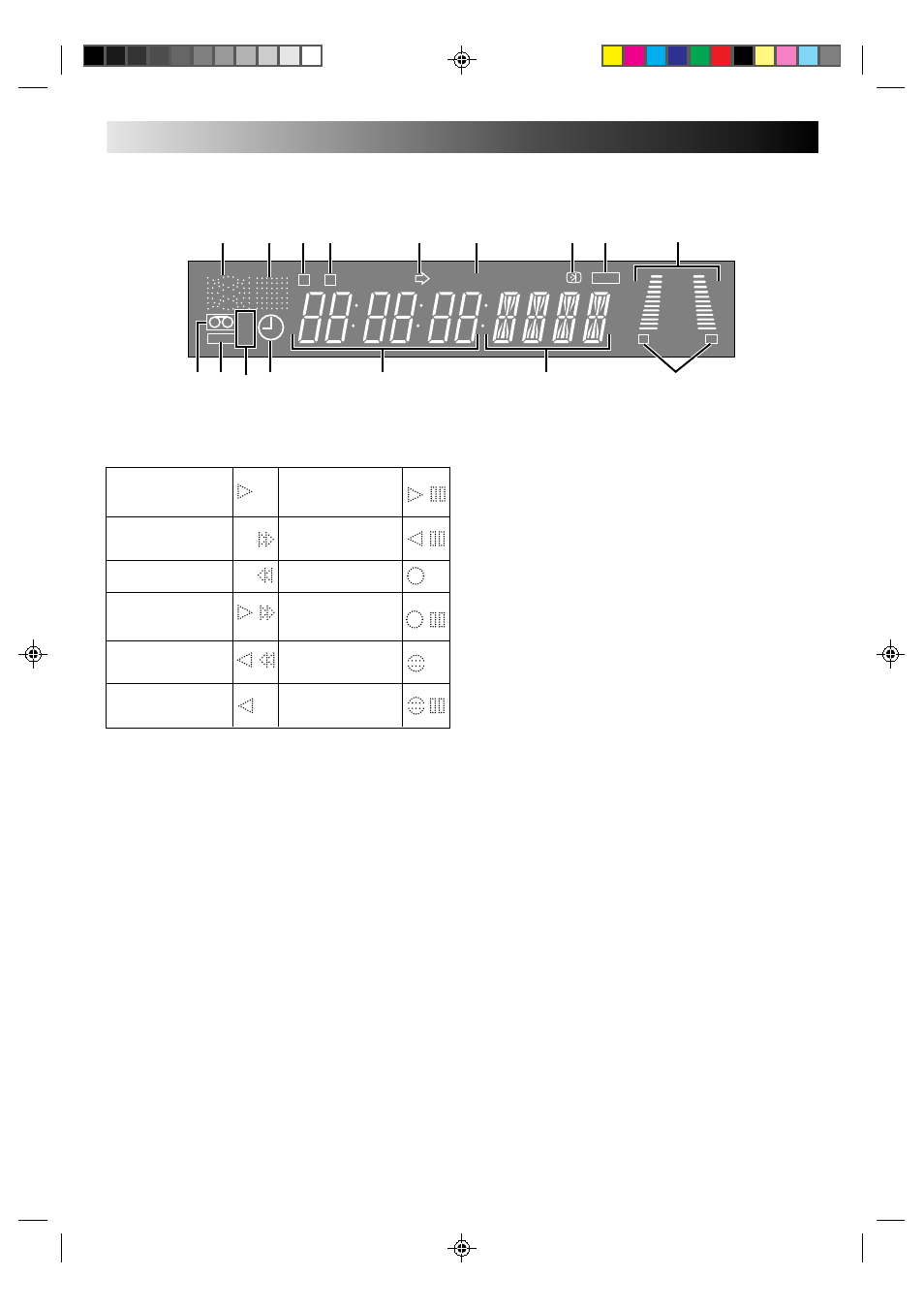

DISPLAY PANEL
1 and 2 Symbolic Mode Indicators 3 ”DAILY” Program Mark (
੬
pg. 23)
4 ”WEEKLY” Program Mark (
੬
pg. 23)
5 Start Time/Stop Time Indicator (
੬
pg. 22)
6 Tape Remaining Time Indicator (
੬
pg. 13)
7 PDC/VPS Indicator (
੬
pg. 25)
8 VIDEO Indicator (
੬
pg. 5)
9 B.E.S.T. Picture System Display (
੬
pg. 15)
Audio Level Indicator
0 ”Cassette Loaded” Mark
! Instant Timer Recording (
੬
pg. 19)
@ Tape Speed Indicators (
੬
pg. 14)
# ”Timer” Indicator (
੬
pg. 23)
$ Clock/Counter/Tape Remaining Time Display
(
੬
pg. 7)
% Channel/Mode Display (
੬
pg. 5)
^ Audio Mode Indicator (
੬
pg. 13)
PLAY:
STILL:
FORWARD SLOW:
FF:
STILL:
REVERSE SLOW:
REW: RECORD:
FF VARIABLE
RECORD PAUSE:
SHUTTLE SEARCH:
REW VARIABLE AUDIO
SHUTTLE SEARCH: DUBBING:
REVERSE PLAY:
AUDIO DUBBING
PAUSE:
