Allusion
®
6636
pure Air® ii BAth
technical Specifications
DimenSionS
66” L x 36” W x 26” H
(1829 mm) L x (914 mm) W x (660 mm) H
DrAin/overflow
A: 17-3/8” (441 mm) B: 11-15/16” (210 mm)
Cutout
Template provided Part Number BY20000
totAl weight
681 lb (309 kg) / 42 lb/sq. ft. (206 kg/m
2 )
operAting gAllonAge
57 U.S. Gal. (216 Liters)
Min. 40 U.S. Gal. (151 Liters)
Max. 75 U.S. Gal. (284 liters)
proDuCt weight
124 lb (56 kg)
Skirt mounting
Not Available
eleCtriCAl SpeCifiCAtionS
requires a dedicated gfCi protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
heAter
No water heater is available on this unit. Blower has integral air heater.
© 2007 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
inStAllAtion noteS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.

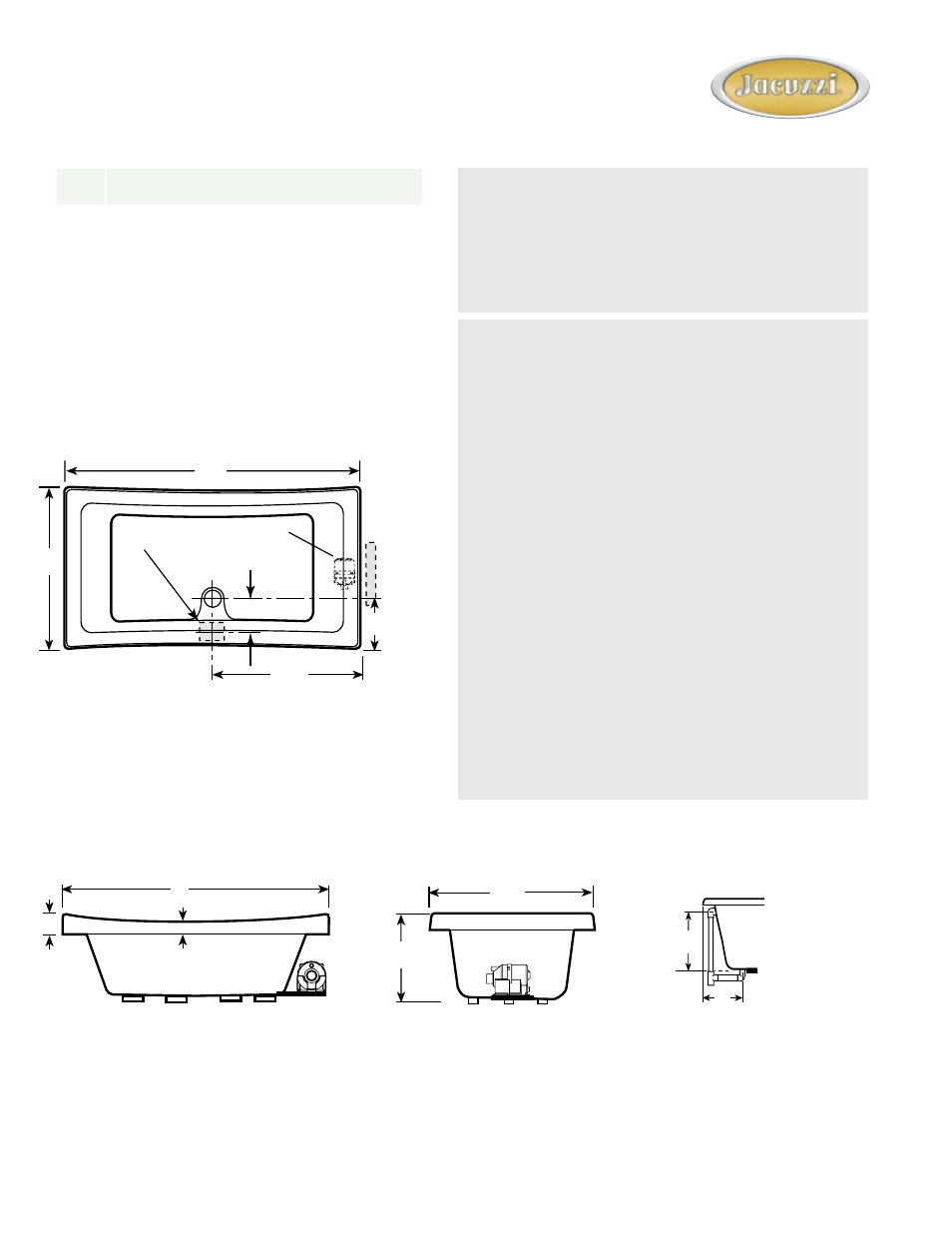

product Shown: Allusion® 6636 pure Air® ii
Bath right hand (Y800) Shown.
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Minimum Service Access dimensions given.
#FR14000 10/07
Y800
Allusion® 6636 Pure Air® II Bath, Right Hand
(Includes a required drain/actuator kit in chrome)
• Left and Right Drain Location
• Accessories / Hardware:
4 X HTC Jet Rings Kit: #D095
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
66"
36"
1 1-15/16"
33"
5" x 5"*
8-1/2"
Blower
12" H x 18"
L
Service Access
END VIEW
H
W
SIDE VIEW
L
4" 2"
ALLUSION
(Blower)
DRAIN/OVERFLOW
A
B
