Mito
™
5
Whirlpool plus Bath
technical specifications
DiMensions
60” L x 42” W x 21” H
(1524 mm) L x (1067 mm) W x (533 mm) H
Drain/overfloW
A: 17-1/2” (445 mm) B: 11-7/8” (302 mm)
Cutout
58” x 40”
total Weight
866 lb (393 kg) / 50 lb/sq. ft. (242 kg/m
2 )
operating gallonage
62 U.S. Gal. (235 Liters)
Min. 39 U.S. Gal. (148 Liters)
Max. 73 U.S. Gal. (276 Liters)
proDuCt Weight
109 lb (49.5 kg)
skirt Mounting
Optional U-Frame
eleCtriCal speCifiCations
requires a dedicated gfCi protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
heater
requires a dedicated gfCi protected separate circuit.
RapidHeat™: P/N S750000
© 2008 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
installation notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#HP21000 01/08
en90 Mito™ 5 Whirlpool Bath, Right Hand Pump
ep00 Mito™ 5 Whirlpool Bath, Left Hand Pump
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
HTC Jet Trim Kit: #D095
2 X BMH Jet Trim Kit: #J869
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Electrical Components and Electrical Specifications do not apply
to non-jetted baths.

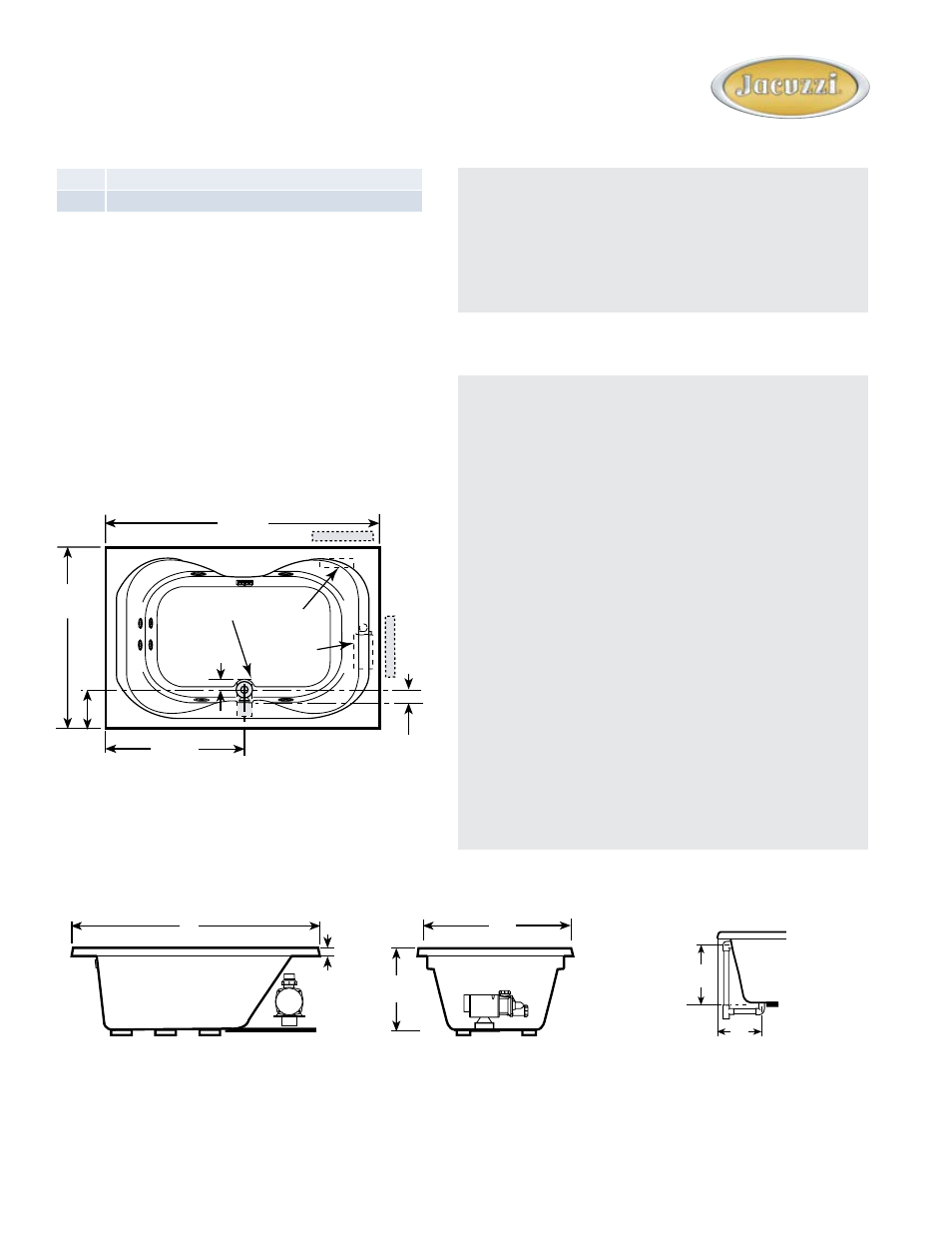

MITO™ 5 PLUS, Right Hand
30"
42"
*60"
10" x 4"
2"
11-7/8"
Motor
12" H x 18"
L
Service Access
Opt. Service
Access
5-3/8"
Heater
END VIEW
H
W
SIDE VIEW
L
2"
DRAIN/OVERFLOW
A
B
product shown: Mito ™ 5 Whirlpool plus Bath
right hand shown Model: en90
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Minimum Service Access dimensions given.
