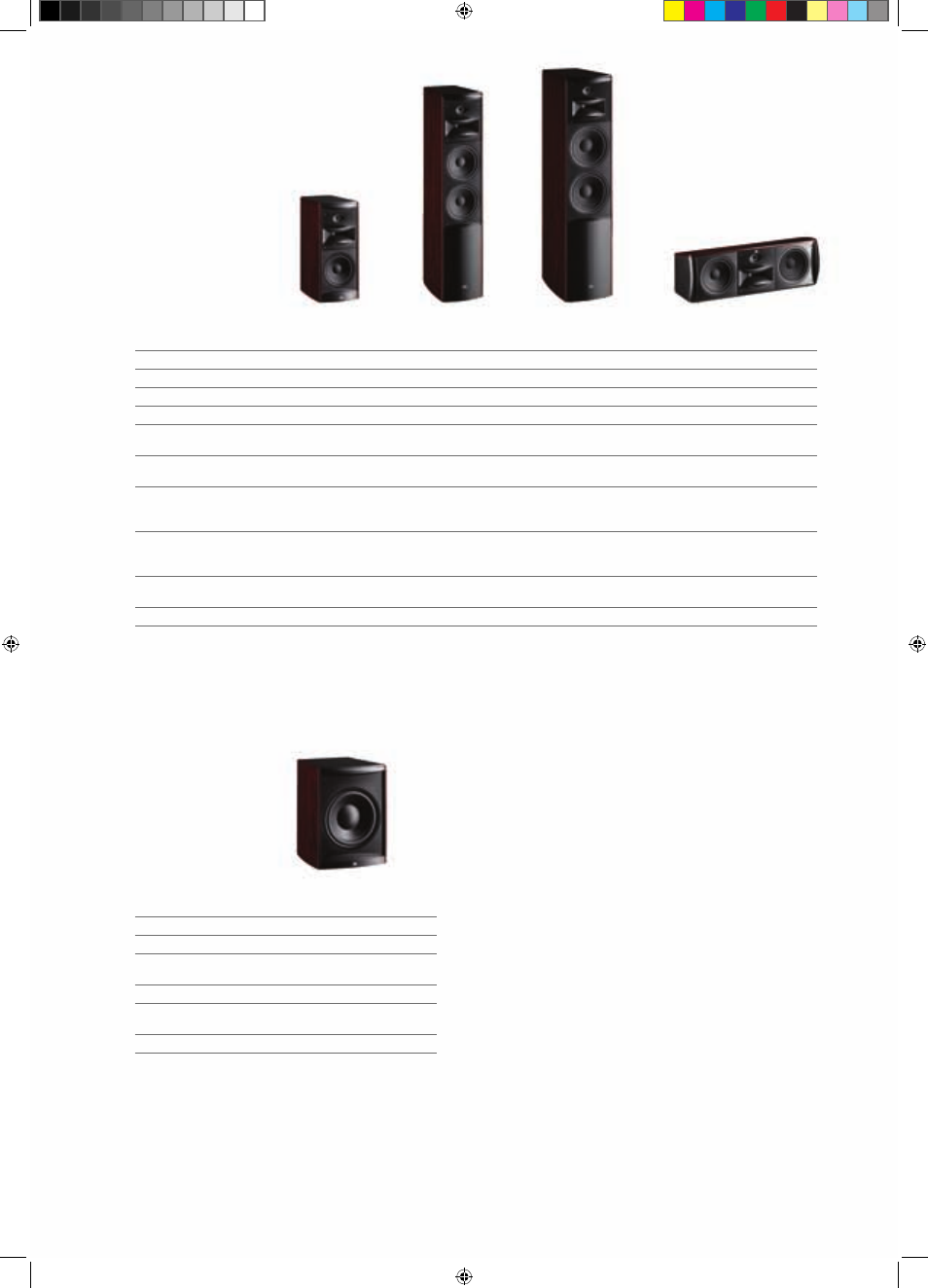

LS SERIES SPECIFICATIONS.

LS40

LS60

LS80

LSCENTER

Frequency Response (–3dB)

50Hz – 38kHz

48Hz – 38kHz

46Hz – 38kHz

85Hz – 38kHz

Max. Recommended Amplifier Power*

150W

150W

200W

150W

Power Handling (Continuous/Peak)

75W/300W

75W/300W

100W/400W

75W/300W

Sensitivity (2.83V/1m)

87dB

87dB

90dB

88dB

Nominal Impedance

6 Ohms

6 Ohms

6 Ohms

6 Ohms

Crossover Frequencies

2.6kHz – 24dB/octave;

400Hz – 6dB/octave;

400Hz – 6dB/octave;

2.5kHz – 24dB/octave;

7kHz – 24dB/octave

2kHz, 8kHz – 24dB/octave

2.5kHz, 8kHz – 24dB/octave

9kHz – 24dB/octave

Low-Frequency Transducer

165mm (6-1/2") with cast-

Dual 165mm (6-1/2") with cast- Dual 200mm (8") with cast-

Dual 165mm (6-1/2") with cast-

aluminum frames, shielded

aluminum frames, shielded

aluminum frames, shielded

aluminum frames, shielded

High-Frequency Transducer

50mm (2") Pure-titanium

50mm (2") Pure-titanium

50mm (2") Pure-titanium

50mm (2") Pure-titanium

compression driver;

compression driver;

compression driver;

compression driver, shielded;

Bi-Radial

®

horn

Bi-Radial

®

horn

Bi-Radial

®

horn

Bi-Radial

®

horn

Ultrahigh-Frequency Transducer

19mm (3/4") Polyester-film

19mm (3/4") Polyester-film

19mm (3/4") Polyester-film

19mm (3/4") Polyester-film

ring radiator; neodymium

ring radiator; neodymium

ring radiator; neodymium

ring radiator; neodymium

magnet; EOS waveguide

magnet; EOS waveguide

magnet; EOS waveguide

magnet; EOS waveguide

Dimensions With Grille

499mm x 222mm x 343mm

1017mm x 222mm x 343mm

1117mm x 259mm x 418mm

230mm x 672mm x 235mm

(H x W x D)

(19-5/8" x 8-3/4" x 13-1/2")

(40" x 8-3/4" x 13-1/2")

(44" x 10-3/16" x 16-1/2")

(9" x 26-1/2" x 9-1/4")

Weight per Speaker

13.5kg (29.8 lb)

26.6kg (58.6 lb)

35.6kg (78.5 lb)

14.4kg (31.7 lb)

LS120P

Frequency Response

25Hz – 150Hz

Amplifier RMS Power

400W

Amplifier Peak Dynamic Power

700W

Crossover Frequencies

50Hz – 150Hz;

24dB/octave, continuously variable

Driver

300mm (12") PolyPlas

Dimensions With Grille

510mm x 375mm x 438mm

(H x W x D)

(20-1/16" x 14-3/4" x 17-1/4")

Weight

25.8kg (57 lb)

* The maximum recommended amplifier power rating will ensure proper system headroom to
allow for occasional peaks. We do not recommend sustained operation at these maximum
power levels.

The Peak Dynamic Power is measured by recording the highest center-to-peak voltage

measured across the output of a resistive load equal to minimum impedance of the transducer,
using a 50Hz sine wave burst, 3 cycles on, 17 cycles off.
