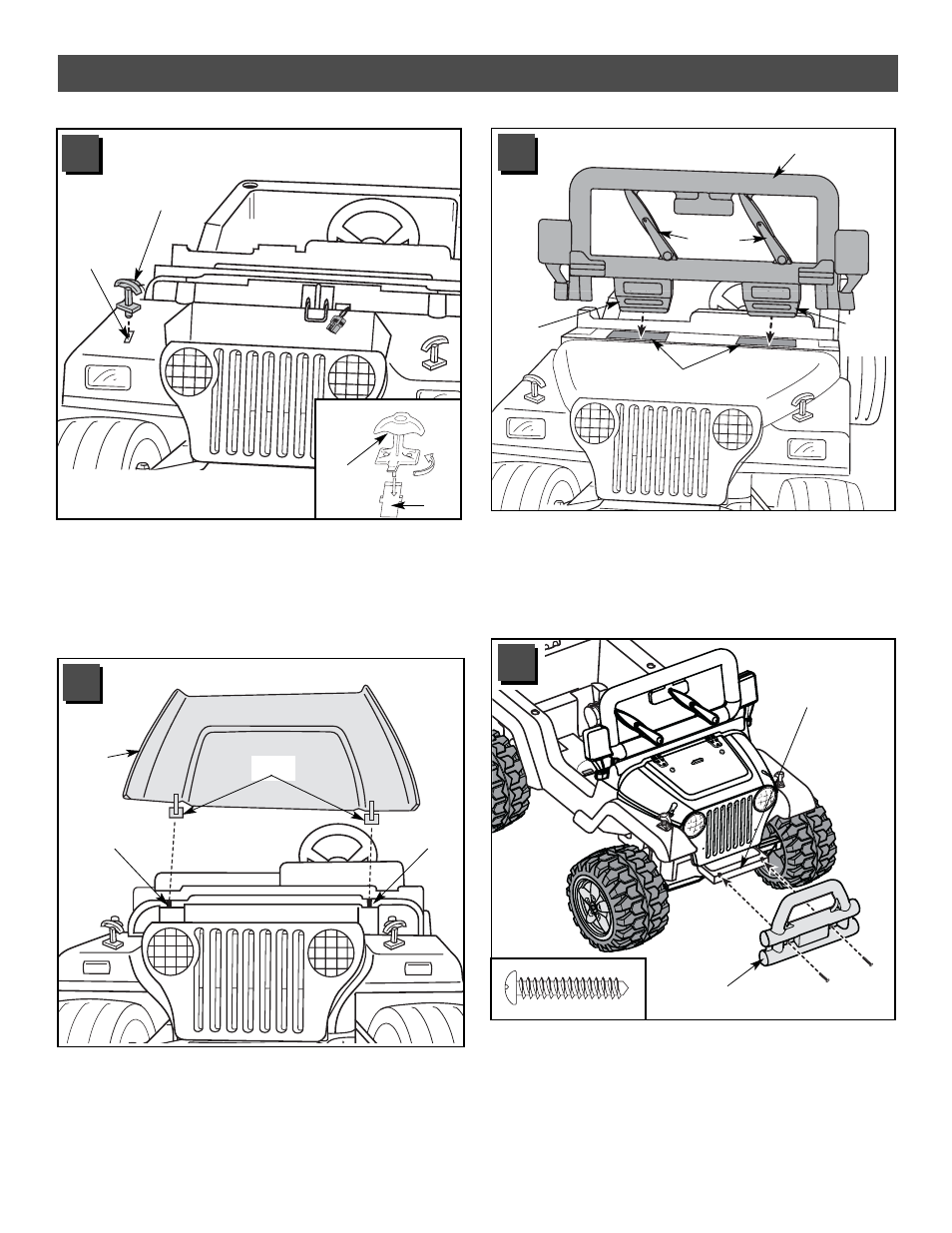

Assembly
• Position the windshield so that the wipers face the front
end of the vehicle.
• Insert and “snap” the two large tabs on the windshield
into the large slots in the dash.
• Pull up on the windshield to be sure it is secure.
Windshield
Wipers
Large
Tab Large
Tab
Large Slots
Hood
Tabs
• Position the hood over the front of the vehicle body
as shown.
• Insert the tabs on the hood into the slots in the
vehicle body.
• Close the hood.
Slot Slot
• Insert a hood latch into one of the slots in the vehicle
body, near the hood area.
• Twist the base of the hood latch 1 /
4
turn to secure it in
the vehicle body.
• Repeat this procedure on the other side of the hood
area to attach the other hood latch to the vehicle body.
Hood
Latch
Slot
Hood
Latch
Slot
12
13
14
Brush Guard
Front Bumper
15
• Fit and hold the brush guard against the front bumper.
• Insert two #10 x 1" screws through the front of the brush
guard and into the front bumper.
•Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
