Bellavista
™
6
salon® spa Bath
technical specifications
Dimensions
72” L x 42” W x 26” H
(1524 mm) L x (1067 mm) W x (660 mm) H
Drain/overflow
A: 20” (508 mm) B: 11-3/4” (298 mm)
Cutout
Template Provided P/N P187000
total weight
1231 lb (558 kg) / 59 lb/sq. ft. (288 kg/m
2 )
operating gallonage
87 U.S. Gal. (329 Liters)
proDuCt weight
180 lb (82 kg)
skirt mounting
Not Available
eleCtriCal speCifiCations
requires a dedicated gfCi protected separate circuit.
Blower: 120VAC, 20AMP, 60 Hz.
Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.
heater (stanDarD)
requires a dedicated gfCi protected separate circuit.
RapidHeat™: P/N BN60000
© 2007 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
installation notes
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FR19000 10/07
DY75 Bellavista ™ 6 Salon® Spa, Right Hand
• Center Drain Location
• Accessories / Hardware:
PowerPro™ Jet Rings Kit: #M952
3 x AccuPro™ Neck Jet Rings Kit: #P556
Rotary Drain Kit, 30” Cable: #K606
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
4" x 4"*
42"
72"
10-1/2" 35-13/16"
11-3/4"
6"
30-1/8"
Motor
12" H x 24" L
Service Access
Heater
Blower

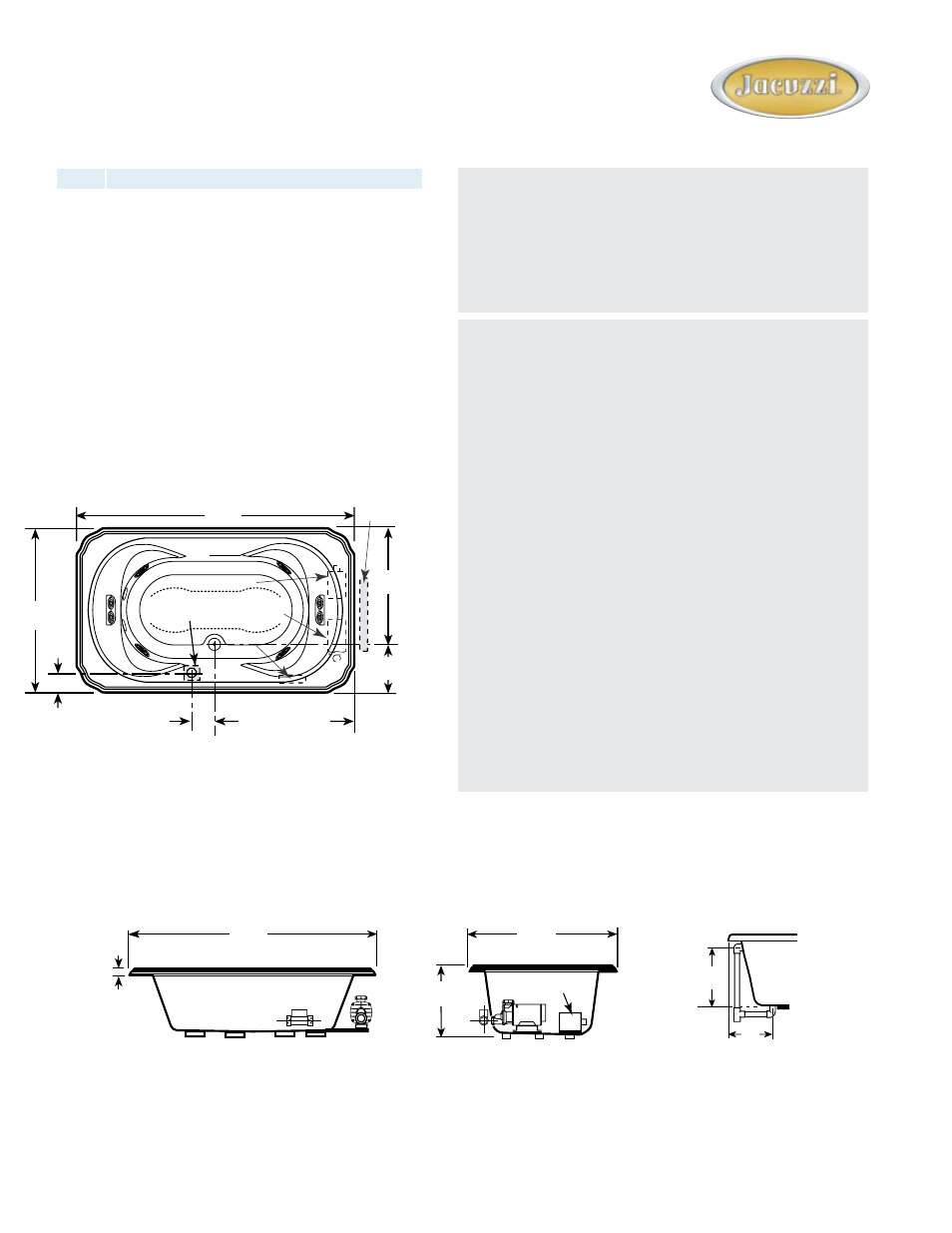

END VIEW SIDE VIEW
2"
(Heater)
(Motor)
(51 mm)
(Blower)
72" 42"
26"
DRAIN/OVERFLOW
A
B
product shown: Bellavista™ 6 salon™ spa
right hand shown, model: DY75
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Minimum Service Access dimensions given.
