Finestra
™
6030
Walk-In WhIrlpool Bath
technical Specifications
DImenSIonS
60” L x 30” W x 37-1/2” H
(1524 mm) L x (762 mm) W x (952.5 mm) H
DraIn/overFloW
A: 31-1/2” (800 mm) B: 6-5/8” (168 mm)
Cutout
NA
total WeIght
EU50, EU55: 340 lb. (154.5 kg)
EY10, EY15: 340 lb. (154.5 kg)
EV85, EV90: 310 lb. (141 kg)
EY00, EY05: 310 lb. (141 kg)
operatIng gallonage
Max: 75 U.S. Gal. (284 liters)
Min: 55 U.S. Gal. (208 liters)
proDuCt WeIght
EU50, EU55: 280 lb. (127 kg)
EY10, EY15: 280 lb. (127 kg)
EV85, EV90: 260 lb. (118 kg)
EY00, EY05: 260 lb. (118 kg)
SkIrt mountIng
NA
eleCtrICal SpeCIFICatIonS (models eu50, eu55, eY10, eY15 only)
Motor/Pump and RapidHeat™: 230 VAC, 20 AMP, 60 Hz.
heater
RapidHeat™: (P/N BN60000) comes standard on;
*(Models EU50, EU55, EY10, and EY15 only)
© 2007 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
InStallatIon noteS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.

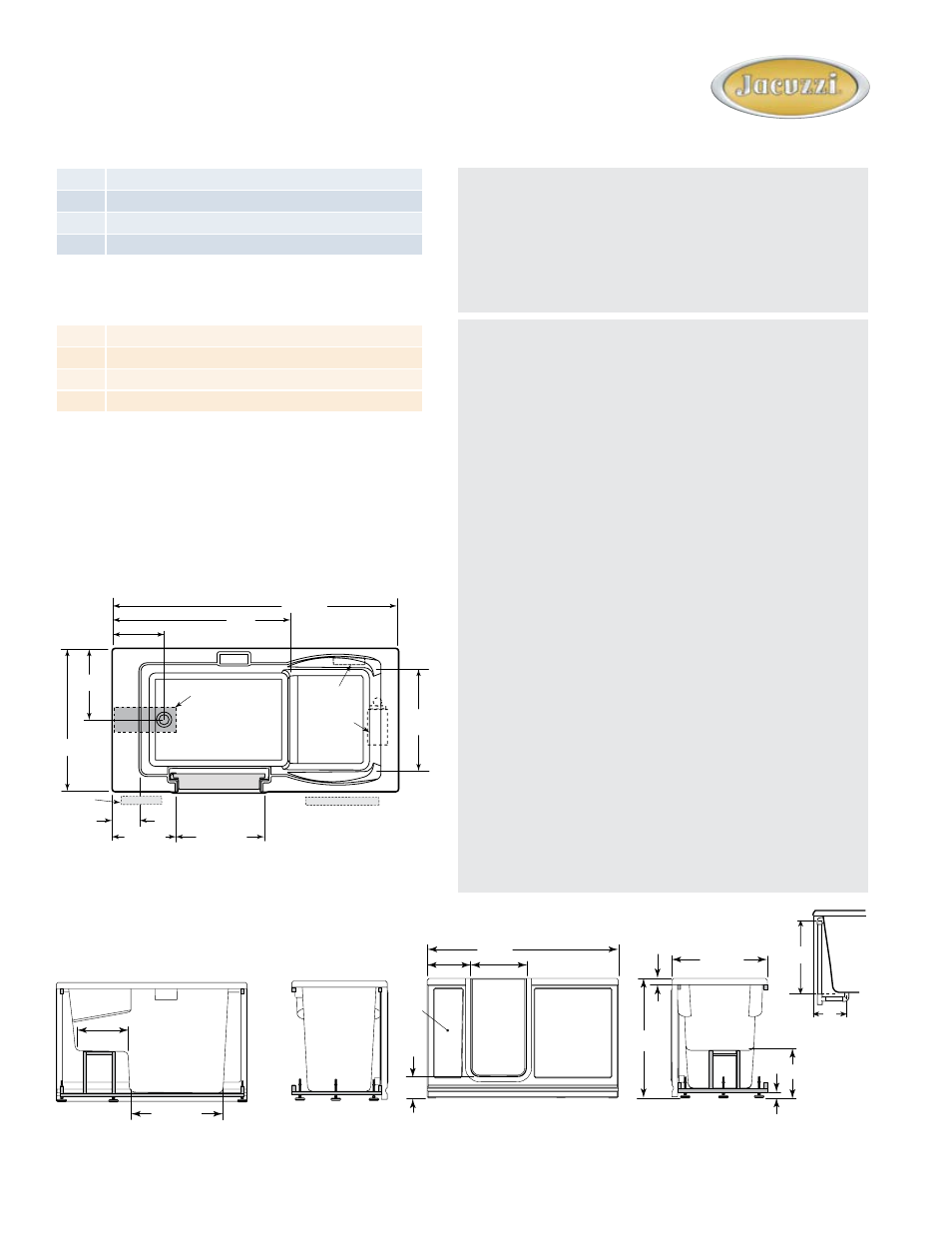

Finestra™ 6030 Walk-In 14" Seat Whirlpool
Bath left hand (eu50) shown.
* Measurements inside unit represent cutout
in floor to allow for drain/overflow. Minimum
service access dimensions given.
DRAIN/OVERFLOW
A
B
60"
30"
17-1/2"
5"
15"
6-5/8"
37"
13-3/4"
20"
4" x 16"
27" H x 24" L
Service Access
Motor
Seat Floor
FINESTRA™ 6030
*Heater
27" H x 9" L
Service Access
Door
BACK FRONT LEFT END RIGHT END
L
H
W
14" or 17"
1-1/2"
2"
6-1/2"
29-1/2"
16-3/4"
17-1/2" 13-3/4"
Service Access
Service
Access
#EZ64000 10/07
eu50 Finestra ™ 6030 Walk-In 14" Seat Whirlpool Bath, Left Hand
eu55 Finestra ™ 6030 Walk-In 14" Seat Whirlpool Bath, Right Hand
eY10 Finestra ™ 6030 Walk-In 17” Seat Whirlpool Bath, Left Hand
eY15 Finestra ™ 6030 Walk-In 17” Seat Whirlpool Bath, Right Hand
ev85 Finestra ™ 6030 Walk-In 14" Seat Bath, Left Hand
ev90 Finestra ™ 6030 Walk-In 14" Seat Bath, Right Hand
eY00 Finestra ™ 6030 Walk-In 17” Seat Bath, Left Hand
eY05 Finestra ™ 6030 Walk-In 17” Seat Bath, Right Hand
• Left and Right Hand drain locations
• Accessories / Hardware:
Drain Kit: #FB48000
Remote Drain Kit: #FC30000
Pillow: #EK91959
• Trim Kit Finishes Available:
(827) – Chrome
(829) – Bright Brass
(959) – White
Finestra
™
6030
Walk-In SoakIng Bath
