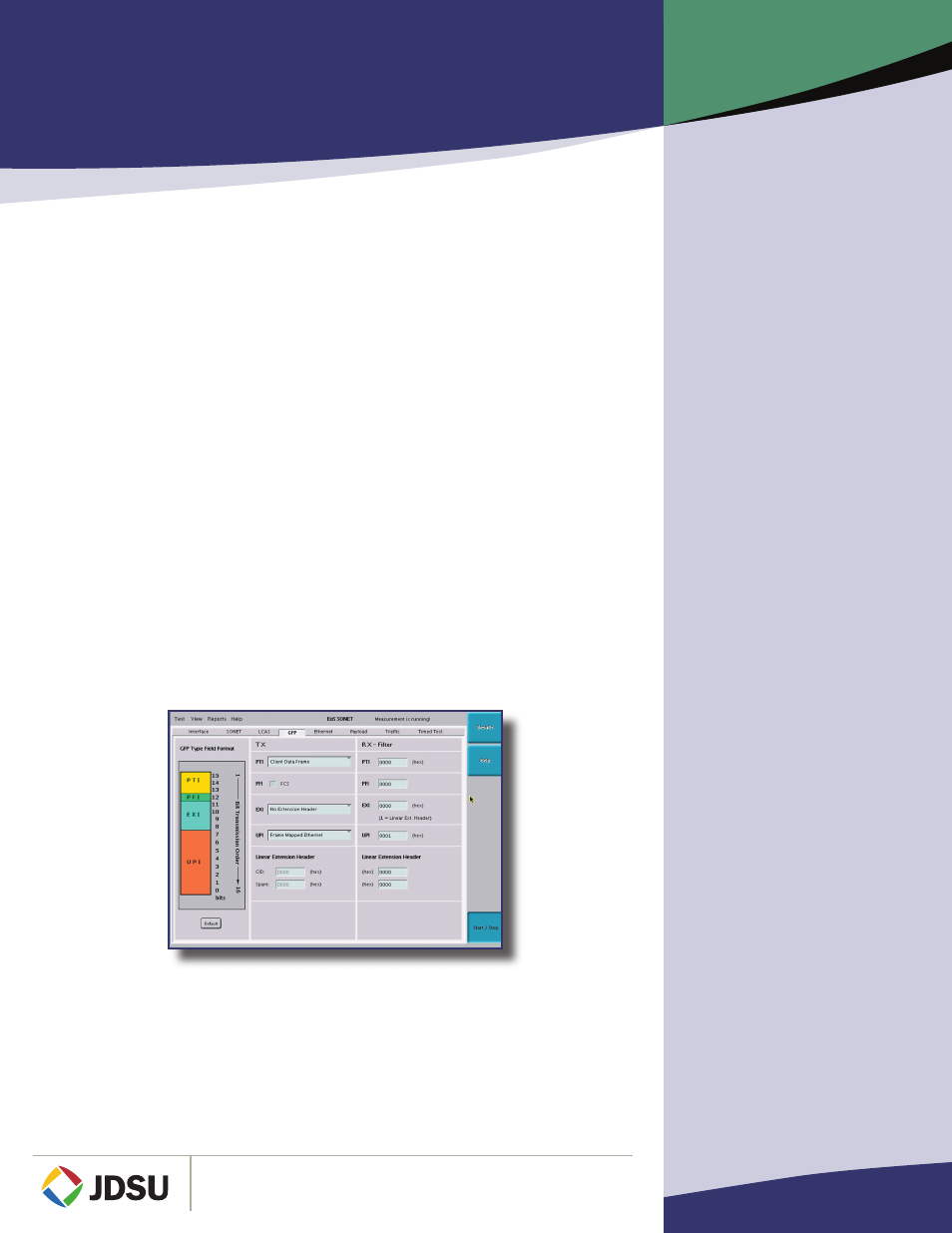

Turning up and Troubleshooting Ethernet over SONET/SDH (EoS) circuits
Ensure Connectivity
– Verify system provisioning by easily identifying Virtually Concatenated groups
and members
– Verify the mapping of Ethernet frames into SONET/SDH payloads by checking
the GFP layer for errors and alarms
– Transmit Ethernet traffic using the MAC address and VLAN Tag, including stacked
VLAN (QinQ) capabilities
– Trace LCAS protocols for the correct setup and teardown of VCAT groups
Verify Throughput
– Ensure throughput by verifying the aggregate EoS bandwidth transported
through multiple virtual containers
– Use the Ethernet filter to identify traffic per source and destination MAC address
Measure QoS
– Ensure QoS by measuring the differential delay of EoS circuits transversing
different paths through the network
– Monitor for errors and alarms in Virtually Concatenated Groups and Members
– Detect lost Ethernet frames, measure delay and perform BER testing while
interoperating with the Transport module
In using the NewGen module, operators will benefit from JDSU’s proven technology
and testing expertise that has helped many of the world leading equipment
manufacturers design and verify their NewGen systems with the ONT platform.
JDSU has been able to apply this experience to field applications while leveraging
the market leading T-BERD 8000 platform with a common user interface. This
powerful combination enables operators to have one platform in support of current
and future testing needs.
T-BERD 8000
NewGen Module
WEBSITE: www.jdsu.com
North America
Tel: 1 866 228 3762
Fax: +1 301 353 9216
Latin America
Tel: +55 11 5503 3800
Fax: +55 11 5505 1598
Asia Pacific
Tel: +852 2892 0990
Fax: +852 2892 0770
EMEA
Tel: +49 7121 86 2222
Fax: +49 7121 86 1222
The Power of One–
Performing the Work of Many
Combining multiple test capabilities
with unprecedented levels of field
modularity and integraton, the JDSU
T-BERD 8000 allows integration of one
or all of the following modules for
provisioning and maintaining short-
haul, long-haul, FTTx, Metro, CWDM,
and DWDM networks:
Transport module
The only solution available to market
that combines T1/E1-10G SONET/SDH,
10/100/Gig Ethernet, 10Gig Ethernet
LAN/WAN PHY, IP, Fibre Channel and
OTN technologies in one convenient
package.
Optical Time Domain Reflectometer
(OTDR)
With over 17 different plug-in modules
covering all configurations from short-
haul to ultra-long haul networks
Chromatic Dispersion (CD)
Based on a single ended method
requiring only one technician to
perform the test
Polarization Mode Dispersion (PMD)
For qualifying the fiber plant before
installing high-speed transmission
technologies and avoiding costly
service disruptions and/or rework
Wavelength Division Multiplexing
(WDM)
For channel testing and measuring
spectral attenuation in the C and
L bands
OpticalSpectrum Analyzer (OSA)
For high-performance, full-spectrum
DWDM analysis with a unique option
for 10.7G channel isolation
