Gallery™ 6 Oval Whirlpool Bath
Model: N860, N865
Gallery™ 6 Oval Bath
Model: N870
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifi cations do not apply to non-jetted baths.
Ordering Information
Product Code:
N860 Gallery™ 6 Oval Whirlpool Bath
Left Hand
N865 Gallery™ 6 Oval Whirlpool Bath
Right Hand
N870 Gallery™ 6 Oval Bath
• Right and Left Hand Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings Kit #D095
AccuPro™ Jet Rings Kit #P556
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
72” L x 42” W x 20-1/2” H
(1829 mm) L x (1067 mm) W x (521 mm) H
Drain/Overfl ow
A: 16” (406 mm) B: 11-1/2” (292 mm)
Cutout
Template Provided
Total Weight
N860, N865: 871 lb (395 kg) / 42 lb/sq. ft. (203 kg/m 2 )
N870: 826 lb (375 kg) / 39 lb/sq. ft. (192 kg/m 2 )
Operating Gallonage
62 U.S. Gal. (235 Liters)
Product Weight
N860, N865: 105 lb (48 kg)
N870: 60 lb (27 kg)
Skirt Mounting
Not Available
Electrical Specifi cations Models N860, N865 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models N860, N865 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
72"
21"
42"
2"
14" x 4"
11-1/2"
Motor
12" H x 18" L
Service Access 6-7/8"
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
SIDE VIEW
W
H
2''
L
END VIEW
#FR56 06/07
DRAIN/OVERFLOW
A
B

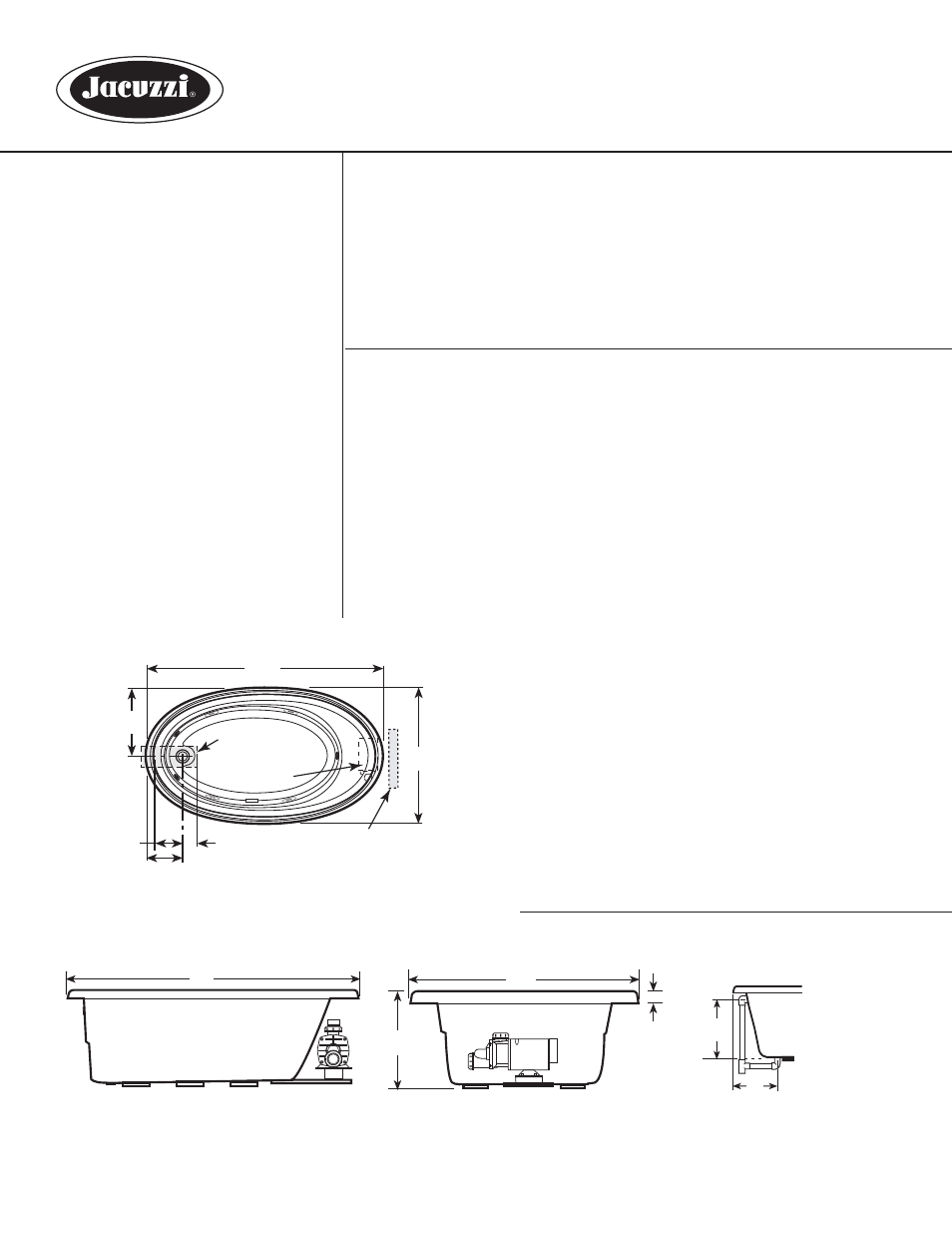

Product Shown: Gallery™ 6 Oval Whirlpool Bath Left Hand Shown Model: N860
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
