EN
37

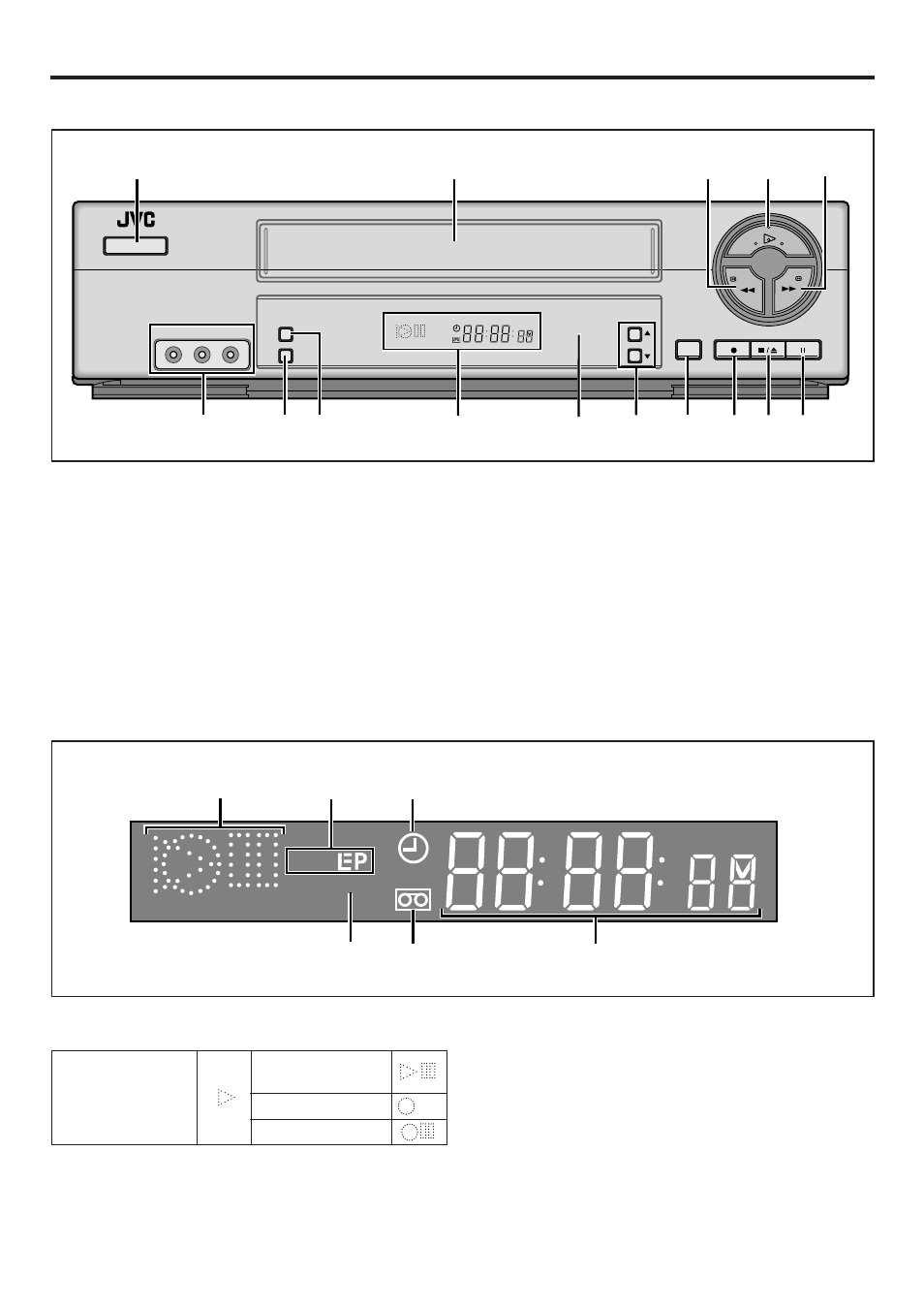

Front panel
1 POWER button :
੬ pg. 15, 19
2 Cassette loading slot
3 REW (
1 ) button : ੬ pg. 15, 19
4 PLAY ( # ) button : ੬ pg. 15, 19
5 FF (
¡ ) button : ੬ pg. 15, 19
6 AUDIO/VIDEO input connectors : ੬ pg. 32
7 OK button
8 MENU button
9 Front display panel :
੬ below
0 Remote sensor
! CH
5∞ buttons : ੬ pg. 19
@ SP/EP button :
੬ pg. 19
# REC ( ¶ ) button : ੬ pg. 19, 20
$ STOP/EJECT ( 7 / 0 ) button : ੬ pg. 15, 19
% PAUSE ( 8 ) button : ੬ pg. 19, 23
Front display panel
2 Tape speed indicators
3 Timer mode indicator :
੬ pg. 25
4 VCR mode indicator : ੬ pg. 19, 20
5 Cassette mark
6 Channel and auxiliary input (“F-1”)
Counter reading :
੬ pg. 16, 20
Clock time :
੬ pg. 16, 20
1 Symbolic Mode Indicators
STILL:
SLOW:
RECORD:
RECORD PAUSE:
PLAY:
FF/REW VARIABLE
SHUTTLE SEARCH:
SP
VCR
4 5 6
1 2 3
VIDEO (MONO)L–AUDIO–R
SP/EP
MENU
CH OK
POWER
REC PAUSE STOP/EJECT
PLAY
FF REW
1 2 3 5
% $ # @ 9 0 8 7 6
4
!
SP EP
VCR
