7
Unpacking
Separate all parts from the packing material. Check each part against the Contents of the Shipping
Container and make certain that all items are accounted for before discarding any packing material.
Contents of the Shipping Container
1 Bench Grinder (not shown)
1 Hardware (contents listed below)
Hardware
1 ea Bracket - Left (A)
2 ea Lock Knob (B)
1 ea Bracket - Right (C)
1 ea Spark Guard - Left (D)
2 ea 1/4" x 1/2" Screw (E)
1 ea Spark Guard - Right (F)
2 ea Eye Shield Bracket Plate (G)
4 ea 5/16” x 3/4” Hex Cap Screw (H)
4 ea 5/16" Flat Washer (J)
4 ea 3/16” x 3/8” Pan Head Screw (K)
4 ea 1/4” x 3/8” Hex Cap Screw (L)
6 ea 1/4” Flat Washer (M)
2 ea 1/4" Lock Washer (N)
1 ea Tool Rest - Left (O)
1 ea Tool Rest - Right (P)
2 ea Eye Shields (Q)
Tools Required for Assembly
10mm and 12mm Wrenches
No. 1 or No. 2 Cross Point Screwdriver

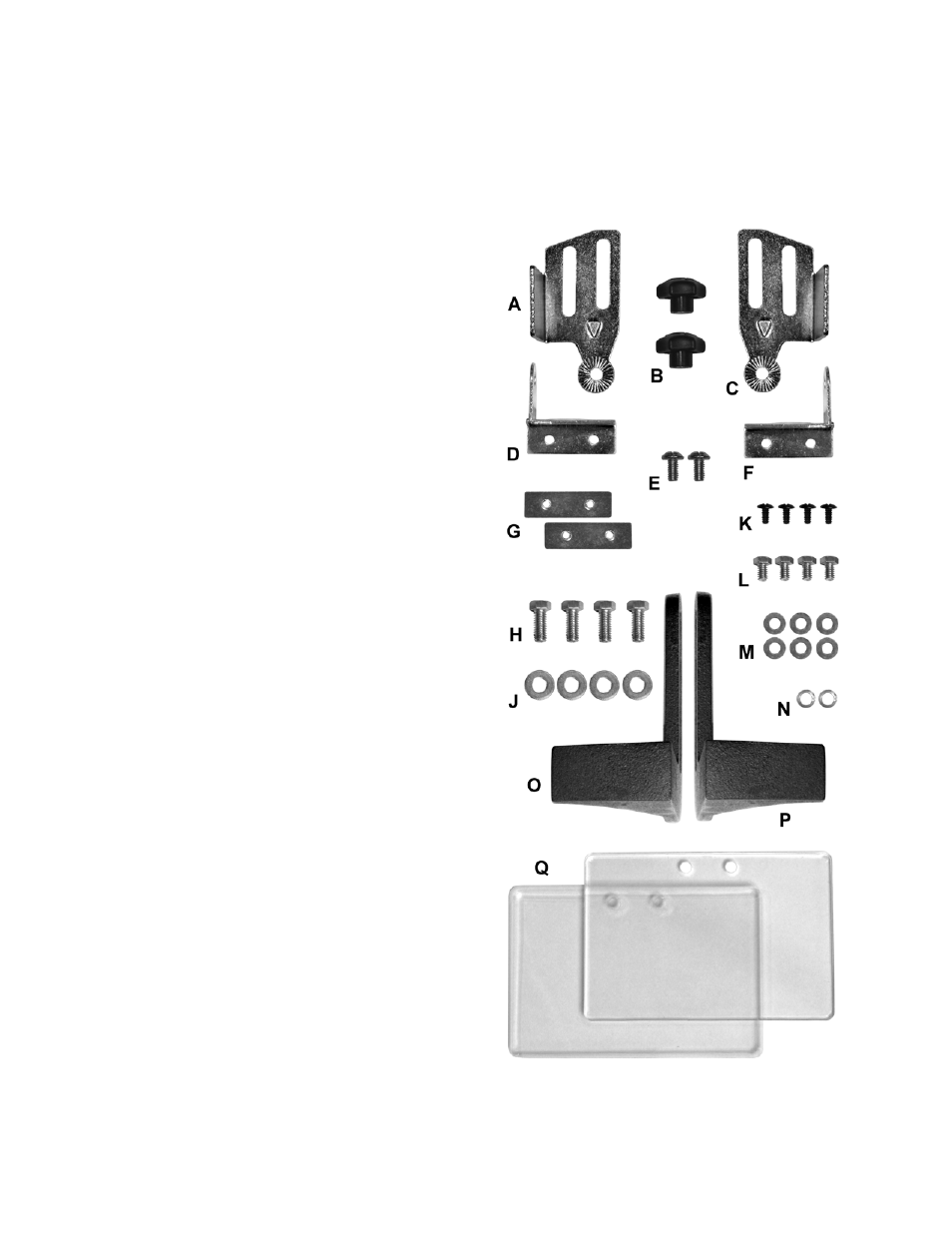

Figure: Hardware
