OWNER’S GUIDE
5–6 ft.
(1.5m–1.8m)
MODEL: L810

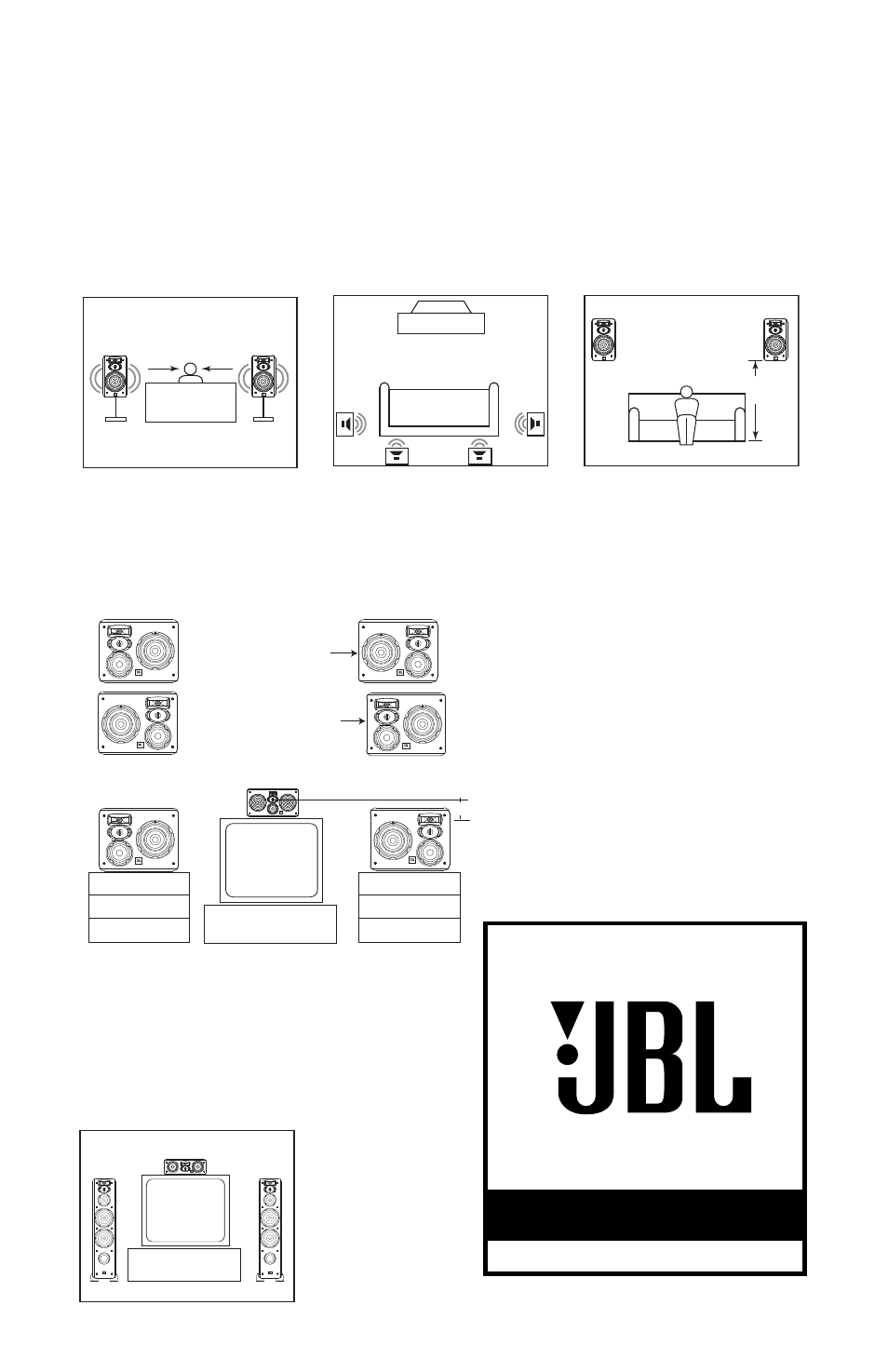

SPEAKER PLACEMENT
Proper placement of the
speakers is an important step
in obtaining the most realistic
soundstage possible. These
recommendations are for the optimum placement of the
loudspeakers. Use these
placement recommendations
as a guide. Slight variations
will not diminish your listening pleasure. All of the Studio ™ L
Series loudspeakers referred
to in this guide are video-
shielded and may safely be
placed near a television.
As front speakers As surround speakers
MODEL: LC2
The LC2 center channel loudspeaker
is designed to complement all of the
Studio L Series loudspeakers. This
speaker is ideal for re-creating the
cinematic experience in your home.
MODEL: L820
The L820 loudspeakers are
designed to be oriented hori-
zontally, as shown in the illus- trations below. Although these
loudspeakers are designed as
a mirrored pair, the decision as to which one is left or right
will depend on the amount of
space left between them.
A wider stereo image is
presented with the tweeter/
midrange array outboard, and
a tighter image is presented
with the array inboard.
This placement provides a
wide spread in sound, supple-
mented by the center channel
speaker.
Less than 6–8 feet
(1.8m–2.4m)
More than 6–8 feet
(1.8m–2.4m)
0–2 ft.
(0–0.6m)
For stereo-only applications:
For home theater applications:
5–6 ft.
(1.5m–1.8m)
L810, L820, LC2
STUDIO ™ L SERIES
®
