Nova™ 6 Pure Air® II Bath

Model: EA10

Installation Notes

Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.

Ordering Information

Product Code:

EA10 Nova™ 6 Pure Air II Bath

Left Hand

• Left Hand Drain Location
• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Specifications

Dimensions

72” L x 42” W x 20-1/2” H
(1829 mm) L x (1067 mm) W x (521 mm) H

Drain/Overflow

A: 14-3/4” (375 mm) B: 8-1/2” (216 mm)

Cutout

70” x 40” (1778 mm x 1016 mm)

Total Weight

1026.4 lb (466 kg)/48.9 lb/ft

2

(239 kg/m

2

)

Operating Gallonage

67 U.S. Gal. (30 Liters)
Min. 56 U.S. Gal. (212 Liters)
Max. 77 U.S.Gal. (292 Liters)

Product Weight

135 lb (61 kg)

Skirt Mounting

Optional, U-Frame

Electrical Specifications

Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.

Heater

No water heater is available on this unit. Blower has integral air heater.

*72"

21"

2"

2"

42"

14" x 4"

8-1/2"

6-7/8"

Blower

12" H x 18"

L

Service Access

Opt. Service Access

© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com

NOVA® 6, RIGHT HAND PURE AIR II BATH

END VIEW

20-1/2"

42"

SIDE VIEW

72"

2"

(51 mm)

(Blower)

#FQ96 12/06

DRAIN/OVERFLOW

A

B

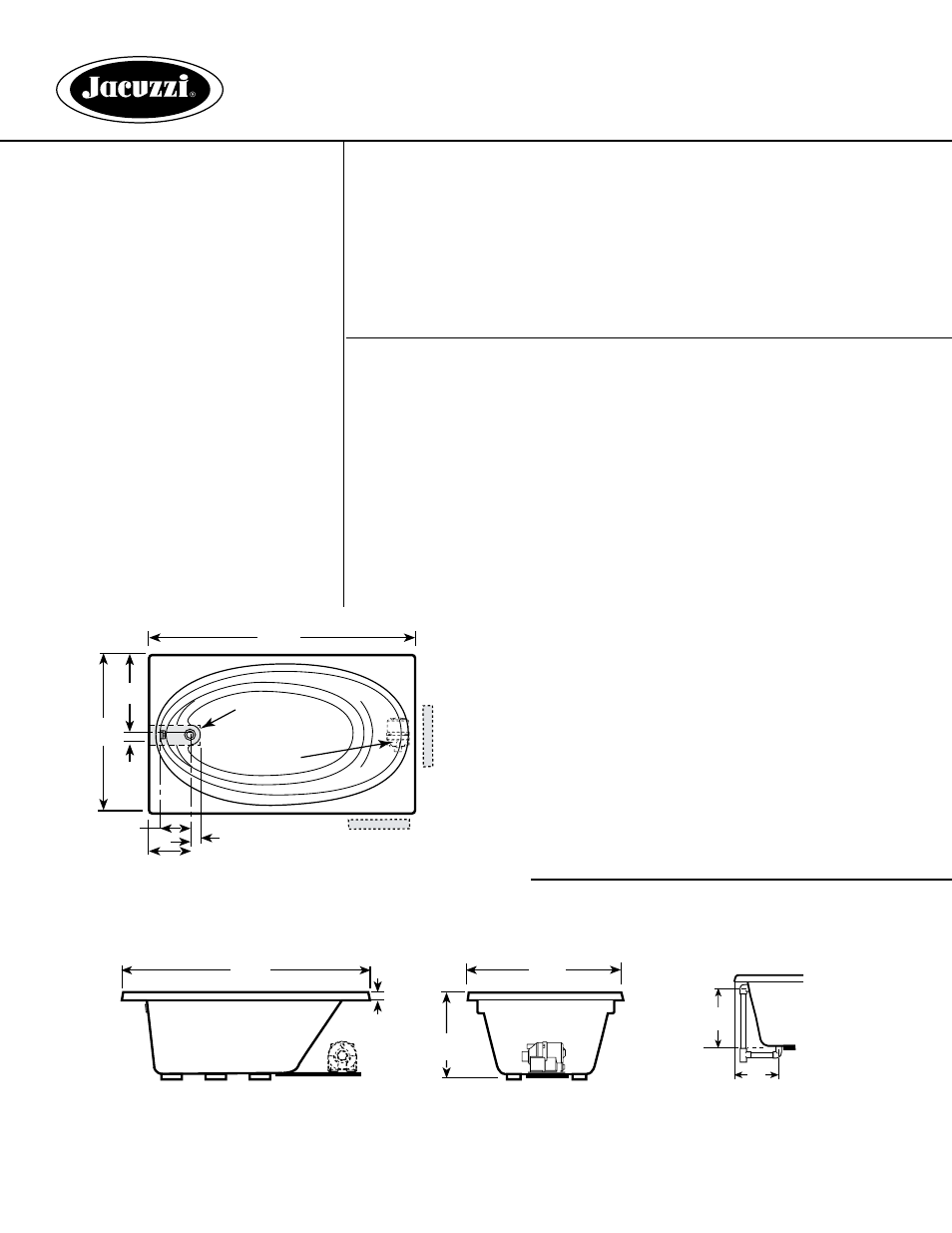

Product Shown: Nova™ 6 Pure Air II Bath Left Hand Model: EA10
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
