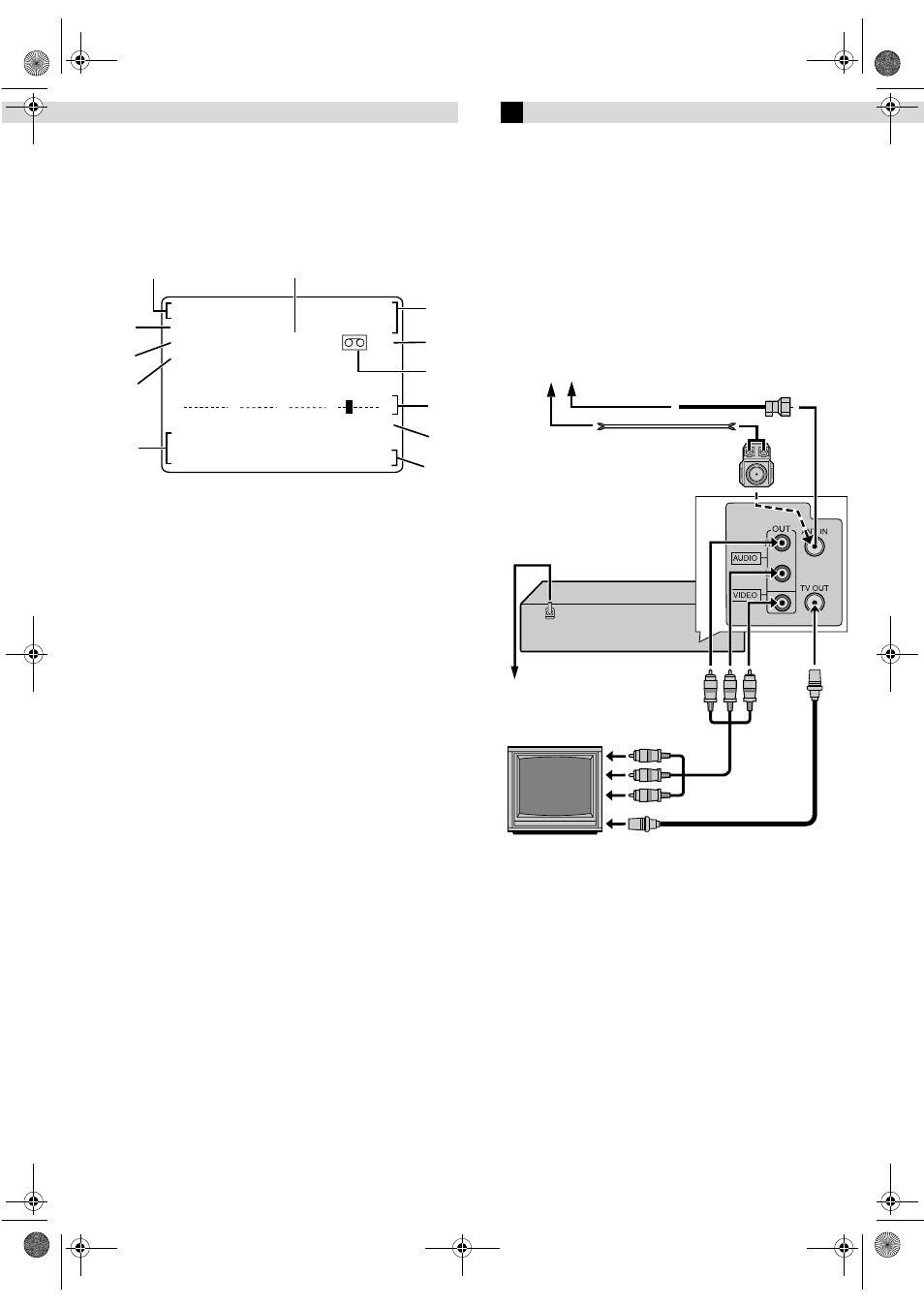

On-screen display
If you press OSD on the Remote when “SUPERIMPOSE” is set to
“ON”, you can see the current VCR status on the TV screen. Press
OSD again to exit on-screen display.
The indications are not recorded even if the VCR is in the
recording mode.
A Channel and auxiliary input
B Day and clock time
C STEREO program indication (HR-A57U only)
D SAP indication (HR-A57U only)
E Audio monitor indications (HR-A57U only)
F Time counter
G Index number
H Tape position
I Cassette mark
J Tape speed
K VCR operation mode
L Timer warning display
Connections and
Plug&Play Setting
A
Check contents
Make sure the package contains all of the accessories listed in
“Specifications”.
B
Situate VCR
Place the VCR on a stable, horizontal surface.
C
Connect VCR to TV
HR-A57U
B + + + E
CH125 RECORD
THU 12:00 AM PAUSE
STEREO –WARNING– SP
SAP TIMER RECORDING
TO START SOON
(CANCEL)
INDEX 1
NORM
HI-FI
COUNT –1:23:45
A
B
C
D
E
K
J
I
H
G
F
L
RF cable
(supplied)
Back of VCR
Flat feeder
AC power cord
Audio/video cable
(not supplied)
To audio/video
input connectors
Antenna or cable
Matching transformer
(not supplied)
Coaxial cable
AC outlet
To 75 ⍀ terminal
TV
– Connections and Plug&Play Setting –
