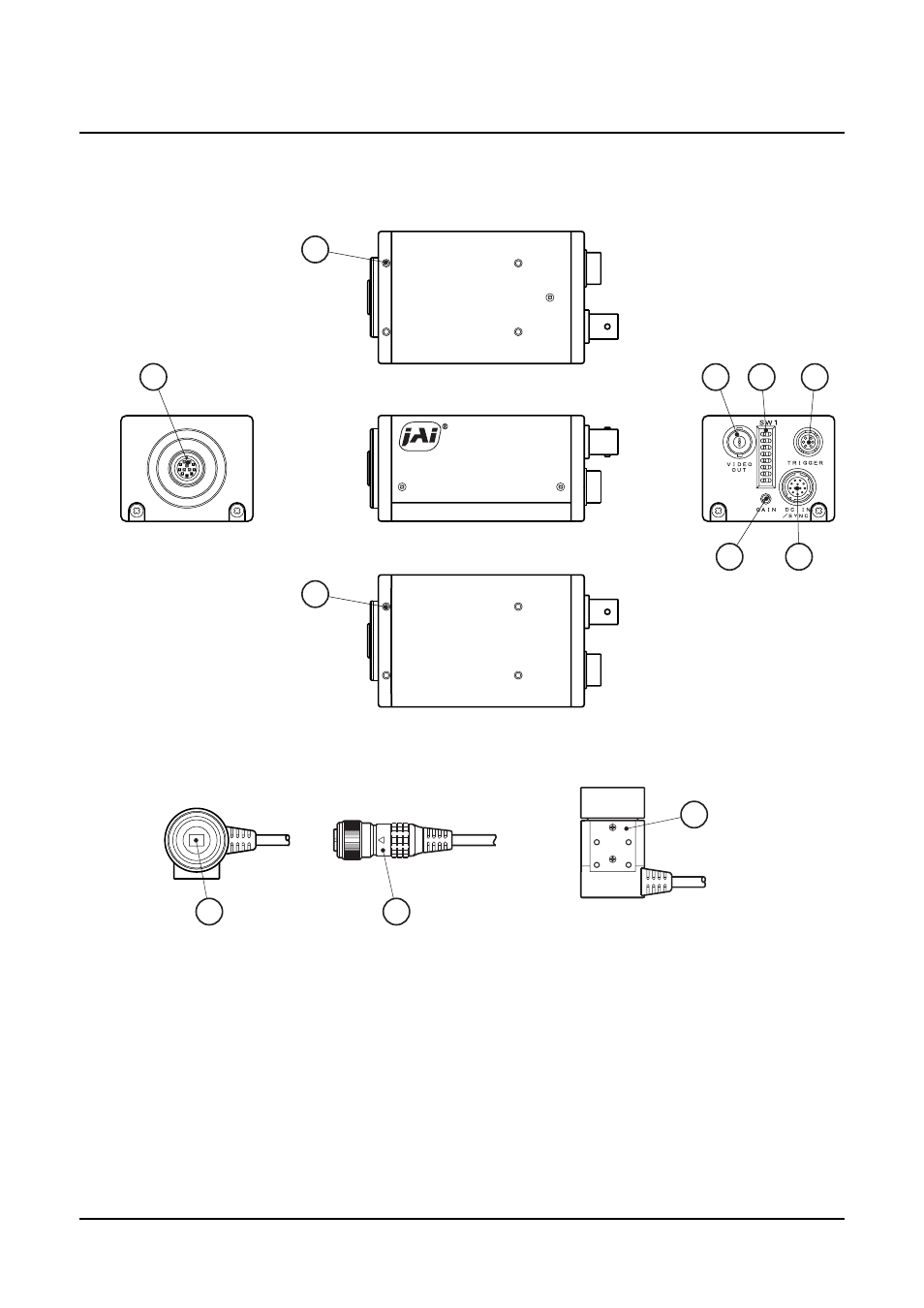

4. Locations and Functions
4-1. CCU
4-2. HEAD
1 12P connector : To connect camera head with camera control unit
(For Camera Head)
2 Video output connector : To output video VS1.0Vp-p
(BNC connector)
3 SW1 switch : To set shutter speed and function modes
4 6-pin Multi connector : Output WEN/EEN signal and input external trigger pulse, etc.
5 GAIN : To adjust gain level
6 12P Multi connector : Input DC+12V power and input/output of HD/VD signal, etc.
7 Screw holes for Tripod mount plate : To fix tripod mount plate (optional) on camera
8 CCD sensor : 1/2" Hyper HAD Interline transfer CCD sensor
9 Camera head mount : To mount camera head
10 Camera head connector : To connect camera head with cable
'
&
%
%
! "
# $
