Technical Specifications
DImenSIonS
60” L x 42” W x 23-1/2” H
(1524) mm L x (1067) mm W x (597) mm H
DraIn/overflow
A: 18-1/2” (470 mm) B: 10.6” (269 mm)
CuTouT
58” x 40” & undermount template DQ50000
ToTal weIghT
1126 lb. (511 kg) / 65 lb/ft
2 (319 kg/m 2 )
operaTIng gallonage
88 U.S. Gal. (333 Liters)
Min 83 U.S. Gal. (314 liters)
Max 92 U.S. Gal. (348 liters)
proDuCT weIghT
200 lb (91 kg)
SkIrT mounTIng
Not Available
eleCTrICal SpeCIfICaTIonS
requires a dedicated gfCI protected separate circuit.
Motor/Pump: 120 VAC, 20 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
heaTer (STanDarD)
requires a dedicated gfCI protected separate circuit.
RapidHeat™: P/N S750000
© 2008 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
InSTallaTIon noTeS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FR43000 01/08
elara
™
6042
whIrlpool baTh with ChromaTherapy
ee80 Elara™ 6042 Whirlpool Bath, Left Hand
ee85 Elara™ 6042 Whirlpool Bath, Right Hand
elara
™
6042
whIrlpool baTh with IllumaTherapy™
ee90 Elara™ 6042 Whirlpool Bath, Left Hand
ee95 Elara™ 6042 Whirlpool Bath, Right Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings Kit: #D095
AccuPro™ 2 Jet Rings Kit: # P556*
(* 2 kits required for EE90 and EE95)
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze

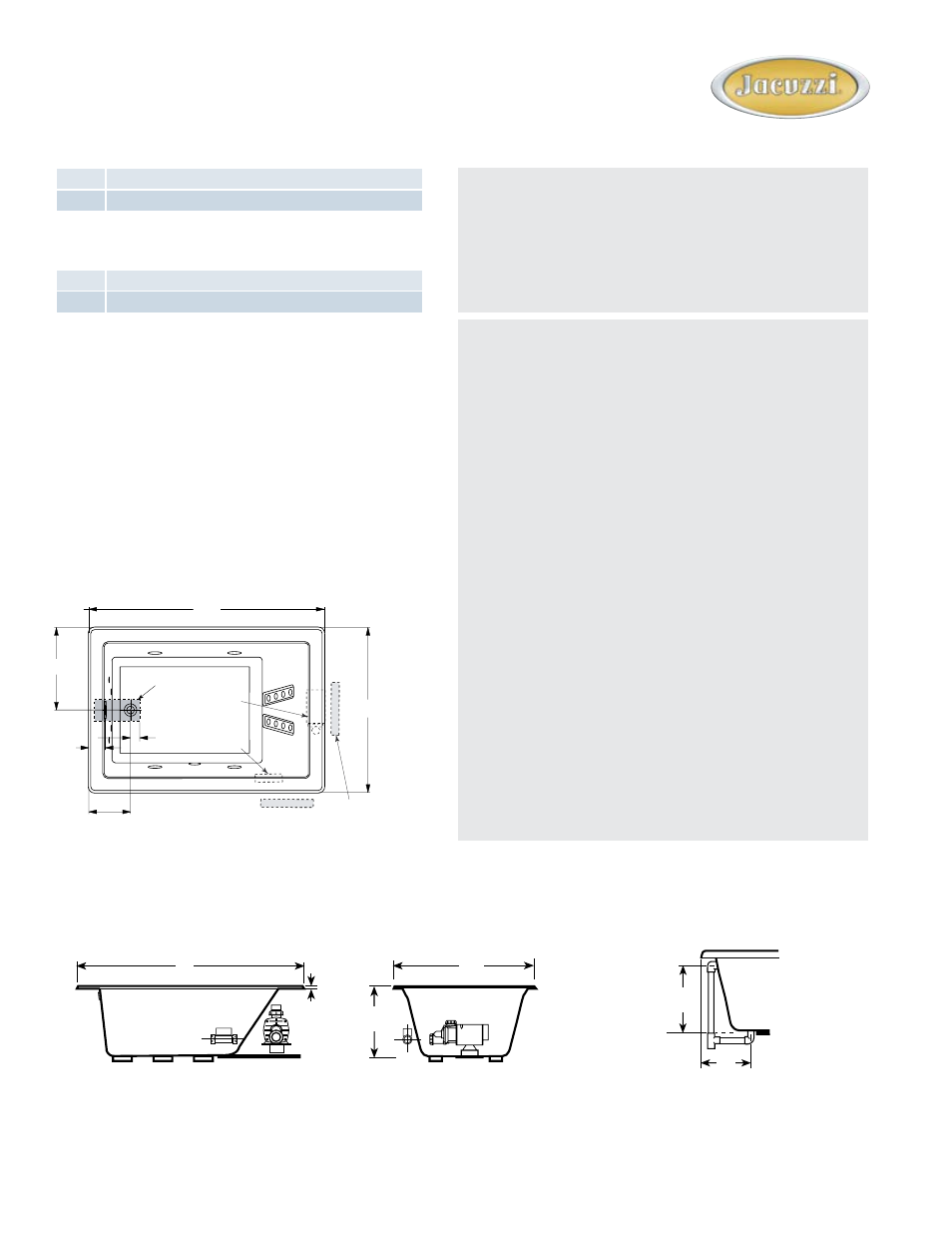

ELARA 6042 L H
60"
42"
21"
4.2"
10.6"
12" x 4"
2"
Heater
Motor
Opt. Service
Access
12" H x 18" L
Service Access
END VIEW
H
W
SIDE VIEW
L
1/2"
(13 mm)
(Motor)
(Heater)
DRAIN/OVERFLOW
A
B
product Shown: elara™ 6042 whirlpool bath
with Illumatherapy™ left hand model: ee90
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
