5
®
CR560X
Professional Tip
Fuse Adapters
No convenient power wire? Install a fuse
adapter having a spade connector.
Crimp on a matching connector and attach:
• Yellow wire–Fuse marked MAIN, BAT
or PWR
• Red wire–Fuse marked ACCY
(accessory), or RADIO

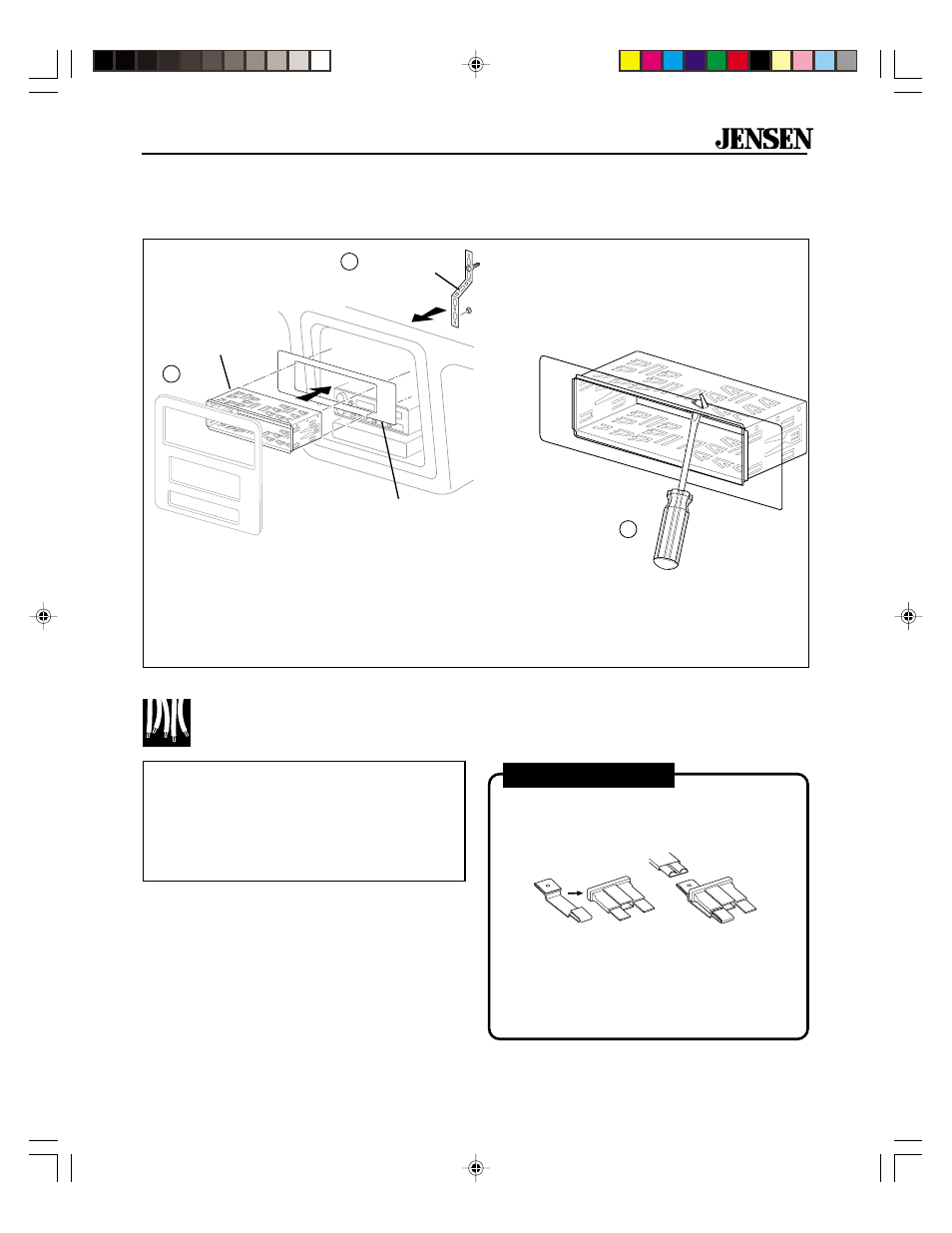

1. Install adapter if necessary. Install half-
sleeve into adapter from front of dash. It
will be a tight fit.
2. Bend over tabs where possible to secure
half-sleeve to adapter or inside of dash.
3. Install strap to strut under dash. Secure
strap to an existing screw.
Install Half-sleeve
Not needed for ISO-DIN (Japanese vehicle) installation.
Wiring
Important
If wiring connections are made wrong, the
unit will not operate properly and it could be
damaged. Follow the installation instructions
carefully, or have the installation handled by
an experienced technician.
Fuse
Adaptor
Fuse
1
Half-sleeve
(supplied)
Adapter
(optional)
Support Strap
(supplied)
2
3
