12 Cordless Impact Wrench Operator's Manual
Assembly

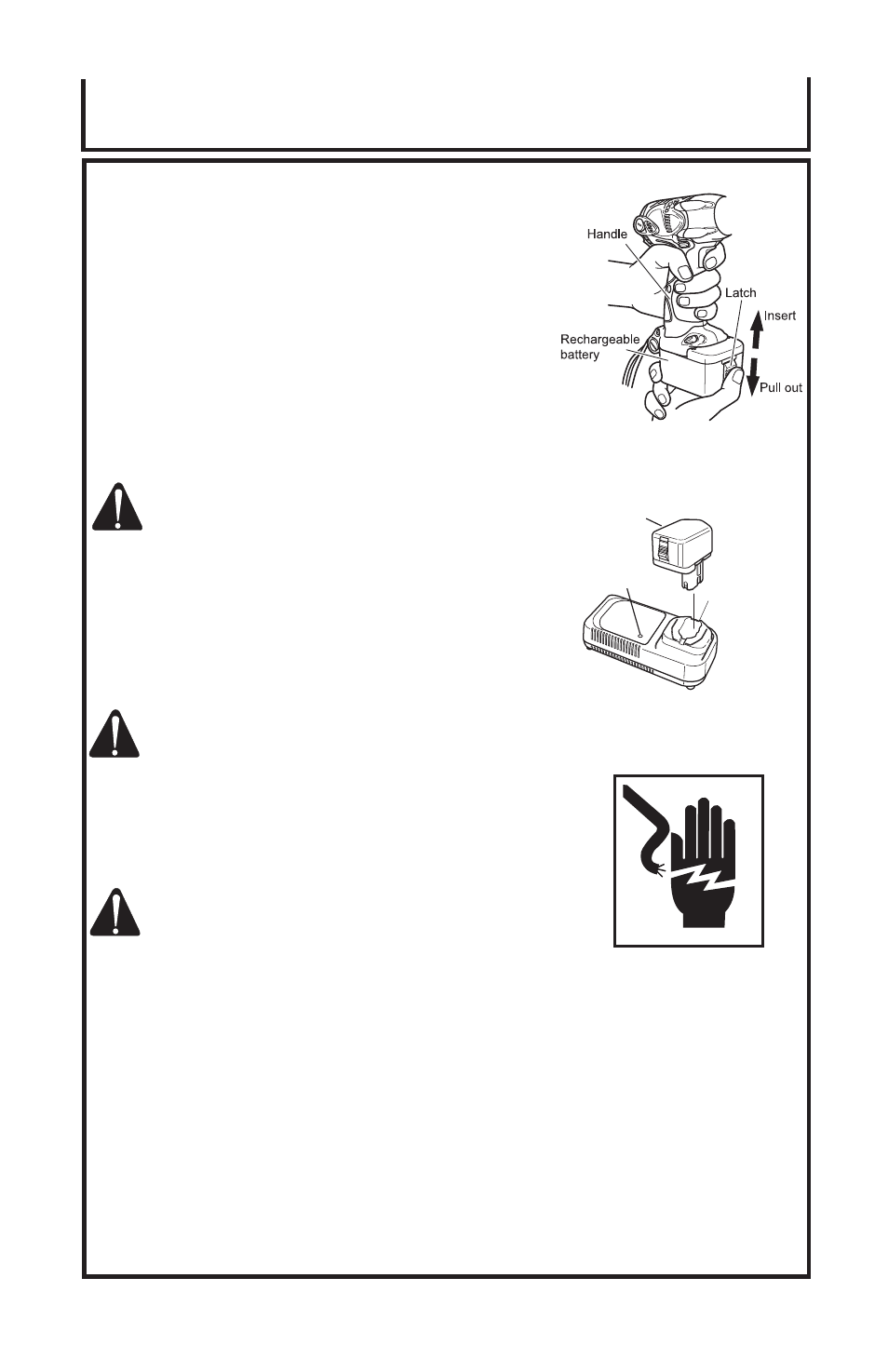

REMOVAL AND INSTALLATION OF BATTERY:
How to install the battery:
Align the battery with the groove in tool handle and slip it
into place. Always insert it all the way until it locks in place
with a little click. If not, it may accidentally fall out of the
tool, causing injury to you or someone around you. (Fig. 3)
How to remove the battery:
Withdraw battery from the tool handle while pressing the
latch on the side of the battery. (Fig. 3)
CHARGING METHOD:
NOTE: Before plugging into the receptacle, make sure
of the following points. The power source voltage
is stated on the nameplate. The cord is not
damaged.
WARNING: DO NOT CHARGE AT VOLTAGE
HIGHER THAN INDICATED ON THE
NAMEPLATE. IF CHARGED AT
VOLTAGE HIGHER THAN
INDICATED ON THE NAMEPLATE,
THE CHARGER WILL BURN UP.
1. Insert the plug of battery charger into the receptacle.
When the plug of battery charger has been inserted
into the receptacle, pilot lamp will blink in red. (At 1-
second intervals)
WARNING: DO NOT USE THE ELECTRICAL
CORD IF DAMAGED. HAVE IT
REPAIRED IMMEDIATELY.
2. Insert the battery into the battery charger. Insert the
battery into the battery charger as shown in Fig. 4.
Make sure it contacts the bottom of the battery
charger.
CAUTION: IF THE BATTERIES ARE INSERTED
IN THE REVERSE DIRECTION, NOT
ONLY RECHARGING WILL BECOME
IMPOSSIBLE, BUT IT MAY ALSO
CAUSE PROBLEMS IN THE
CHARGER SUCH AS A DEFORMED
RECHARGING TERMINAL.
(Fig. 3)
(Fig. 4)
Rechargeable
Battery
Pilot Lamp
Battery Installation
Hole
