Luxura™ 5 Whirlpool Bath with Integral Skirt
Model: N600, N605
Luxura™ 5 Bath with Integral Skirt
Model: N601, N606
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.
Ordering Information
Product Code:
N600 Luxura™ 5 Whirlpool Bath with
Integral Skirt Left Hand
N605 Luxura™ 5 Whirlpool Bath with
Integral Skirt Right Hand
N606 Luxura™ 5 Bath with Integral
Skirt Right Hand
N601 Luxura™ 5 Bath with Integral
Skirt Left Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
HTC Jet Trim Kit: #D095
BMH Jet Trim Kit: #J869
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 32” W x 20-1/4” H
(1524 mm) L x (813 mm) W x (514 mm) H
Drain/Overflow
A: 15-1/4” (387 mm) B: 8-1/4” (210 mm)
Cutout
Not Applicable
Total Weight
N600, N605: 700 lb (318 kg) / 53 lb/sq. ft. (259 kg/m 2 )
N601, N606: 675 lb (306 kg) / 51 lb/sq. ft. (247 kg/m 2 )
Operating Gallonage
N601, N605: 42 U.S. Gal. (159 Liters)
N601, N605: Max. 50 U.S. Gal. (189 Liters)
Product Weight
N600, N605: 100 lb (45 kg)
N601, N606: 75 lb (34 kg)
Skirt Mounting
Integral
Electrical Specifications Models N600, N605 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models N600, N605 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
2-1/2"
12" x 5"*
8-1/4"
Motor
2-1/2" 5-1/4"
60"
15-3/8"
32"
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
L
1"
H
W
SIDE VIEW END VIEW
#FR60 12/06
DRAIN/OVERFLOW
A
B

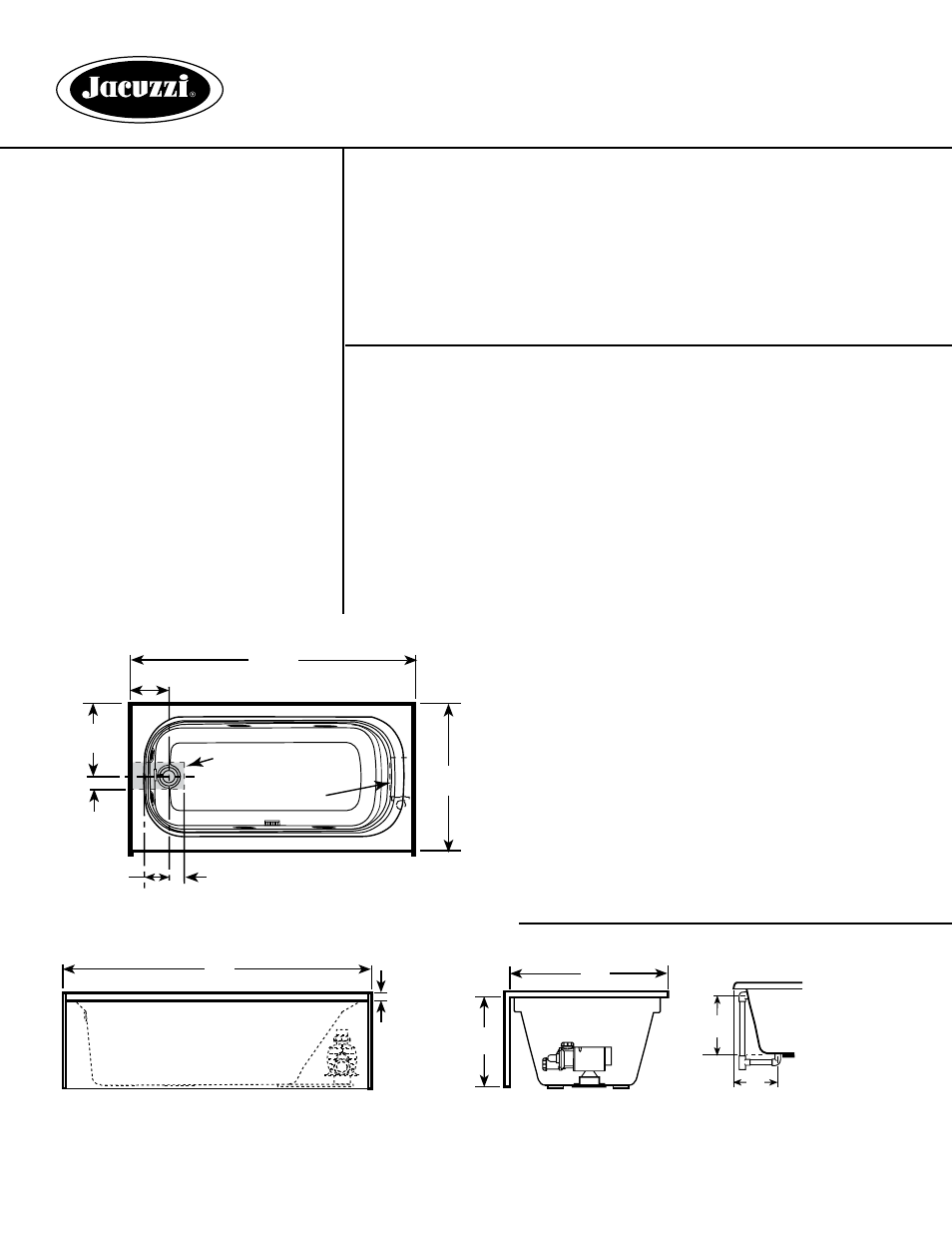

Product Shown: Luxura™ 5 Whirlpool Bath with Integral Skirt Left Hand Model: N600
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
