Jacuzzi Mito BE20 - Manual (Page 2)

Mito
™
6
pure air® ii Bath
technical Specifications
DiMenSionS
72” L x 42” W x 21-1/2” H
(1829 mm) L x (1067 mm) W x (546 mm) H
Drain/overflow
A: 17-1/2” (445 mm) B: 11-7/8” (302 mm)
Cutout
70” x 40”
total weight
866 lb (393 kg) /41 lb/sq. ft. (201 kg/m2)
operating gallonage
60 U.S. Gal. (227 Liters)
proDuCt weight
116 lb (53 kg)
Skirt Mounting
Not Available
eleCtriCal SpeCifiCationS
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
heater
No water heater is available on this unit. Blower has integral air heater.
© 2007 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
inStallation noteS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FQ98000 01/08

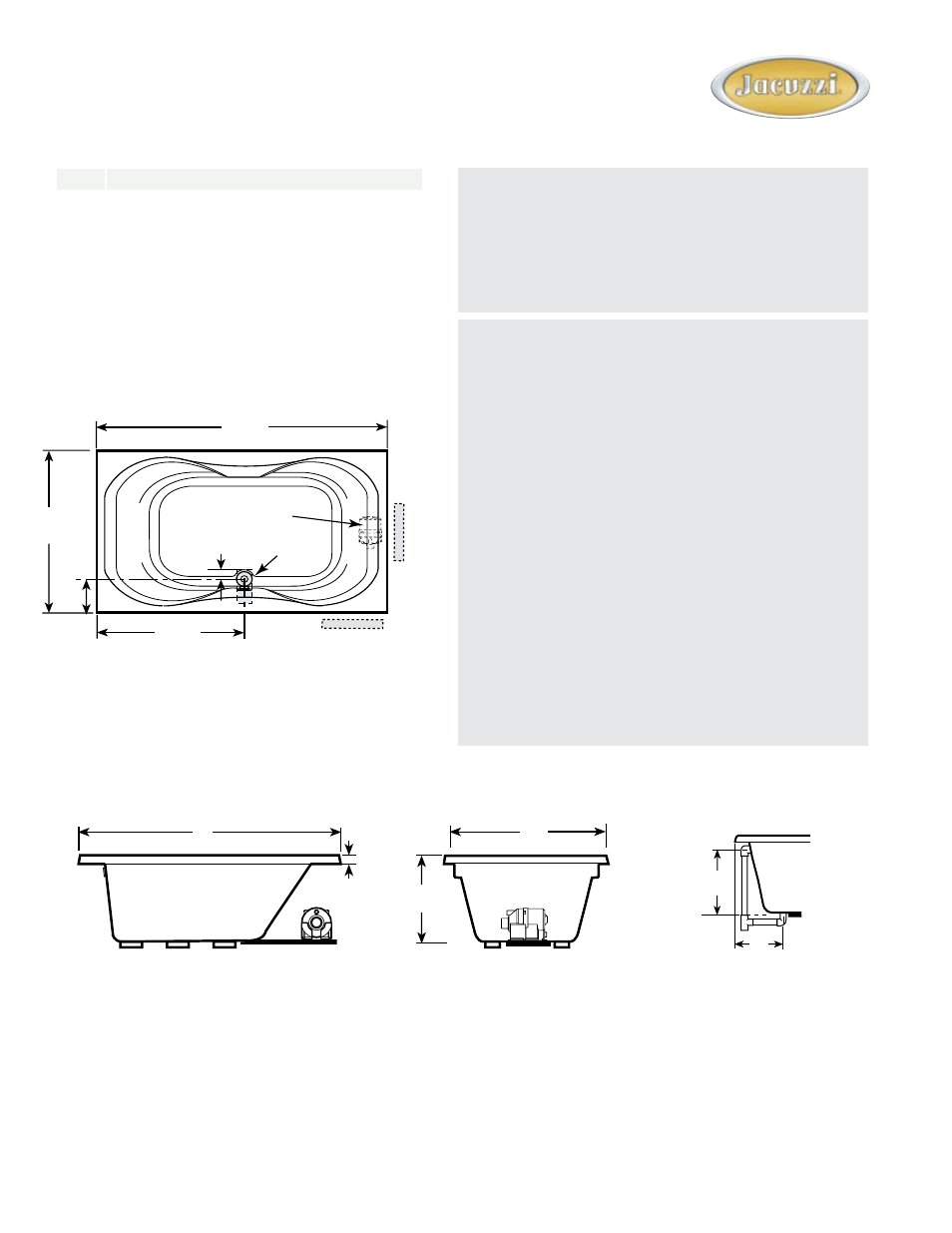

Be20 Mito™ 6 Pure Air ® II Bath, Right Hand
• Center Drain Location
• Accessories / Hardware:
Trim Kit Rotary: #BN21
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
36"
42"
72"
11-7/8"
10" x 4" 2"
Blower
12" H x 18" L Service Access
Opt. Service Access
END VIEW
H
W
SIDE VIEW
L
2"
(51 mm) (Blower)
DRAIN/OVERFLOW
A
B
product Shown: Mito © 6 pure air® ii™ Bath
right hand Shown Model: Be20
* Measurements inside unit represent cutout in
floor to allow for drain/overflow.
Minimum Service Access dimensions given.
