Luna® Plus Whirlpool Bath
Model: BP75, EN80
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
BP75 Luna® 6 Whirlpool Bath
Right Hand
EN80 Luna® 6 Whirlpool Bath
Left Hand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Trip-Lever Drain Kit: #K606
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit (2 Req’d): #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
72” L x 42” W x 23” H
(1829 mm) L x (1067 mm) W x (584 mm) H
Drain/Overfl ow
A: 19-1/8” (486 mm) B: 11” (279 mm)
Cutout
Template provided P/N P819000
Total Weight
1176 lb (533 kg) / 56 lb/sq. ft. (273 kg/m 2 )
Operating Gallonage
96 U.S. Gal. (363 Liters)
Max. 103 U.S. Gal. (379 Liters)
Product Weight
126 lb (57 kg)
Skirt Mounting
Not Available
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™:120 VAC, 15 AMP, 60 Hz.
Heater (Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
42"
72"
3"
36"
11"
13" X 6"*
Motor
12" H x 18" L
Service Access
Heater
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
END VIEW
H
W
SIDE VIEW
L
2"
(51 mm)
LUNA PLUS
(Heater)
(Motor)
#FR58 06/07
DRAIN/OVERFLOW
A
B

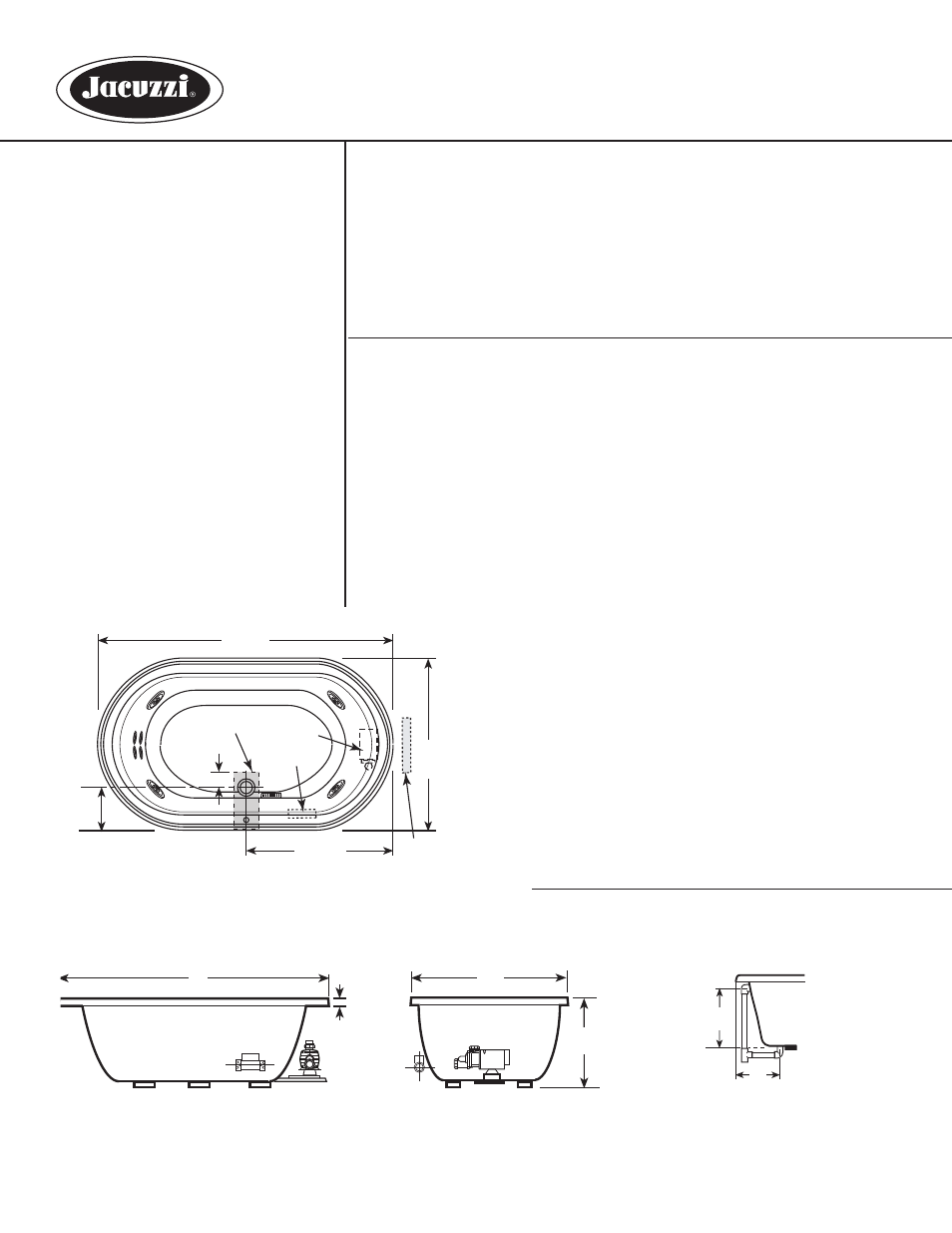

Product Shown: Luna® 6 Plus Whirlpool Bath Right Hand Model: BP75
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
