Fresco® Whirlpool Bath

Model: BM90, BM95

Fresco® Bath

Model: BM85

Installation Notes

Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifi cations do not apply to non-jetted baths.

Ordering Information

Product Code:

BM90 Fresco® Whirlpool Bath

Right Hand

BM95 Fresco® Whirlpool Bath

Left Hand

BM85 Fresco®

Bath

• Center Drain Location
• Accessories / Hardware:

Trip-Lever Drain Kit: #X559

Rotary Drain Kit, 26” Cable: #8730

TheraPro™ Jet Rings Kit: #D095

AccuPro™ Jet Rings Kit: #P556

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

Technical Specifi cations

Dimensions

71-1/2” L x 42” W x 27-1/4” H
(1816 mm) L x (1067 mm) W x (692 mm) H

Drain/Overfl ow

A: 20-1/8” (511 mm) B: 11-3/4” (299 mm)

Cutout

Template Provided P/N: P188000

Total Weight

BM90, BM95: 921 lb (418 kg) / 44 lb/sq. ft. (216 kg/m

2

)

BM85: 896 lb (406 kg) / 43 lb/sq. ft. (210 kg/m

2

)

Operating Gallonage

63 U.S. Gal. (239 Liters)

Product Weight

BM90, BM95: 146 lb (66 kg)
BM85: 121 lb (55 kg)

Skirt Mounting

Not Available

Electrical Specifi cations

Models BM90, BM95 only

Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional)

Models BM90, BM95 only

Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

71-1/2"

42"

11-3/4"

2"

12" x 4"

Motor

12" H x 18" L
Service Access

4-1/2"

35-3/4"

© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com

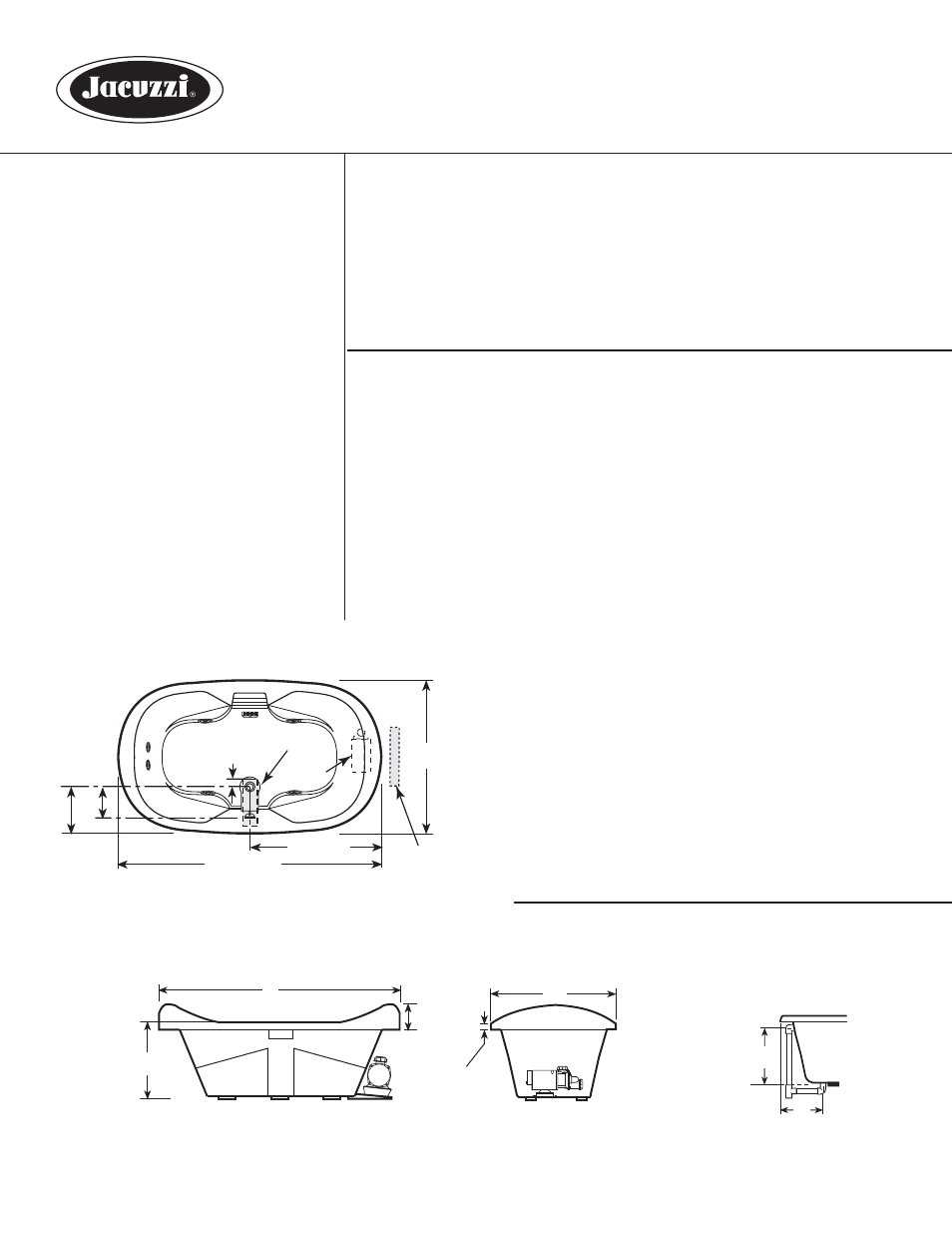

SIDE VIEW

END VIEW

L

H

7-1/2"
(191 mm)

W

2"

(51 mm)

#FR42 07/07

DRAIN/OVERFLOW

A

B

Product Shown: Fresco® Whirlpool Bath Right Hand Shown Model: BM90
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
