Elara
™
6042
purE air® Bath
technical Specifications
DimEnSionS
60” L x 42” W x 26” H
(1524) mm L x (1067) mm W x (660) mm H
Drain/ovErflow
A: 18-1/2” (470 mm) B: 10.6” (269 mm)
Cutout
58” x 40” & undermount template DQ50000
total wEight
1126 lb. (511 kg) / 65 lb/ft
2 (319 kg/m 2 )
opErating gallonagE
73 U.S. Gal. (276 Liters)
Min 53 U.S. Gal. (201 liters)
Max 92 U.S. Gal. (348 liters)
proDuCt wEight
200 lb (91 kg)
Skirt mounting
Not Available
ElECtriCal SpECifiCationS
requires a dedicated gfCi protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
hEatEr (StanDarD)
No water heater is available on this unit. Blower has integral air heater.
© 2008 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
inStallation notES
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#GD81000 01/08
ga70 Elara™ 6042 Pure Air® Bath, Left Hand
ga80 Elara™ 6042 Pure Air® Bath, Right Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
Sch 40, Rotoary Drain Kit: #DA34
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze

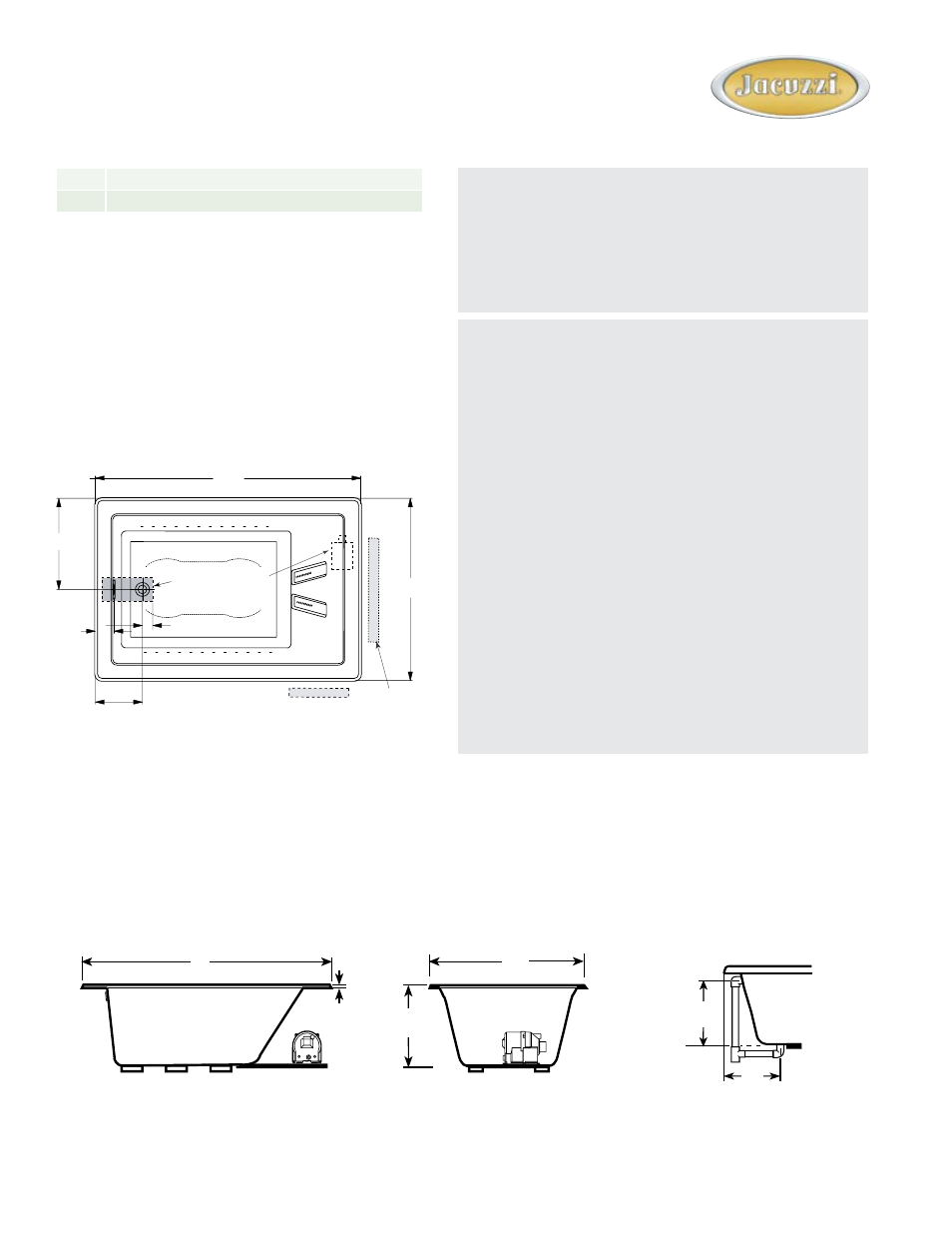

DRAIN/OVERFLOW
A
B
product Shown: Elara™ 6042 pure air®
left hand model: ga70
* Measurements inside unit represent
cutout in floor to allow for drain/overflow.
END VIEW
H
W
SIDE VIEW
L
1/2"
(13 mm)
(Blower)
60"
42"
21"
4.2"
9.6"
12" x 4"
2"
Opt. Service
Access
12" H x 24" L
Service Access
Blower
Elara™ 6042,
Left Hand
