SPECIFICATIONS:
TABLE SAW ET-3409-J:
Motor Series Commutator Motor
Power Source Single-Phase AC 60Hz
Voltage (Volts) 115
Full-load Current (Amp) 15
Applicable saw blade Outside Dia. 10" (255 mm)
Hole Dia. 5/8" (15.9 mm)
No load speed 5000 RPM
Max. sawing dimensions: 90° Max. Height 3"
Bevel: 45° Max. Height 2-1/2"
Net Weight 64 lbs (29 kg)
Cord 3 Conductor type cable 6.6 ft (2 m)
UNPACKING:

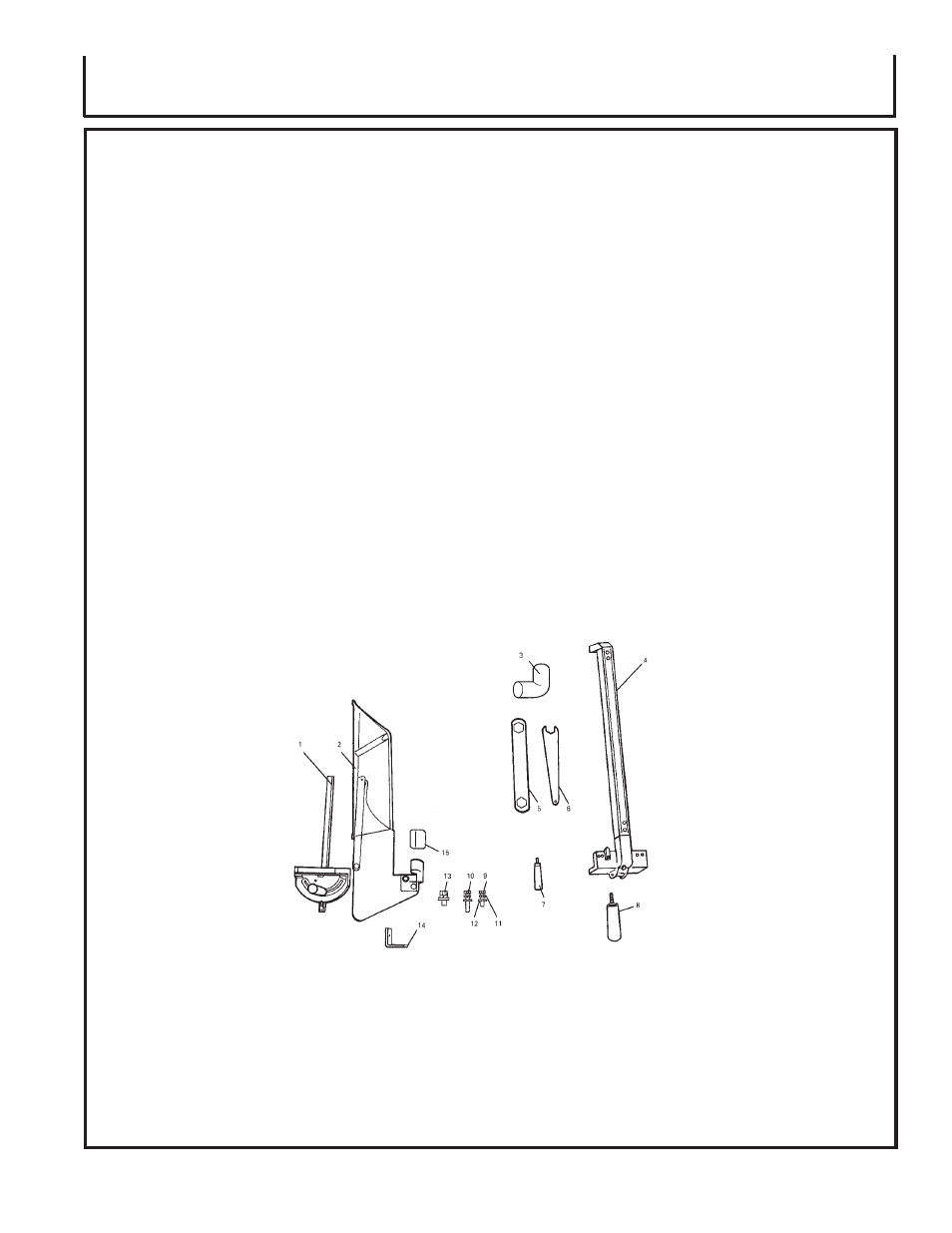

The parts illustrated in Fig. 3 described are packaged together with the tool. When unpacking, carefully
confirm that all parts are accounted for.
Functional Description
1. Miter Gauge (1 piece)
2. Saw Blade Guard and Spreader Assembly (1 piece)
3. Elbow (1 piece)
4. Rip Fence (1 piece)
5. Hex. Wrench (1 piece)
6. Wrench (1 piece)
7. Handle Bar (1 piece)
8. Grip (1 piece)
9. 6 x 90 mm Bolt (1 piece)
10. 6 x 110 mm Bolt (1 piece)
11. 6 mm Spring Washer (2 pieces)
12. 6 mm Flat Washer (2 pieces)
13. 8 x 20 mm Bolt w/ Washers (4 pieces)
14. Set Plate (4 pieces)
15. Cusion (1 piece)
Fig. 3
