Nova™ 6 Whirlpool Bath

Model: 6800, 9235

Nova™ 6 Bath

Model: 7263

Installation Notes

Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.

Ordering Information

Product Code:

6800 Nova™ 6 Whirlpool Bath

Left Hand

9235 Nova™ 6 Whirlpool Bath

Right Hand

7263 Nova™ 6 Bath

• Left or Right Hand Drain Location
• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

4 X HTC Jet Trim Kit: #D095

2 X BMH Jet Trim Kit: #J869

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(849) – Oil Rubbed Bronze

Technical Specifications

Dimensions

72” L x 42” W x 20-1/2” H
(1829 mm) L x (1067 mm) W x (521 mm) H

Drain/Overflow

A: 14-3/4” (375 mm) B: 8-1/2” (216 mm)

Cutout

70” x 40”

Total Weight

6800, 9235: 876 lb (397 kg) / 42 lb/sq. ft. (204 kg/m

2

)

7263: 847 lb (384 kg) 40 lb/ / sq. ft. (197 kg/m

2

)

Operating Gallonage

62 U.S. Gal. (235 Liters)
Max. 77 U.S. Gal. (291 Liters)

Product Weight

6800, 9235: 110 lb (50 kg)
7263: 81 lb (37 kg)

Skirt Mounting

Optional, U-Frame

Electrical Specifications

Models 6800, 9235 only

Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

Heater (Optional

Models 6800, 9235 only

)

Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

72''

21''

2''

2''

42''

14" x 4"*

10-7/8''

8-3/8''

Motor

12" H x 18" L
Service Access

Opt. Service Access

© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com

END VIEW

H

W

SIDE VIEW

L

2"

#FR93 12/06

DRAIN/OVERFLOW

A

B

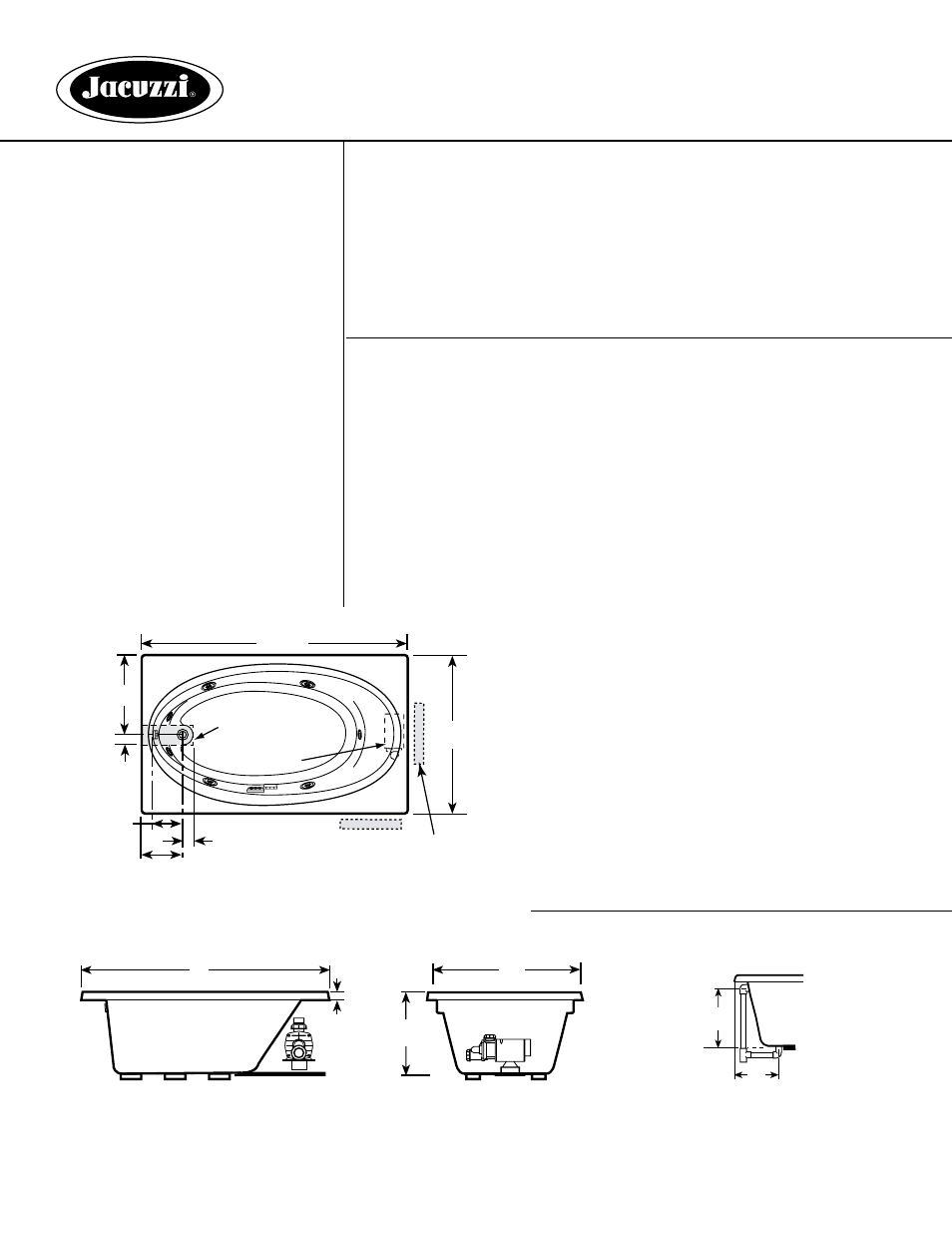

Product Shown: Nova™ 6 Whirlpool Bath Left Hand Model: 6800
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
