Technical Specifications
DimenSionS
66” L x 36” W x 26” H
(1676 mm) L x (914 mm) W x (660 mm) H
Drain/overflow
A: 18-1/2” (470 mm) B: 9.6” (244 mm)
CuTouT
64” (1626 mm) x 34” (864 mm) & undermount template DQ51000
ToTal weighT
847 lb. (384 kg) / 51.3 lb/ft
2 (250 kg/m 2 )
operaTing gallonage
79 U.S. Gal. (299 Liters)
Min. 75 U.S. Gal. (284 liters)
Max. 83 U.S. Gal. (314 liters)
proDuCT weighT
164 lb. (74 kg)
SkirT mounTing
Not Available
eleCTriCal SpeCifiCaTionS
requires a dedicated gfCi protected separate circuit.
Blower: 120VAC, 20AMP, 60 Hz.
Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.
heaTer (STanDarD)
requires a dedicated gfCi protected separate circuit.
RapidHeat™: P/N BN60000
© 2008 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com
inSTallaTion noTeS
Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.
#FR98000 01/08
elara
™
6636
Salon ™ Spa
DX60
Elara™ 6636 Salon™ Spa with Chromatherapy —
Right Hand
• Right Hand Drain Location
• Accessories / Hardware:
TheraPro™ Jet Rings Kit: #D095
AccuPro™ 2 Jet Rings Kit: # P556
Sch 40, Rotary Drain Kit: #DA34
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
66"
36"
18 "
4.2"
9.6"
12" x 4"
Motor
Opt. Service
Access
12" H x 24" L
Service Access
Heater
2"
Blower
END VIEW
26"
36"
SIDE VIEW
66"
1/2"
(13 mm)
(Motor)
(Inlet Heater)
(Blower)
DRAIN/OVERFLOW
A
B

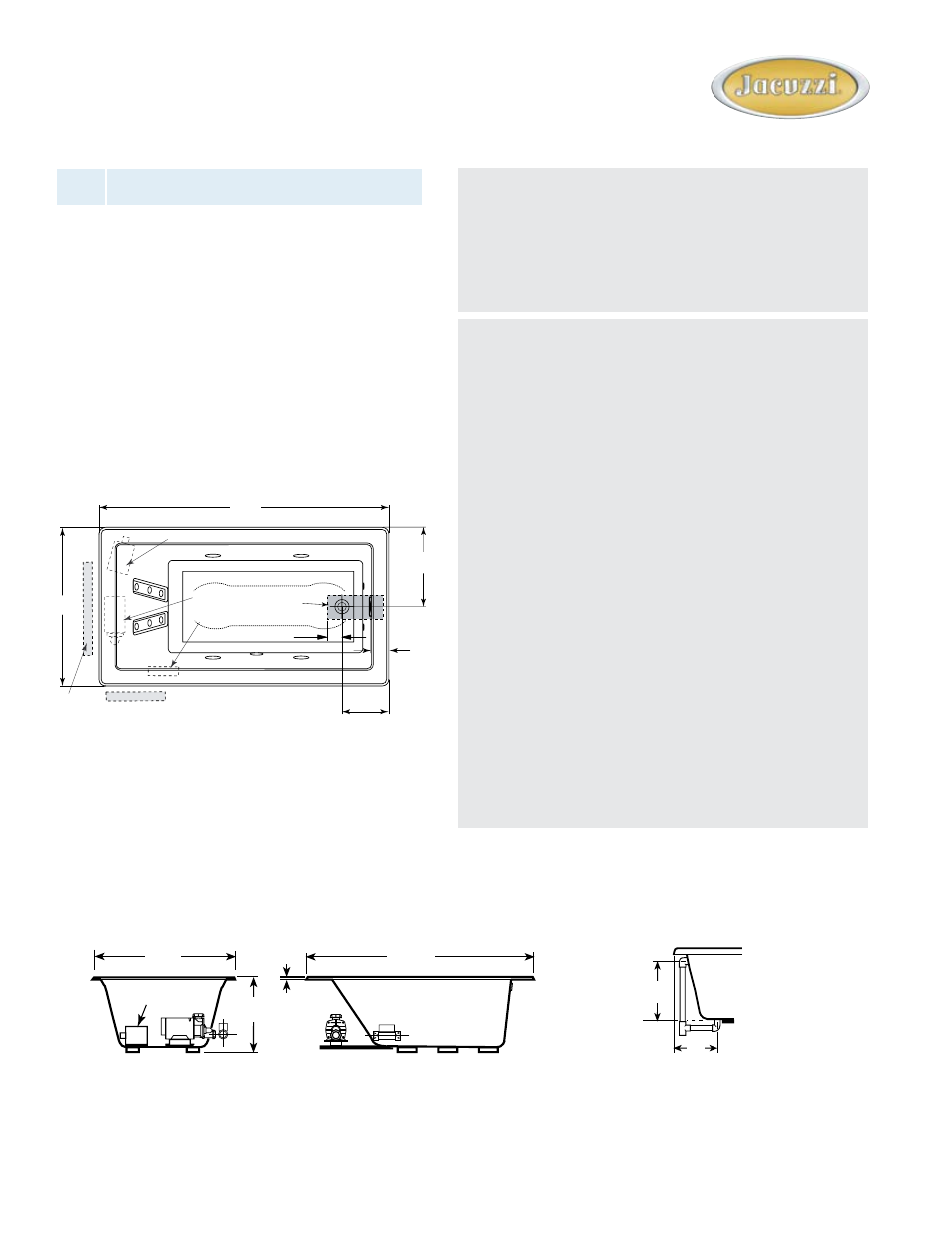

product Shown: elara™ 6636 Salon™ Spa with
Chromatherapy right hand model: DX60
* Measurements inside unit represent cutout in floor
to allow for drain/overflow.
Minimum Service Access dimensions given.
