Allusion

®

6636

SAlon™ SpA BAth

technical Specifications

DimenSionS
66” L x 36” W x 26” H
(1829 mm) L x (914 mm) W x (660 mm) H

DrAin/overflow
A: 17-3/8” (441 mm) B: 11-15/16” (210 mm)

Cutout
Template Provided Part Number: BY20000

totAl weight
881 lb (400 kg) / 53 lb/sq. ft. (261 kg/m

2

)

operAting gAllonAge
65 U.S. Gal. (246 Liters)
Min. 55 U.S. Gal. (208 Liters)
Max. 75 U.S. Gal. (284 Liters)

proDuCt weight
200 lb (91 kg)

Skirt mounting
Not Available

eleCtriCAl SpeCifiCAtionS

All require a dedicated gfCi protected separate circuit(s).
Blower: 120VAC, 20AMP, 60 Hz. .
Motor/Pump and RapidHeat™: 240VAC, 20AMP, 60 Hz.

heAter (StAnDArD)
RapidHeat™: P/N BN60000

© 2007 Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino, CA 91710 • www.jacuzzi.com

inStAllAtion noteS

Refer to installation instructions included with fixture before
beginning installation. Please confirm product availability and
specifications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT
TO CHANGE WITHOUT NOTICE.

product Shown: Allusion

®

6636 Salon

Spa

right hand (Bk30) Shown.
* Measurements inside unit represent cutout in

floor to allow for drain/overflow.

Minimum Service Access dimensions given.

#FR08000 10/07

Bk30

Allusion

®

6636 Salon

Spa Right Hand with

Chromatherapy lighting

Bt80

Allusion

®

6636 Salon

Spa Right Hand with

Illumatherapy™ jet lighting

• Left and Right Drain Location

• Accessories / Hardware:

4 X HTC Jet Rings Kit: #D095

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

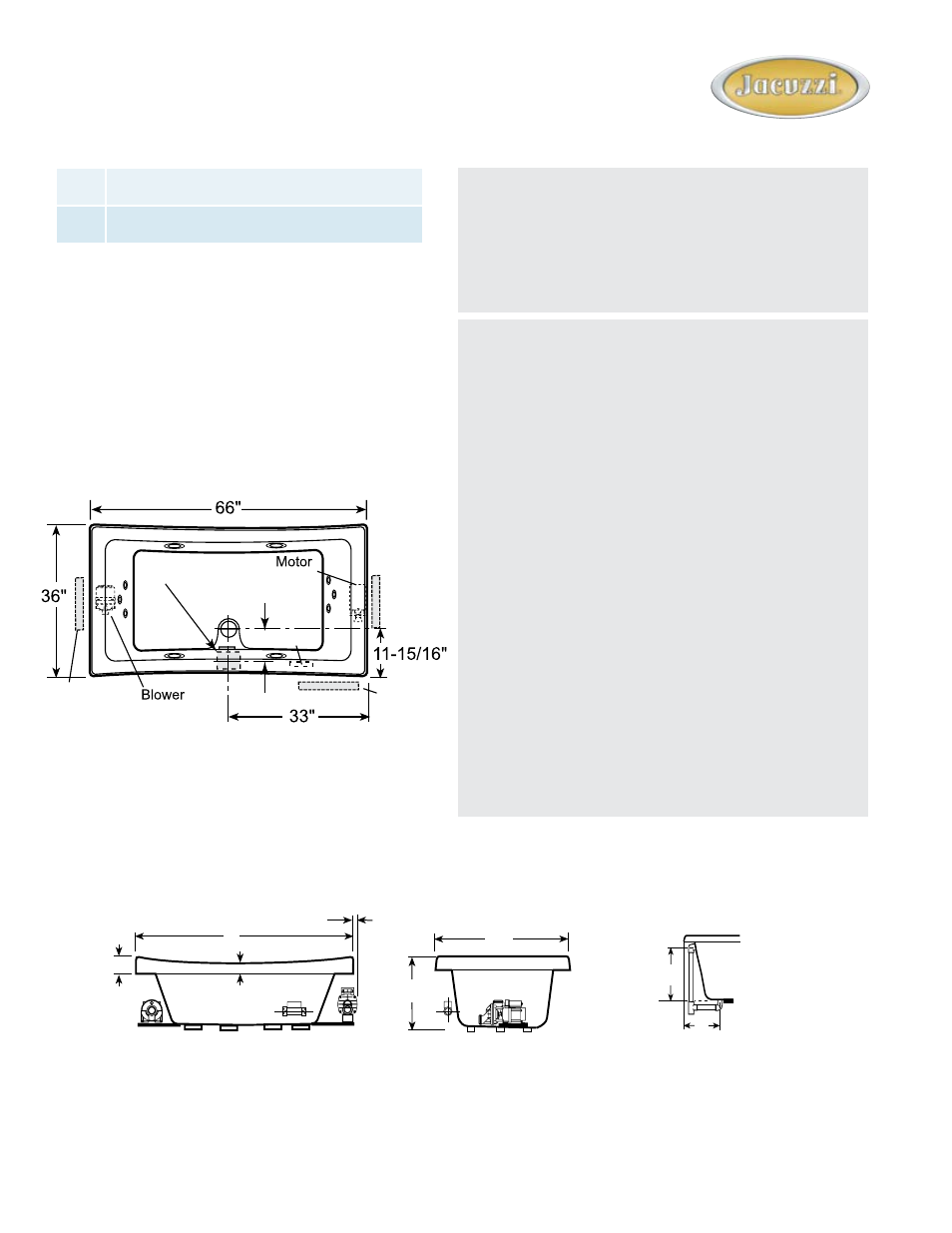

Heater
