8

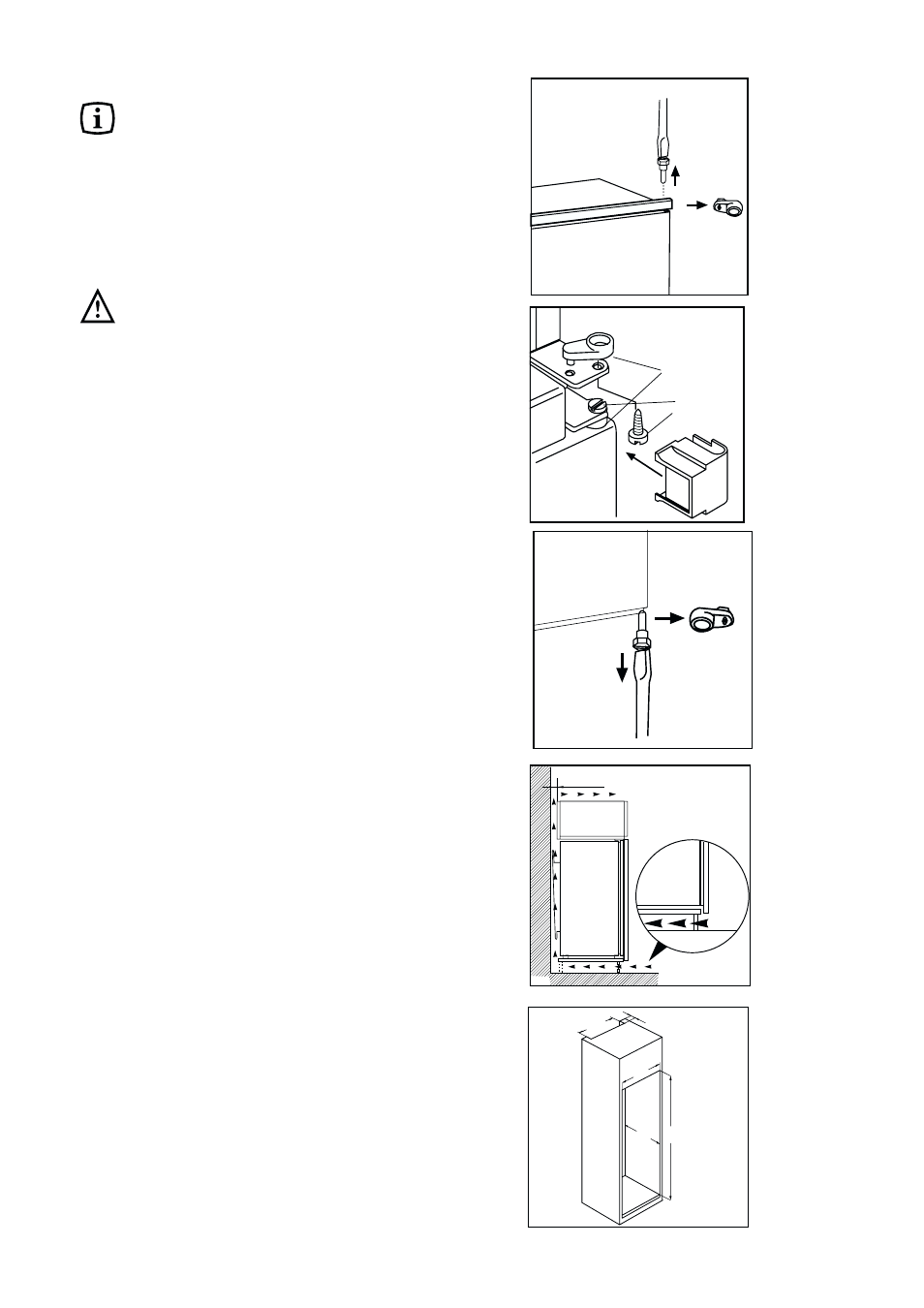

Building In
Recess dimensions
Height (1)
1780 mm
Depth (2) 550 mm
Width (3) 560 mm
To ensure adequate ventilation, allow the clearances
shown in figure.
50 mm
min.
200 cm 2
200 cm 2
min.
D567
It is necessary that the cabinet has a ventilation
recess with the following dimensions:
depth 50
mm
width 540 mm
The appliance is supplied with the
right or left door opening.To change the
opening direction of the door proceed as
in the following instructions before
installing it.
1. Unscrew the upper pin and remove the spacer
2. Remove the upper door
3. Remove the hinge cover (A). Unscrew the pins
(B) and the spacers (C) and refit them on the
middle hinge of the opposite side. Snap the hinge
cover (A).
4. Refit the upper door, the upper pin and the
spacer on the opposite side
5. Unscrew the lower pin and remove the spacer
and refit them on the opposite side
PR01
540
50
3
2 1
B
C
A
The oven must be installed according to the instructions
supplied on p. 6-11 and by qualified and competent
personnel to the relevant National Standards.
Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.
