Capella® 60 Corner Pure Air® II Bath w/Integral Skirt
Model: EA20
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
EA20 Capella® 60 Corner Pure Air®
II Bath w/ Integral Skirt Right-
Hand
• Center Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
60” L x 60” L x 20-1/2” H
(1524 mm) L x (1524 mm) L x (521 mm) H
Drain/Overfl ow
A: 18” (457 mm) B: 12-1/8” (308 mm)
Cutout
NA
Total Weight
1217 lb (552 kg) / 56.8 lb/ft 2 (277 kg/m 2 )
Operating Gallonage
73 U.S. Gal. (276 Liters),
Min. 55 U.S. Gal. (208 Liters)
Max. 90 U.S. Gal. (341 Liters)
Product Weight
170 lb (77 kg)
Skirt Mounting
Integral
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
Heater
No water heater is available on this unit. Blower has integral air heater.
27"
46-5/8"
27"
60"
43-1/8"
6"
60"
34-15/16"
14" X 4"*
33-1/2"
- Junction Box
Blower
90˚ 90˚
90˚
12" H x 18" L
Service Access
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
1"
(25 mm)
20-1/2"

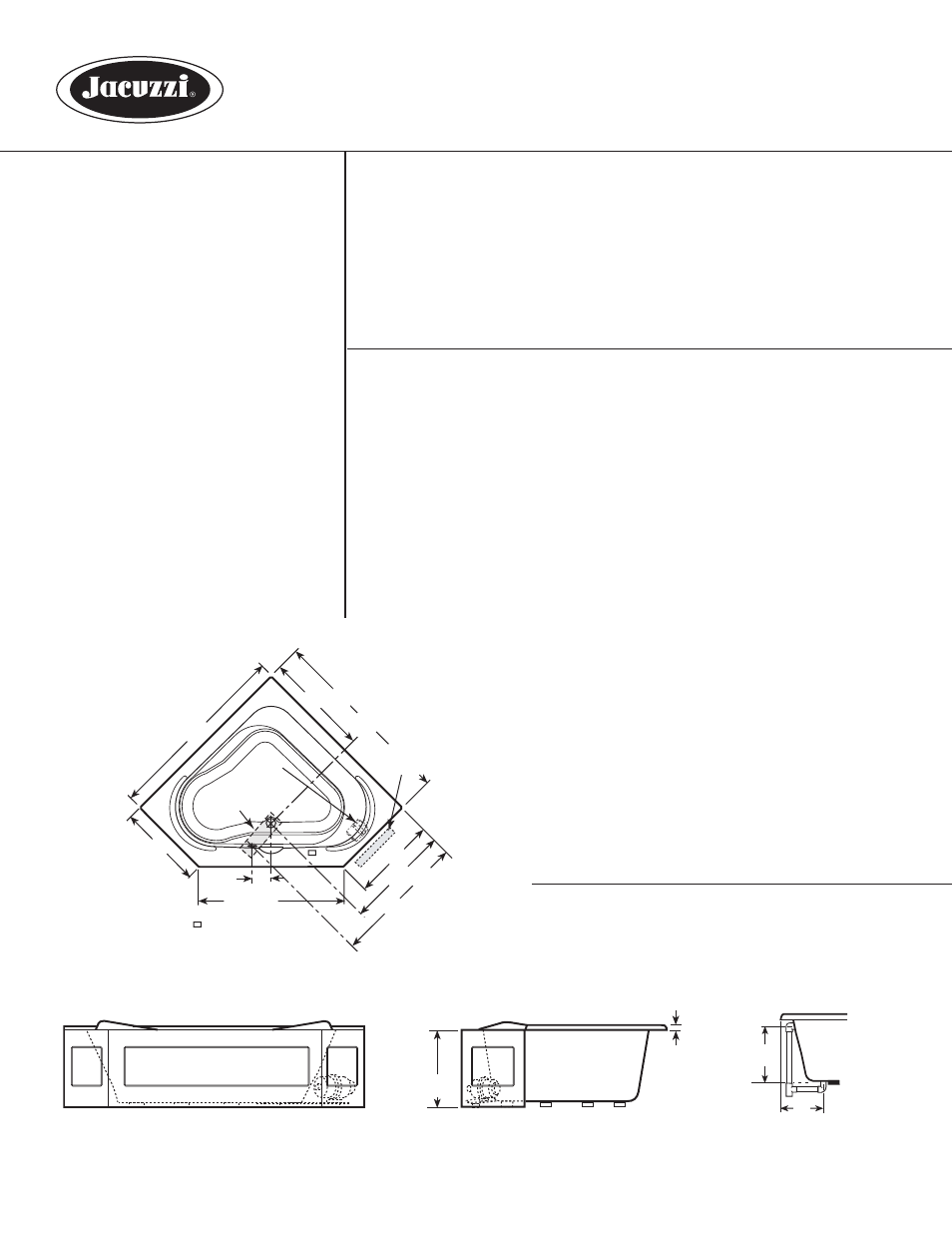

FRONT VIEW SIDE VIEW
# FQ89 06/07
Product Shown: Capella® 60 Corner Pure Air II Bath with Integral Skirt Model: EA20
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
DRAIN/OVERFLOW
A
B
