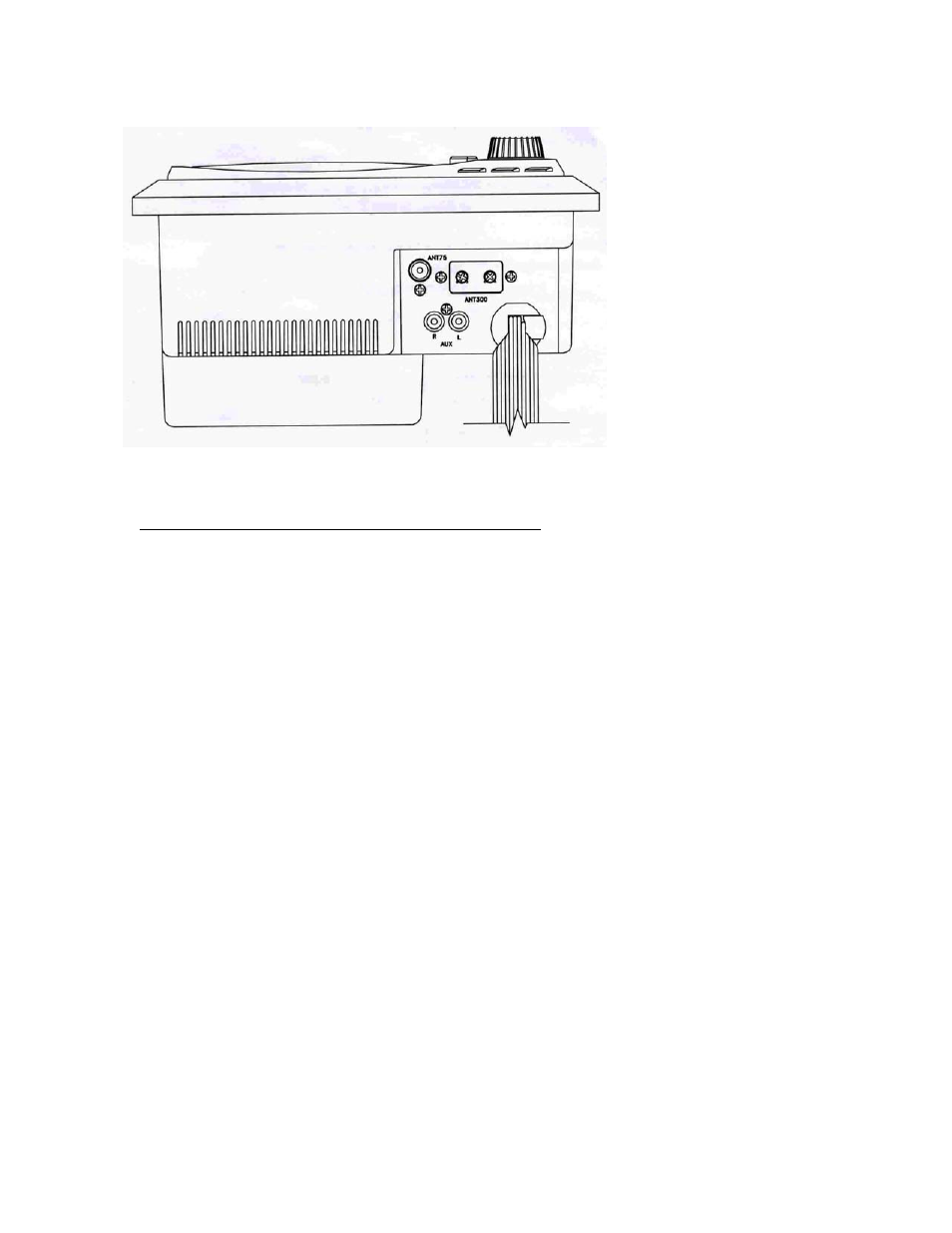

Hook up wiring color code.
WIRING COLOR CODE
COLOR
FUNCTION
ORANGE/WHITE STRIPE
+12VDC IGNITION POWER
GREEN/WHITE STRIPE
+12VDC BATTERY POWER
BLACK/WHITE STRIPE
POWER GROUND (-12VDC)
WHITE
LEFT (A) SPEAKER (+)
VIOLET
LEFT (A) SPEAKER (-)
BLUE
RIGHT (A) SPEAKER (+)
LIGHT GREEN
RIGHT (A) SPEAKER (-)
RED
LEFT (B) SPEAKER (+)
VIOLET/BLACK STRIPE
LEFT (B) SPEAKER (-)
YELLOW
RIGHT (B) SPEAKER (+)
LT GREEN/BLACK STRIPE
RIGHT (B) SPEAKER (-)
RCA CONNECTOR
RCA JACK (AUX-R)
AUDIO IN (R)
RCA JACK (AUX-L)
AUDIO IN (L)
WIRE/PLUG COLOR
BLACK / YELLOW
VIDEO OUT
GRAY / YELLOW
VIDEO IN
BLACK / RED
AUDIO OUTPUT (R)
BLACK / WHITE
AUDIO OUTPUT (L)
