You can use a camcorder as the source player and your video
recorder as the recorder.
Edit From A
Camcorder
MAKE CONNECTIONS
1
Connect the camcorder’s AUDIO/VIDEO OUT connec-
tors to the recorder’s AUDIO/VIDEO input connectors.
SET RECORDER’S INPUT
MODE
2
Press NUMBER key "0" and/or TV PROG. to select
depending on the connector being used — “AU-1” for
the AV1 IN/OUT connector, or “AU-2” for the AV2 IN/
DECODER connector.
● When using the AV2 IN/DECODER connector, make
sure "AV2 SELECT" is set to "AV2" (
੬
pg. 30).
START CAMCORDER
3
Engage its Play mode.
START RECORDER
4
Engage its Record mode.

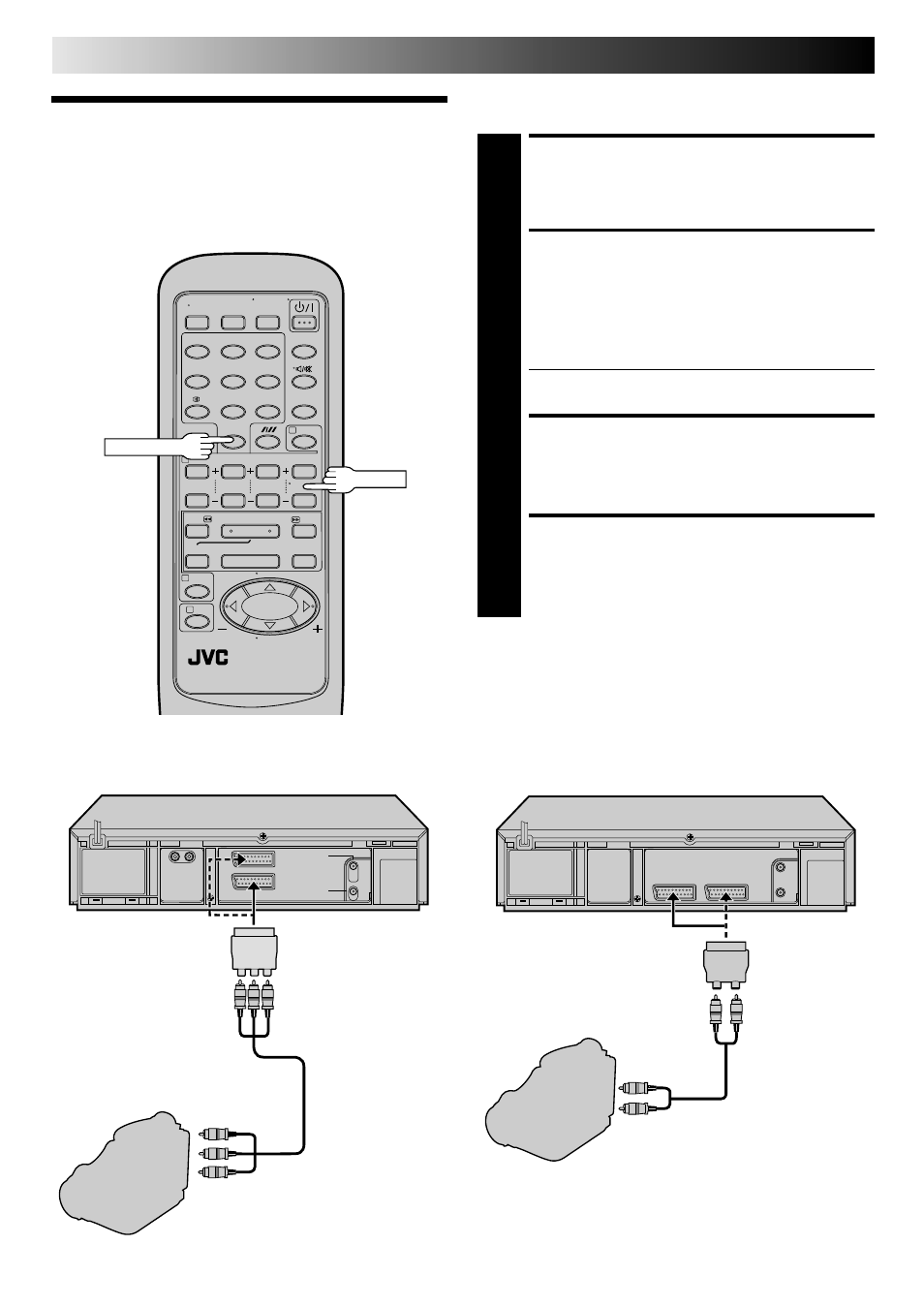

EDITING (cont.)
Player
Back of HR-J648E/EH
Your recorder
Cable adapter
VIDEO OUT
AUDIO OUT
Camcorder
Camcorder
Player
AUDIO OUT
VIDEO OUT
Cable adapter
Back of HR-J448E/J248E
Your recorder
Audio/Video signals
Audio/Video signals
¶
1
4
¢
7
3
8
¡
1
2
3
4
5
6
7
/
8
0
9
4
2
1
3
TV PROG.
NUMBER "0"
