30

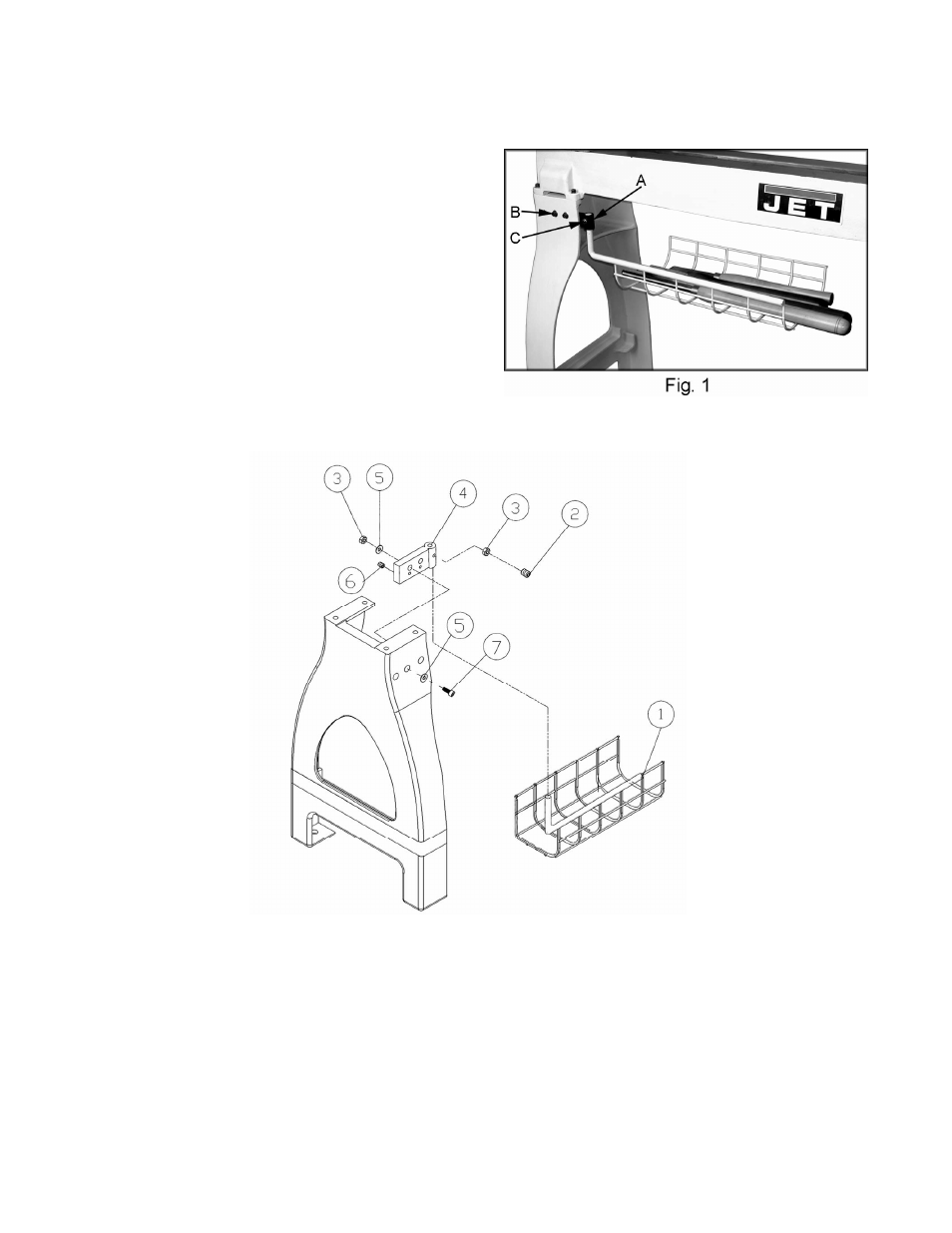

Tool Basket
1. Mount the bracket (A, Fig. 1) to the inside of
the lathe leg with two 5/16”-18 x 1-1/2” Hex
Socket Cap Screws, four 5/16” flat washers
and two 5/16” hex nuts (B, Fig. 1).
2. The two setscrews, on the bracket should be
below the bolts and accessible for
adjustment.
3. Place the arm of the tool basket into the
bracket and tighten with a 5/16”-18 x 5/8” set
screw and a 5/16” hex nut (C, Fig. 1). Line
up the notch in the arm with the setscrews
so the tool basket can pivot.
4. Adjust the set screws on the bracket so that
the tool basket swings in a level manner. Tighten
the two hex socket cap screws.
Parts Breakdown
Basket Assembly
Index Part
No. No. Description Size Qty.
1.......... JWL1642-228 ...............Basket ................................................... ............................................... 1
2.......... TS-0270061..................Set Screw.............................................. 5/16”-18x5/8” .......................... 1
3.......... TS-0570021..................Hex Nut ................................................. 5/16” ....................................... 3
4.......... JWL1642-226 ...............Bracket.................................................. ............................................... 1
5.......... TS-0680032..................Flat Washer........................................... 5/16” ....................................... 4
6.......... TS-0267021..................Set Screw.............................................. 1/4”-20x1/4” ............................ 2
7.......... TS-0208081..................Hex Socket Cap Screw.......................... 5/16”-18x1-1/2” ....................... 2
