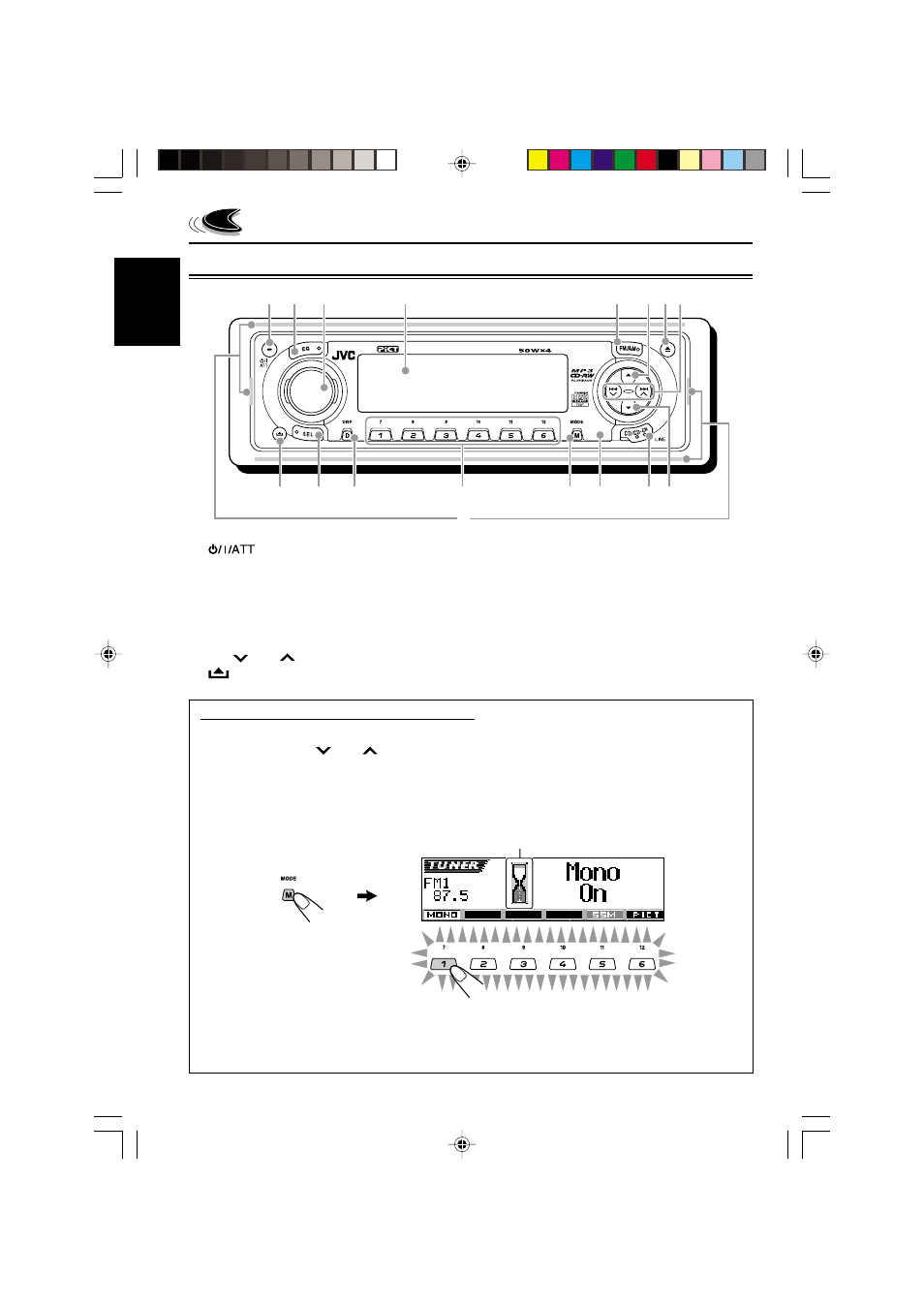

LOCATION OF THE BUTTONS
Control panel
1 (standby/on/attenuator) button
2 EQ (equalizer) button
3 Control dial
4 Display window
5 FM/AM button
6
5 (up) button
7 0 (eject) button
8 4 / ¢ buttons
9 (control panel release) button
p SEL (select) button
q D (DISP: display) button
w Number buttons
e M (MODE) button
r Remote sensor
t CD/CD-CH (CD changer) (LINE) button
y
∞ (down) button
u Trim illumination
Illumination Navigation for easy operations
If you use M (MODE), EQ (equalizer), or SEL (select), the display and some controls (such as the
number buttons,
4 / ¢ , 5/∞, and control dial) enter the corresponding control mode, then
the controls start flashing to lead you to the next operational steps. (Illumination Navigation)
• The display shows how these buttons function during this period.
Ex.: When you press number button 1 after pressing M (MODE), to operate the FM tuner.
To use these controls for original functions again, wait until the controls stop flashing without
using these controls.
• Pressing M (MODE) again also restores original functions. However, pressing SEL (select) or
EQ (equalizer) makes the unit into a different mode.
