28
EN

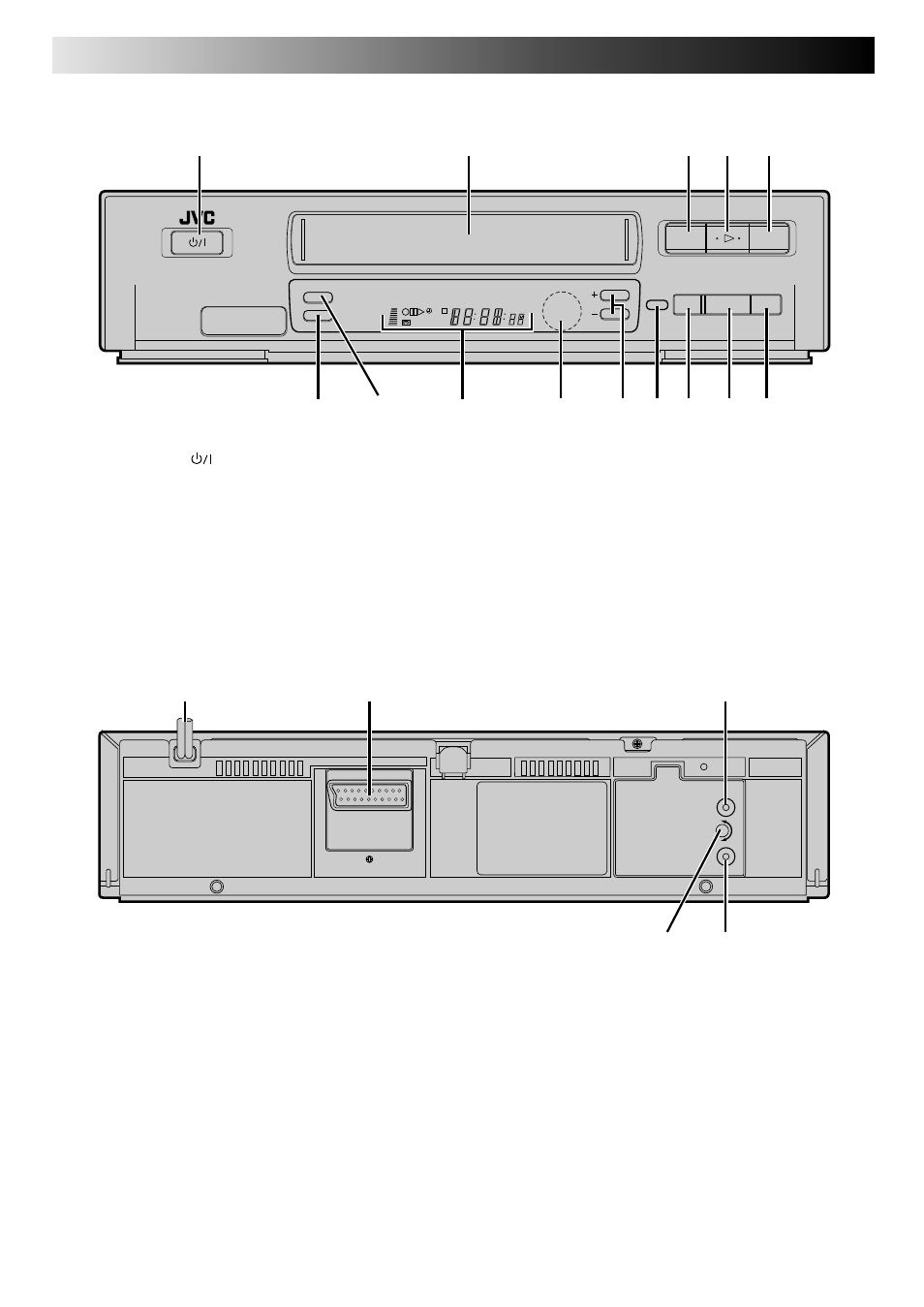

FRONT VIEW
INDEX
2 3
TV PROG
DISPLAY
q 6 5 / 8
COUNTER RESET
COUNTER MEMORY
STANDBY/ON
REVIEW M
1 2 4 3 5
6 0 9 ! @ # $ 8 7
1 STANDBY/ON Button ੬ pg. 4
2 Cassette Loading Slot
3 Rewind [REW] Button
੬ pg. 7
4 PLAY Button ੬ pg. 7
5 Fast Forward [FF] Button
੬ pg. 7
6 COUNTER MEMORY Button ੬ pg. 10
7 COUNTER RESET Button ੬ pg. 15
8 Display Panel ੬ pg. 29
9 Infrared Beam Receiving Window
0 TV PROG +/– Buttons
੬ pg. 11
! DISPLAY Button ੬ pg. 15
@ RECORD Button
੬ pg. 11
# STOP/EJECT Button ੬ pg. 7
$ PAUSE Button ੬ pg. 8
REAR VIEW
ANT. IN
RF OUT
40
32
AV1 IN/OUT
3 2
4 5
1
4 RF Output Channel Adjustment Screw ੬ pg. 5
5 RF OUT Connector
੬ pg. 3
1 Mains Power Cord ੬ pg. 3
2 AV1 IN/OUT Connector
੬ pg. 3, 19
3 ANT. IN Connector ੬ pg. 3
