JVC GR-DVX PRO - Manual (Page 56)

56
EN
PLAYBACK Basic Connections (Cont.)

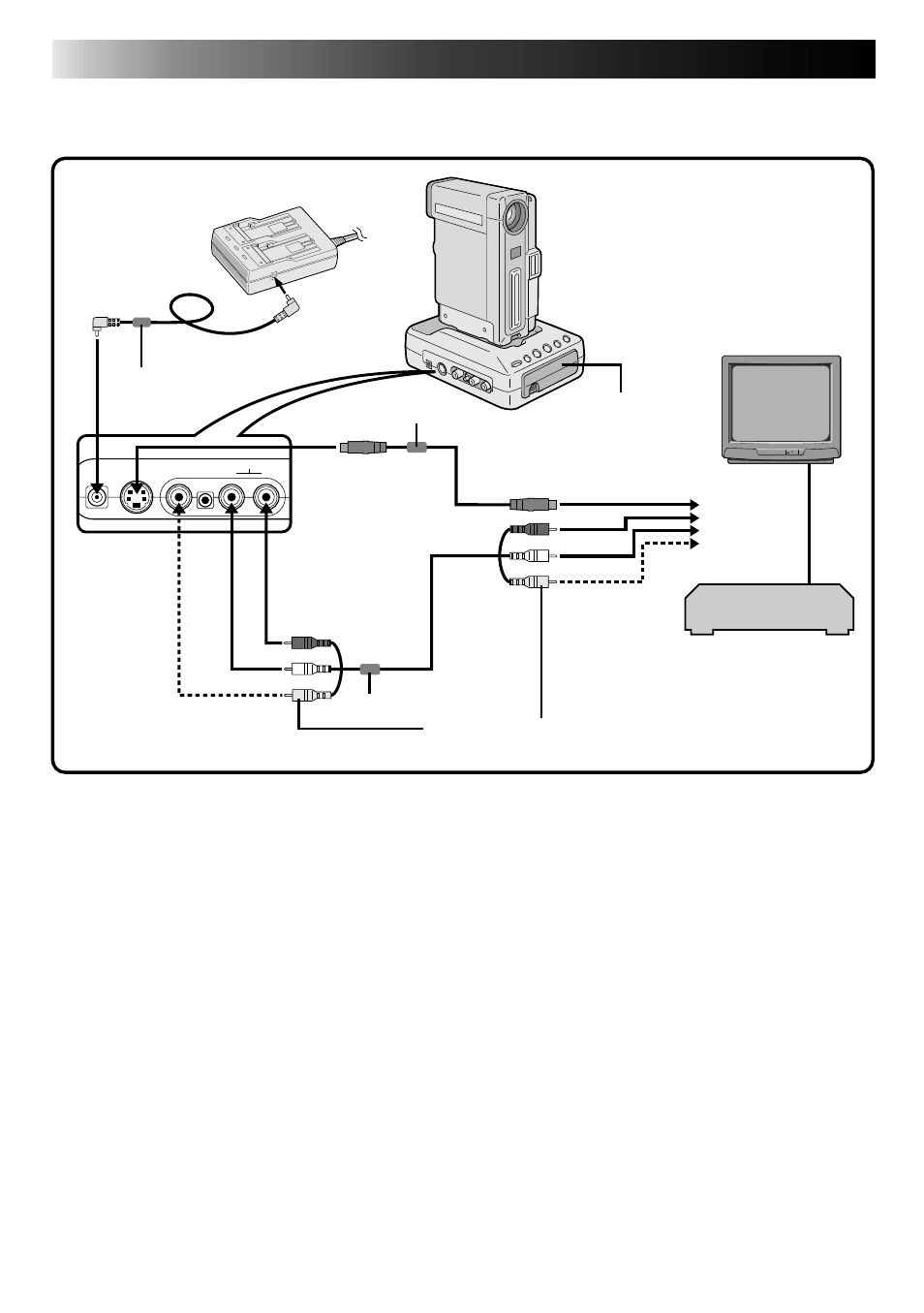

VCR/TV connection (using the Docking Station) (Cont.)
Please refer to your VCR and/or TV instruction manual(s) when connecting.
Red
White
Yellow
Red
Yellow
White
AC Power Adapter/Charger
VCR
To DC
output jack
DC cord
Core filter
Core filter
To VIDEO
input jack
(connect when the S-VIDEO cable is not used) To VIDEO output jack
To AUDIO input jacks (L/R)
To S-VIDEO input jack
Core filter
S-VIDEO cable (provided)
To S-VIDEO
output jack
To AUDIO
output jacks (L/R)
To DC
input jack
To
TV or VCR
Remote sensor
VIDEO/
AUDIO cable
(provided)
