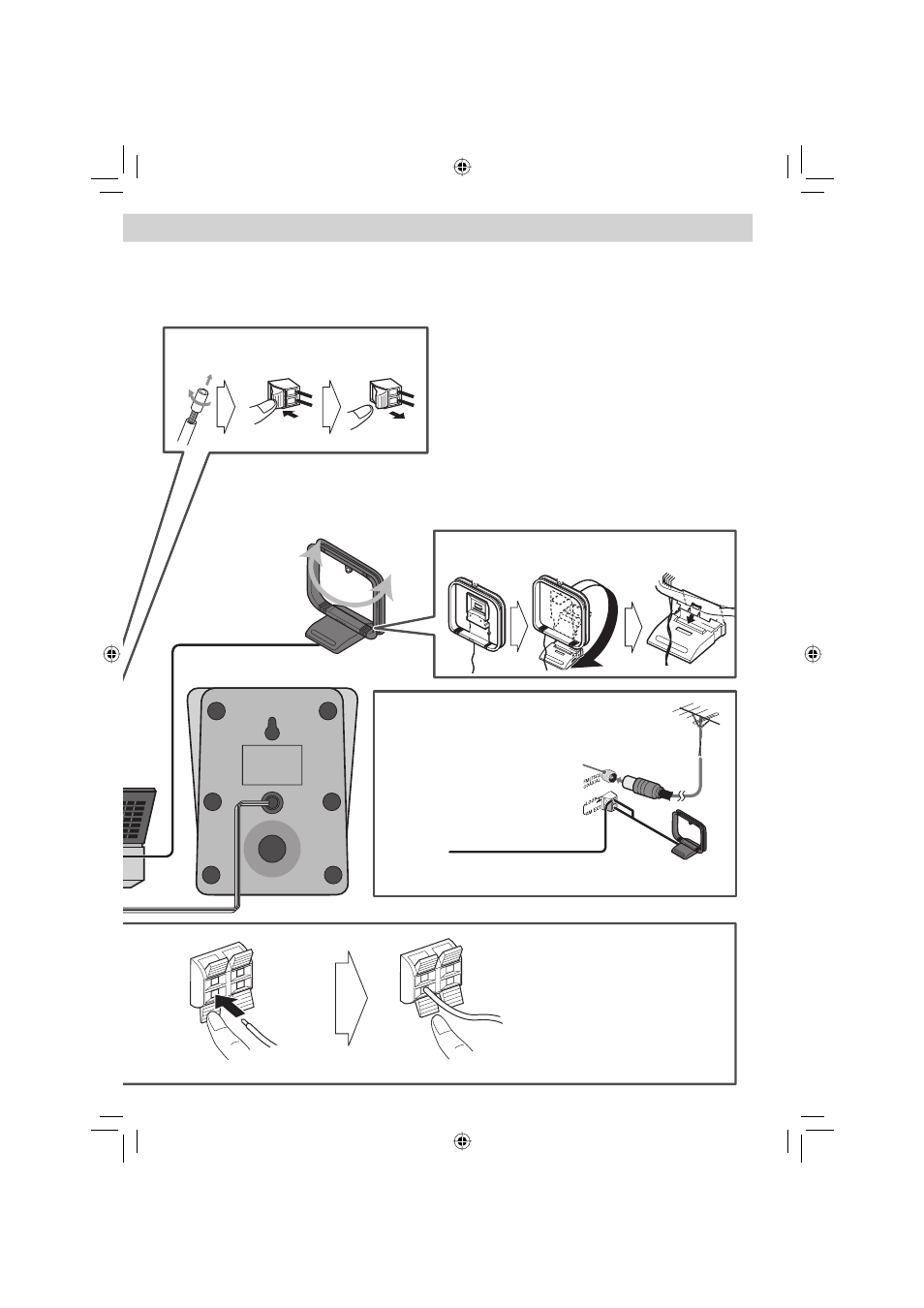

AM loop antenna (supplied)
Turn it until the best reception is obtained.
To assemble the AM loop antenna
To connect the AM loop antenna
NOTES
• DO NOT connect more than one speaker
to each terminal.
• DO NOT allow the conductor of the
speaker cords to be in touch with the
metallic parts of the System.
2 Insert
3 Release
Outdoor FM antenna
(not supplied)
For better FM/AM reception
1 Hold
2 Insert 3 Release
Disconnect the supplied FM antenna,
and connect to an outdoor FM antenna
using a 75
W wire with coaxial type
connector (IEC or DIN45325).
AM loop antenna
Keep it connected.
Vinyl-covered wire (not supplied)
Extend it horizontally.
