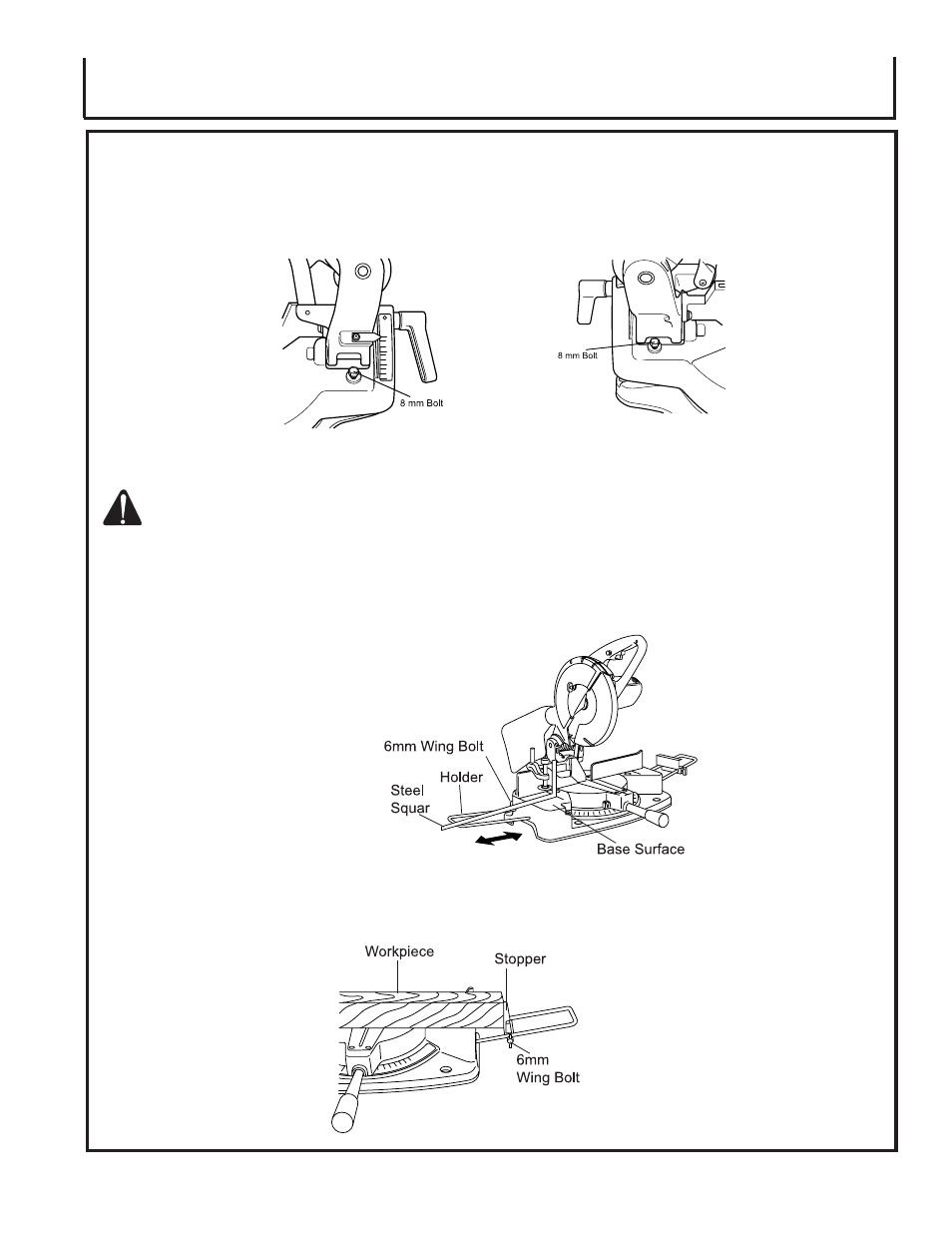

10-Inch Compound Miter Saw Operator's Manual

15

Operation

PRE-OPERATION (CONTINUED):

4.

Oblique angle:
Before the power tool is shipped from the factory, it is adjusted for 0° and left 45° bevel cutting angles. The
positioning and bevel cutting angle can be adjusted by changing the height of the 8 mm bolt. (Maximum bevel
cutting angle is 45°).

5.

Securing the workpiece:

WARNING:

ALWAYS CLAMP OR VISE, TO SECURE THE WORKPIECE TO THE FENCE;
OTHERWISE THE WORKPIECE MIGHT BE THRUST FROM THE TABLE
AND CAUSE BODILY HARM.

6.

Installing the holders:
The holders help keep longer workpieces stable and in place during the cutting operation.
a.

As indicated in Fig.11, use a steel square for aligning the upper edge of the holders with the base surface.

b.

After aligning, secure the holders with the 6mm wing bolts.

7.

Stopper for precision cutting:
The stopper facilitates continuous precision cutting in lengths of 10" to 16-1/2" (255mm to 420mm). To install
the stopper, attach it to the holder with the 6mm wing bolt as shown in Fig. 12.

(Fig. 9)

(Fig. 10)

(Fig. 11)

(Fig. 12)
