Luna® Whirlpool Bath
Model: BF75, EK75
Luna® Bath
Model: ES75
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
BF75 Luna® Whirlpool Bath
Right Hand
EK75 Luna® Whirlpool Bath
Left Hand
ES75 Luna® Bath
•Left and Right Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit: #P556
RapidHeat™ Heater: #S750
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
72” L x 42” W x 23” H
(1829 mm) L x (1118 mm) W x (584 mm) H
Drain/Overfl ow
A: 19-1/8” (486 mm) B: 11” (279 mm)
Cutout
Template Provided: P/N P819000
Total Weight
BF75, EK75: 1221 lb (554 kg) / 58 lb/ft 2 (283 kg/m 2 )
ES75: 1219 lb (554 kg) / 64 lb/ft 2 (313 kg/m 2 )
Operating Gallonage
96 U.S. Gal. (364 Liters)
BF75, EK75: Min. 55 U.S. Gal. (208 Liters)
Max. 103 U.S. Gal. (390 Liters)
Product Weight
BF75, EK75: 121 lb (55 kg)
ES75: 64 lb (29 kg)
Skirt Mounting
Not Available
Electrical Specifi cations Models BF75, EK75 only
Requires a dedicated GFCI protected seperate unit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models BF75, EK75 only
Requires a dedicated GFCI protected seperate unit.
RapidHeat™: P/N S750000

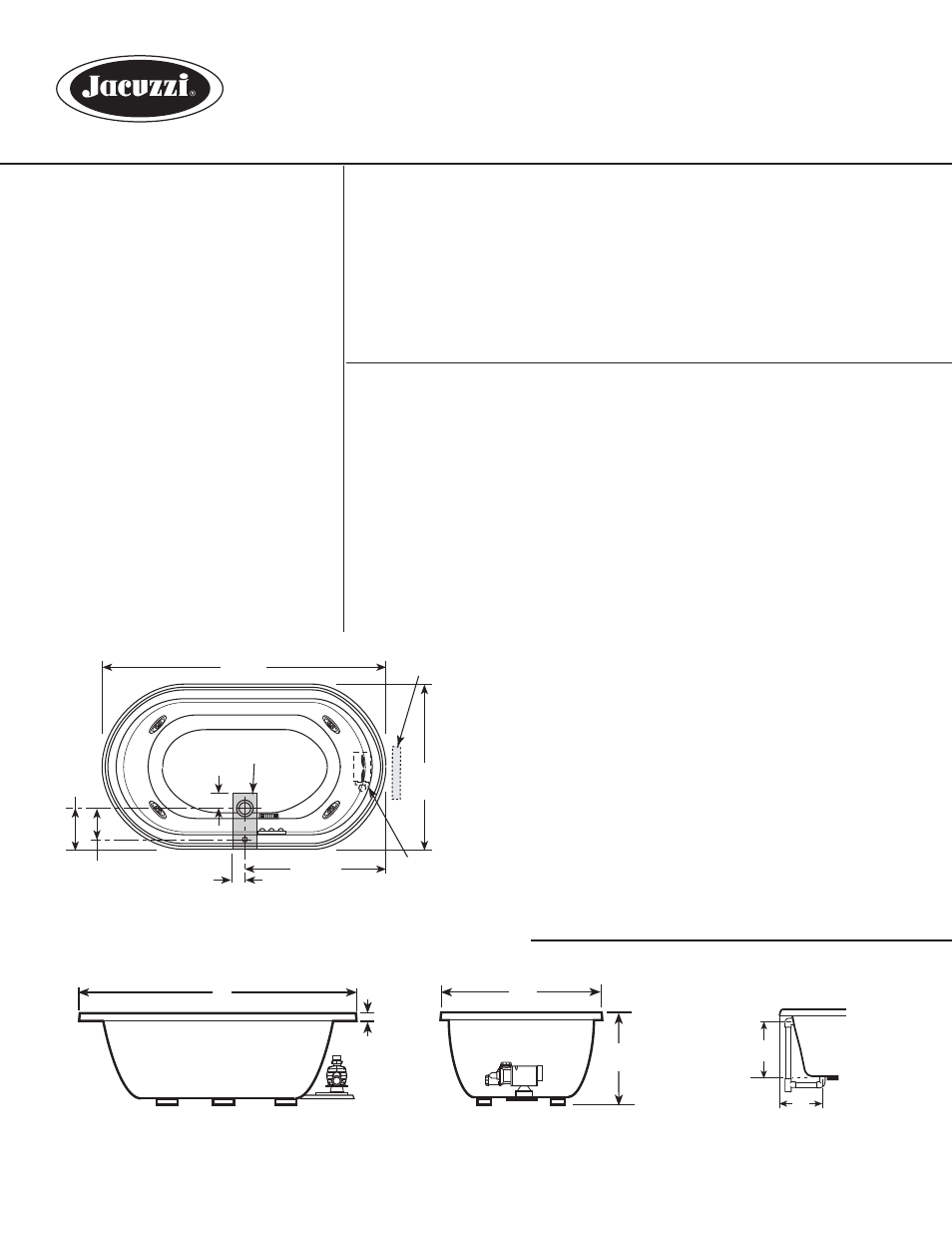

42"
72"
3"
36" 8 -11/16"
13" X 6"*
11"
3" Motor
12" H x 18" L
Service Access
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
END VIEW
H
W
SIDE VIEW
L
2"
(51 mm)
(Motor)
#FR65 06/07
DRAIN/OVERFLOW
A
B
Product Shown: Luna® Whirlpool Bath Right Hand Shown Model: BF75
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
Minimum Service Access dimensions given.
