Jacuzzi DESIGNER BATH SERIES User Manual
Page 16

ENGLISH
16
Jacuzzi Whirlpool Bath K339000X 3/06
INSTALLATION INSTRUCTIONS

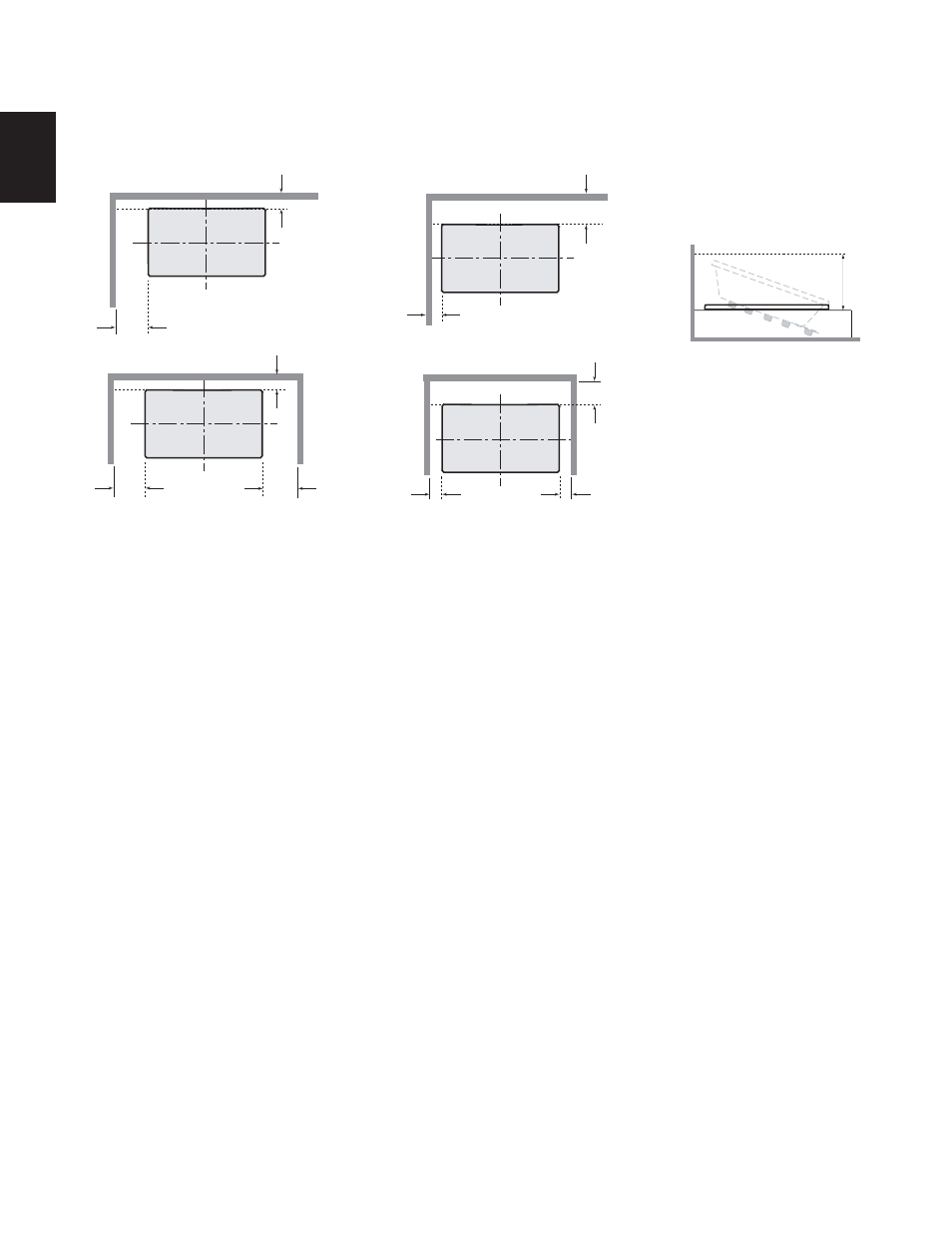

INSTALLATION CLEARANCE RECOMMENDATIONS
The installation clearance recommendations below are to ensure that installers have enough space to maneuver and
insert tub. The Designer/Luxury line whirlpool tubs have electrical, plumbing and lighting systems installed. Do not
lift the bath by the plumbing or wiring at any time; handle by the shell only.
TWO WALL INSTALLATION
THREE WALL INSTALLATION
TUB
CUTOUT
TUB
CUTOUT
TUB
CUTOUT
TUB
CUTOUT
MINIMUM VERTICAL CLEARANCE
FOR INSTALLER TO POSITION TUB
48"
32"
32"
3"
3"
32"
32"
32"
3"
10"
10"
