Cetra® 536 Plus Whirlpool Bath w/Integral Skirt
Model: BP99, BP93
Installation Notes
Refer to installation instructions included with fi xture before beginning installation.
Please confi rm product availability and specifi cations before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Ordering Information
Product Code:
BP99 Cetra® 536 Plus Whirlpool Bath
with Integral Skirt Right Hand
BP93 Cetra® Plus Whirlpool Bath with
Integral Skirt Left Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit: #X559
Rotary Drain Kit, 26” Cable: #8730
TheraPro™ Jet Rings Kit: #D095
AccuPro™ Jet Rings Kit (3 Req’d): #P556
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(845) – Oil Rubbed Bronze
Technical Specifi cations
Dimensions
60” L x 36” W x 21-1/4” H
(1524 mm) L x (914 mm) W x (540 mm) H
Drain/Overfl ow
A: 18-1/2” ( 470 mm) B: 9” ( 229 mm)
Cutout
Not Applicable
Total Weight
742 lb (337 kg) / 50 lb/sq. ft. (242 kg/m 2 )
Operating Gallonage
48 U.S. Gal. (181 Liters)
Max. 55 U.S. Gal. (208 Liters)
Product Weight
92 lb (42 kg)
Skirt Mounting
Integral
Electrical Specifi cations
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater(Standard)
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000
9"
*60"
36"
17-3/8"
12" x 4"*
(Left hand shown. Right hand is mirror image.)
© Jacuzzi Whirlpool Bath • 14880 Monte Vista Avenue • Chino • CA • 91710 • www.jacuzzi.com
L
1"
H
W
SIDE VIEW END VIEW
(Suction
Heater)
#FR29 07/07
DRAIN/OVERFLOW
A
B

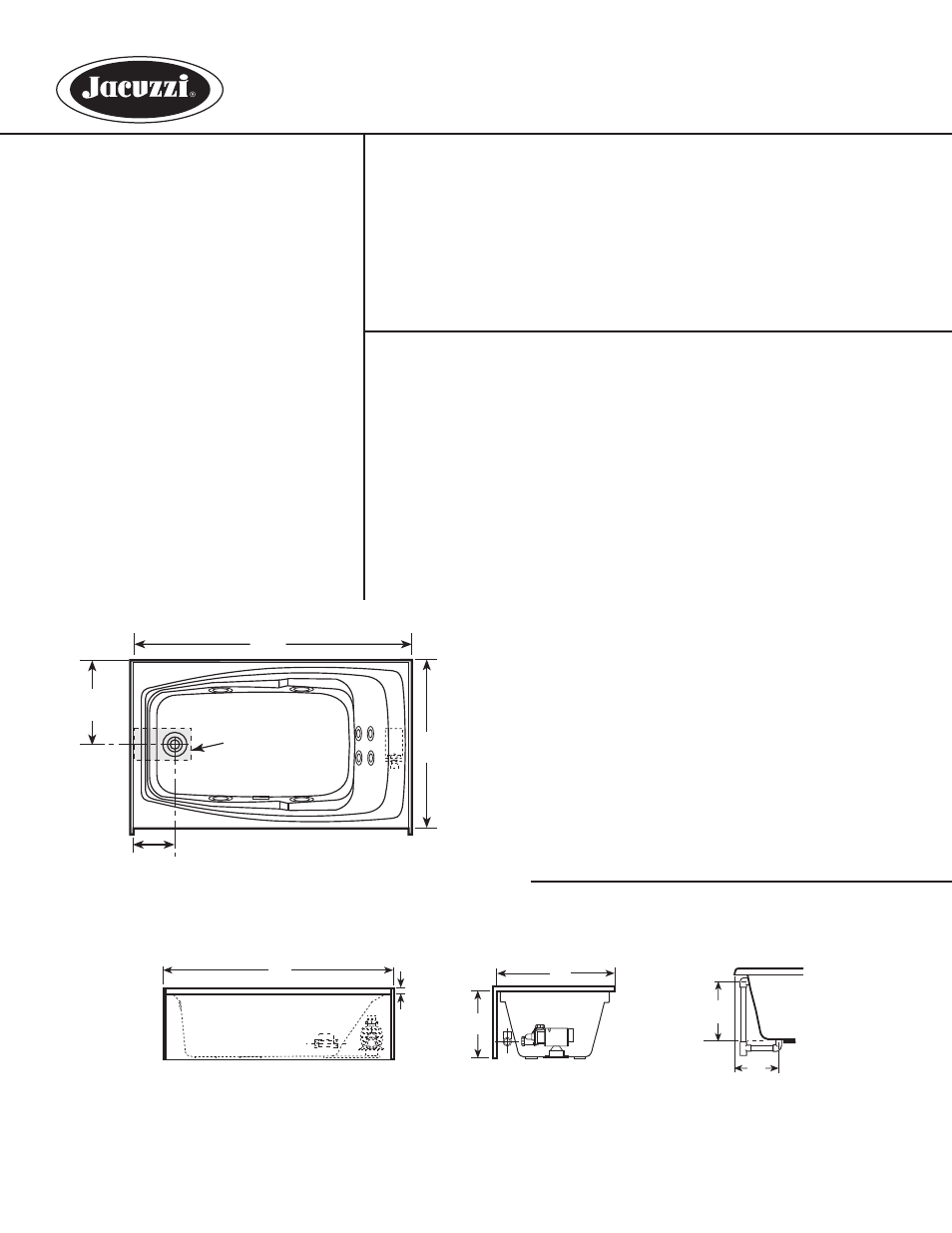

Product Shown: Cetra® 536 Plus Whirlpool Bath with Integral Skirt Left Hand Model: BP93
* Measurements inside unit represent cutout in fl oor to allow for drain/overfl ow.
