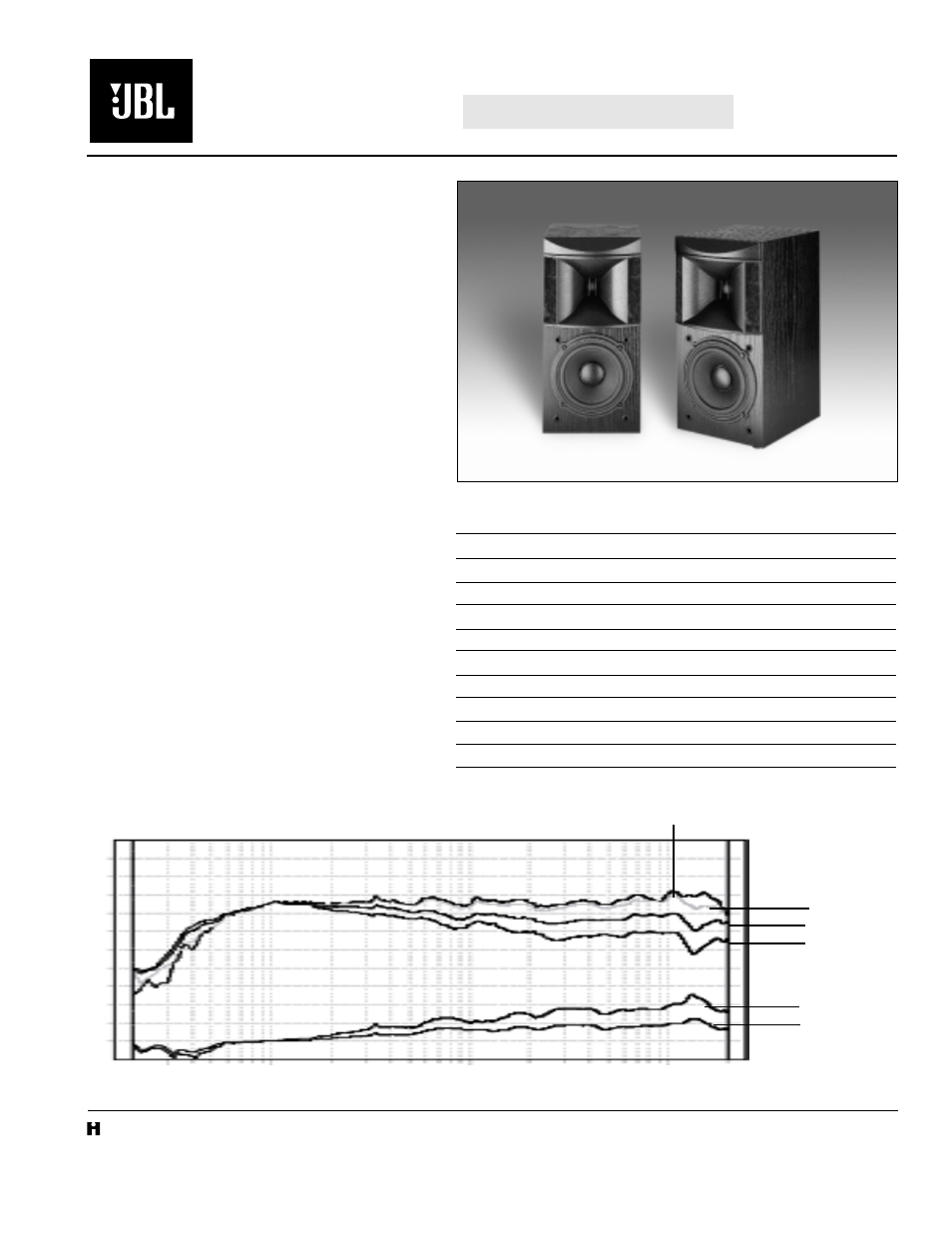

JBL HT5 - Manual

Key Features
◗ Design goal: To bring the thrill of live
performance and cinema sound to the small
room and home environments by calling on
JBL’s professional engineering leadership.
◗ Pure titanium high frequency driver.
◗ Bi-radial constant directivity horn - 120°.
◗ Cast aluminum 5.25" woofer with Heat-Scape TM
motor structure.
◗ Straight-Line Single Path TM (SSP) crossover
Network.
◗ FreeFlow TM flared rear port.
Description
◗ 2-way 5.25” vertical loudspeaker.
Frequency Response
JBL SIS Products Group: Tel 818-830-8757 Fax 818-891-6894
8500 Balboa Boulevard, Northridge, CA 91329
250 Crossways Park Drive, Woodbury, NY 11797
A Harman International Company
Frequency Response 80 Hz – 18 kHz (+/- 2dB)
Sensitivity 89 dB @ 2.83 Volts/1 Meter
Recommended Maximum Amplifier Power 150 Watts
Nominal Impedance 8 Ohms
High Frequency Transducer 1” Titanium Dome with Bi-Radial Horn
Crossover Frequency 1400 Hz
Low Frequency Transducer 5.25”
Weight 25 lbs / 11.4 kg
Dimensions (H x W x D) 20” x 6.81” x 11.13”
508mm x 173mm x 283mm
On Axis Response
Listening Window
(+/- 30 degrees Horizontal,
+/- 10 degrees Vertical)
Early Reflections
Total Sound Power
Directivity Index
Early Reflection Directivity Index.
100.0
95.0
90.0
85.0
80.0
75.0
70.0
65.0
60.0
55.0
50.0
30.0 100.0 1000.0 10000.0
log frequency Hz
Specifications
Quick Spec
HT5
