Nova® 636 Whirlpool Bath with Integral Skirt
Model: H535, H534
Nova® 636 Bath with Integral Skirt
Model: H582, H536
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITH-
OUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.
Ordering Information
Product Code:
H535 Nova® 636 Whirlpool Bath with
Integral Skirt Right Hand
H534 Nova® 636 Whirlpool Bath with
Integral Skirt Left Hand
H582 Nova® 636 Bath with Integral
Skirt Right Hand
H536 Nova® 636 Bath with Integral
Skirt Left Hand
• Right and Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
HTC Jet Trim Kit: #D095
BMH Jet Trim Kit: #J869
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifications
Dimensions
72” L x 36” W x 19” H
(1829 mm) L x (914 mm) W x (483 mm) H
Drain/Overflow
A: 14-5/8” (372 mm) B: 9-3/8” (238 mm)
Cutout
Not Applicable
Total Weight
H535, H534: 824 lb (374 kg) / 46 lb/sq. ft. (224 kg/m 2 )
H582, H536: 796 lb (361 kg) / 44 lb sq. ft. (216 kg/m 2 )
Operating Gallonage
56 U.S. Gal. (212 Liters)
Product Weight
H535, H534: 108 lb (49 kg)
H582, H536: 80 lb (36 kg)
Skirt Mounting
Integral
Electrical Specifications Models H535, H534 only
Requires a dedicated GFCI protected separate circuit.
Motor/Pump: 120 VAC, 15 AMP, 60 Hz.
RapidHeat™: 120 VAC, 15 AMP, 60 Hz.
Heater (Optional) Models H535, H534 only
Requires a dedicated GFCI protected separate circuit.
RapidHeat™: P/N S750000

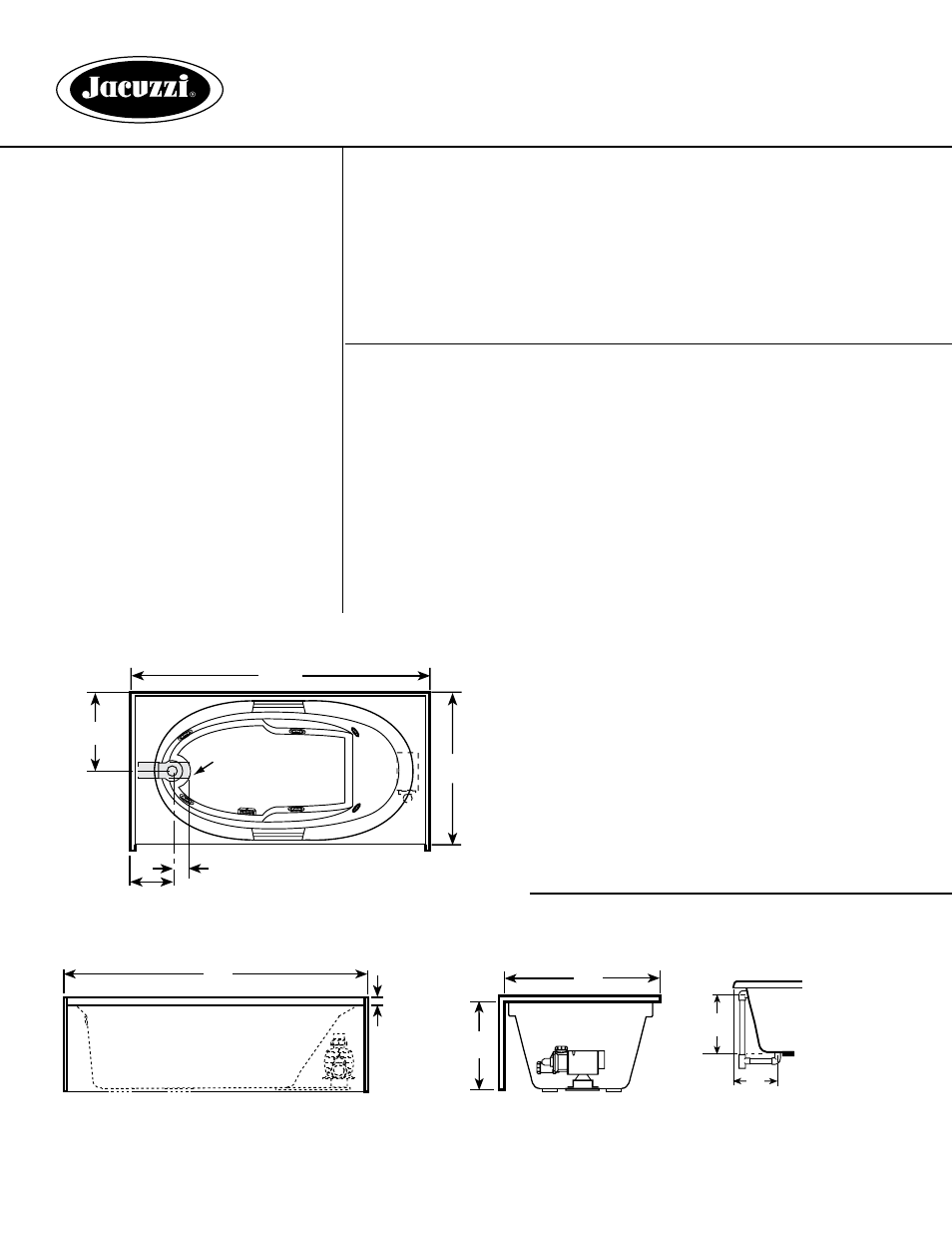

*72"
36"
17-7/8"
2"
10" x 4"*
10-1/8"
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
L
1"
H
W
SIDE VIEW END VIEW
#FR90 12/06
DRAIN/OVERFLOW
A
B
Product Shown: Nova
®
636 Whirlpool Bath with Integral Skirt Left Hand Model: H534
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
