Nova™ 5 Pure Air® II Bath
Model: EA00
Installation Notes
Refer to installation instructions included with fixture before beginning installation.
Please confirm product availability and specifications before commencing with any
installation work.
PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Electrical Components and Electrical Specifications do not apply to non-jetted baths.
Ordering Information
Product Code:
EA00 Nova® 5 Pure Air® II Bath
Left Hand
• Left Hand Drain Location
• Accessories / Hardware:
Trip-Lever Drain Kit #X559
Rotary Drain Kit, 26” Cable #8730
• Trim Kit Finishes Available:
(827) – Chrome
(898) – Brushed Chrome
(815) – Satin Nickel
(829) – Bright Brass
(805) – Platinum
(826) – Brushed Nickel
(849) – Oil Rubbed Bronze
Technical Specifications
Dimensions
60” L x 42” W x 18-1/2” H
(1524 mm) L x (1067 mm) W x (470 mm) H
Drain/Overflow
A: 14-3/4” (375 mm) B: 8-1/2” (216 mm)
Cutout
58” x 40” (1473 mm x 1016 mm)
Total Weight
795 lb (361 kg )/ 45.4 lb/ft 2 (222 kg/m 2 )
Operating Gallonage
46 U.S. Gal. (174 Liters)
Min. 35 U.S. Gal. (133 Liters)
Max. 54 U.S. Gal. (204 Liters)
Product Weight
97 lb (44 kg)
Skirt Mounting
Optional, U-Frame
Electrical Specifications
Requires a dedicated GFCI protected separate circuit.
Blower: 120 VAC, 15 AMP, 60 Hz.
Heater
No water heater is available on this unit. Blower has integral air heater.

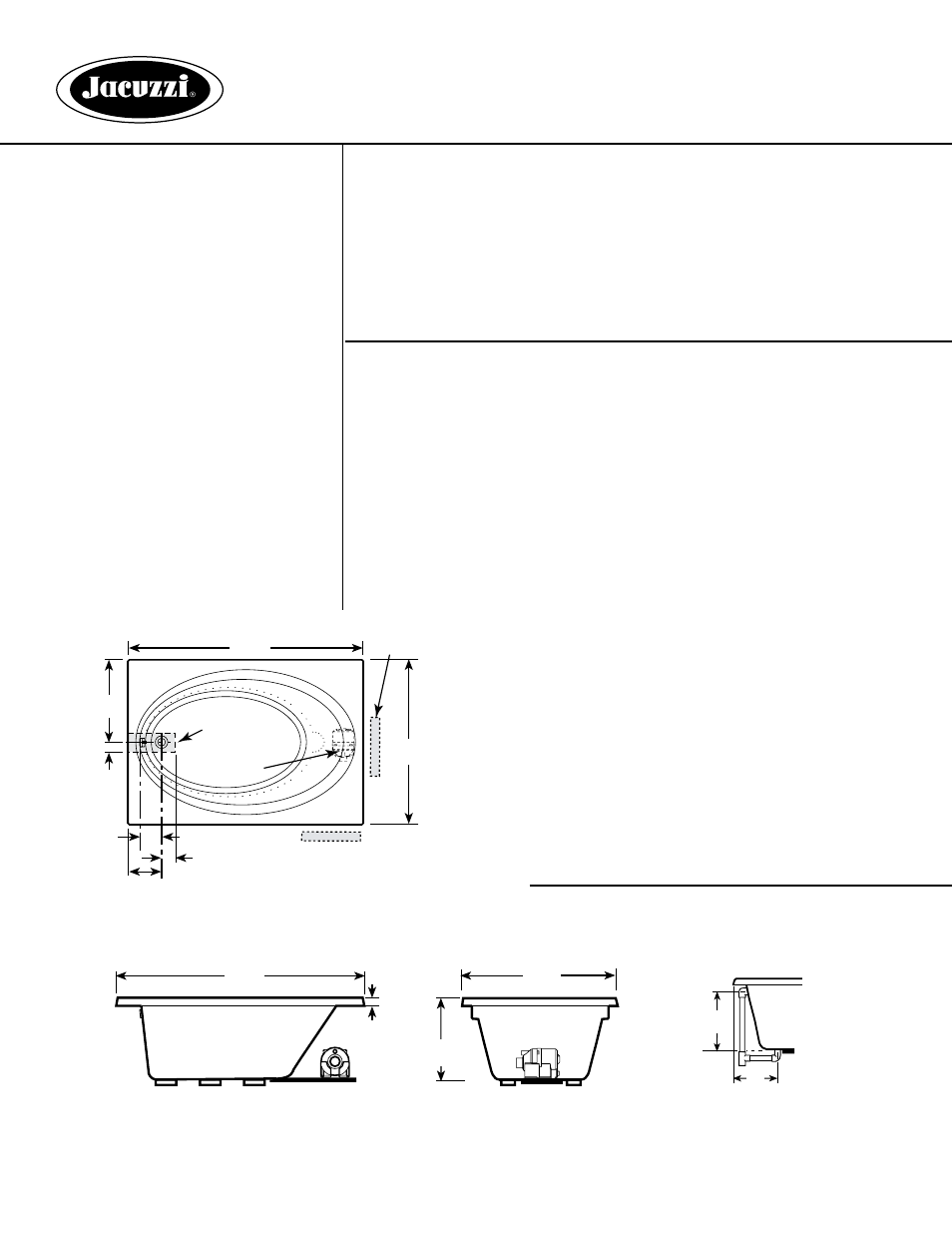

NOVA® 5, LEFT HAND AIR BATH
*60"
21"
42"
2"
11" x 4"
Blower
12" H x 18" L
Service Access
Opt. Service Access
2''
8-1/2''
5-3/8''
© Jacuzzi Whirlpool Bath • 14801 Quorum Drive • Dallas • Texas • 75254 • www.jacuzzi.com
NOVA® 5, RIGHT HAND PURE AIR II BATH
END VIEW
18-1/2"
42"
SIDE VIEW
60"
2"
(51 mm)
(Blower)
#FR00 12/06
DRAIN/OVERFLOW
A
B
Product Shown: Nova® 5 Pure Air II Bath Left Hand Model: EA00
* Measurements inside unit represent cutout in floor to allow for drain/overflow.
Minimum Service Access dimensions given.
